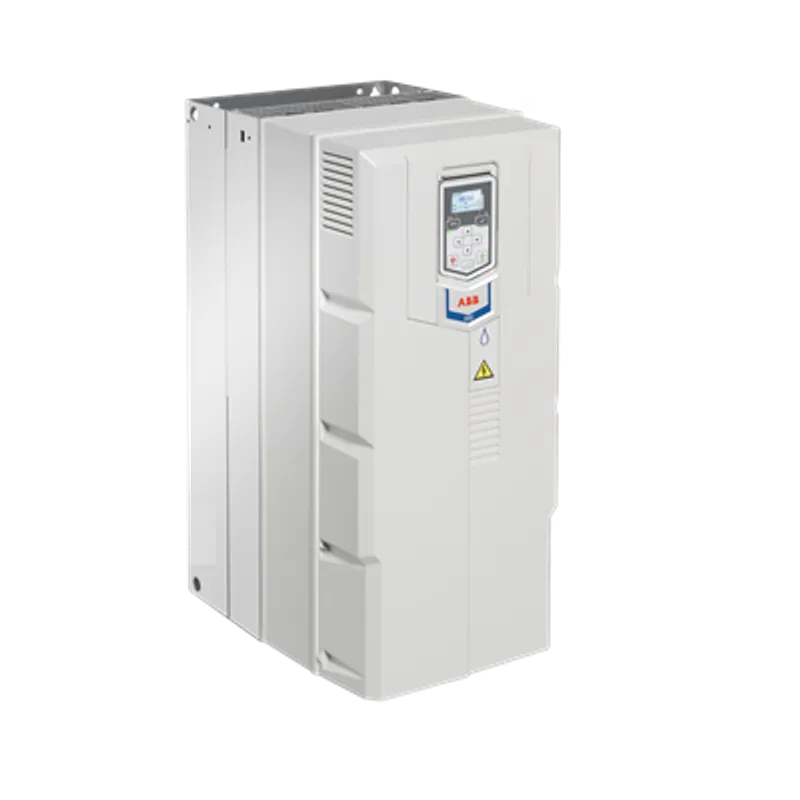

ABB ACQ531-01-293A-4+0J404
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Wall-mounted drive for water and wastewater |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 62.8 kg |
Shipping & availability
When can ACQ531-01-293A-4+0J404 be shipped?
ACQ531-01-293A-4+0J404 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ACQ531-01-293A-4+0J404 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ACQ531-01-293A-4+0J404 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ACQ531-01-293A-4+0J404, subject to availability and destination.
The ACQ531-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in simple pump application functionality. Usability is further enhanced with the optional intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth® control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ531-01 variant comes in an IP20 enclosure as standard and can be installed on the wall.
Specifications
Specifications
| Customs Tariff Number | 85044099 |
| HS Code | 850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters |
| Invoice Description | ACQ531-01-293A-4+0J404 PN: 160kW, IN: 293A |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Selling Unit of Measure | piece |
| Product Net Weight | 62.8 kg |
| Product Net Depth / Length | 393 mm |
| Product Net Height | 680 mm |
| Product Net Width | 300 mm |
| Package Level 1 Depth / Length | 1160 mm |
| Package Level 1 Height | 650 mm |
| Package Level 1 Width | 490 mm |
| Package Level 1 Units | 1 carton |
| Number of Phases | 3-phase |
| Degree of Protection | IP20 |
| Enclosure Type NEMA | Open Type |
| Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R8 |
| Input Voltage (Uin) | 380 ... 480 V |
| Mounting Type | Wall-mounted |
| Output Current, Normal Use (In) | 293 A |
| Output Current, Light-Overload Use (ILD) | 278 A |
| Output Power, Normal Use (Pn) | 160 kW |
| Output Power, Light-Overload Use (PLD) | 160 kW |
| Efficiency Level | IE2 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| UNSPSC | 39122001 |
