ABB ACH580-BCR-273A-2+B058
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | HVAC packaged drive with e-clipse bypass and circuit breaker disconnect US |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0 kg |
Shipping & availability
When can ACH580-BCR-273A-2+B058 be shipped?
ACH580-BCR-273A-2+B058 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ACH580-BCR-273A-2+B058 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ACH580-BCR-273A-2+B058 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ACH580-BCR-273A-2+B058, subject to availability and destination.

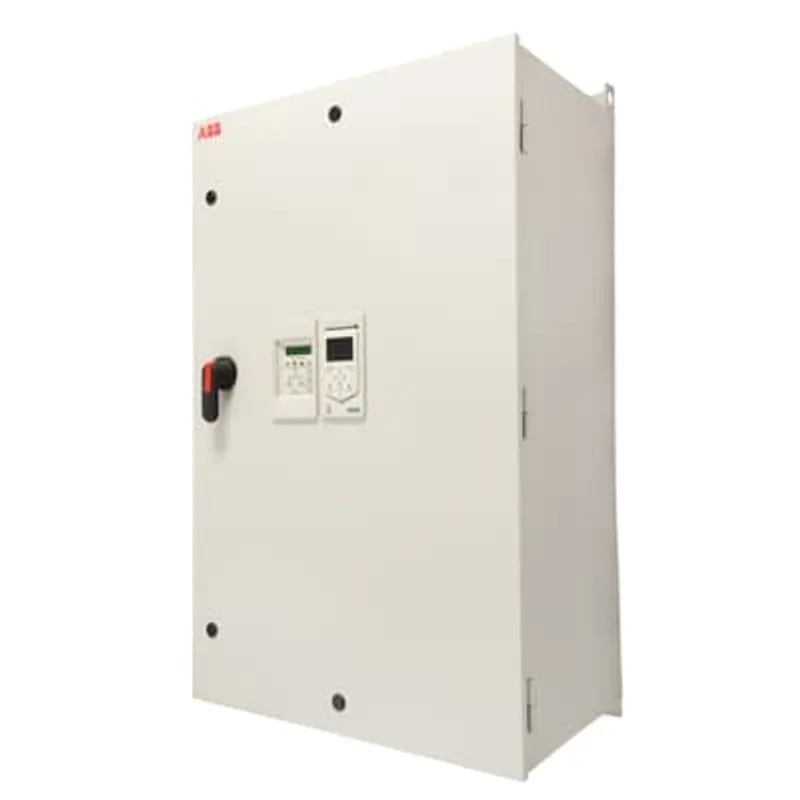

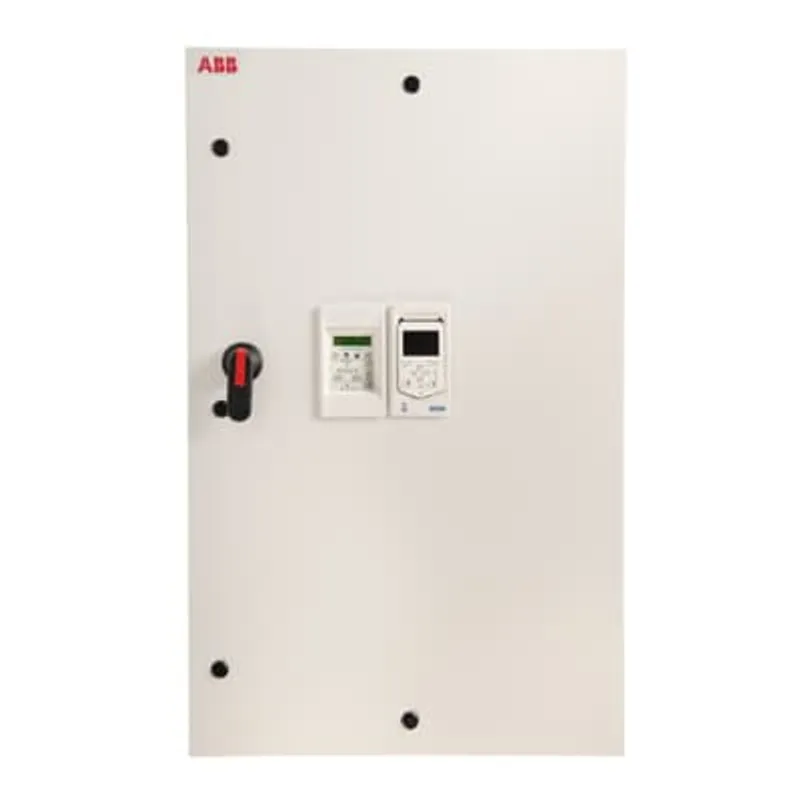

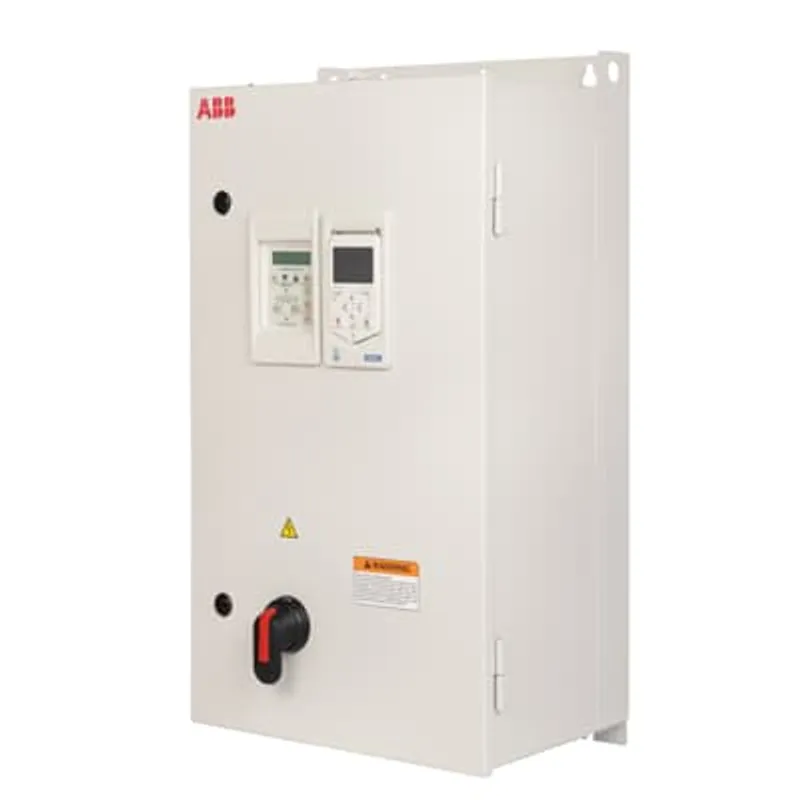

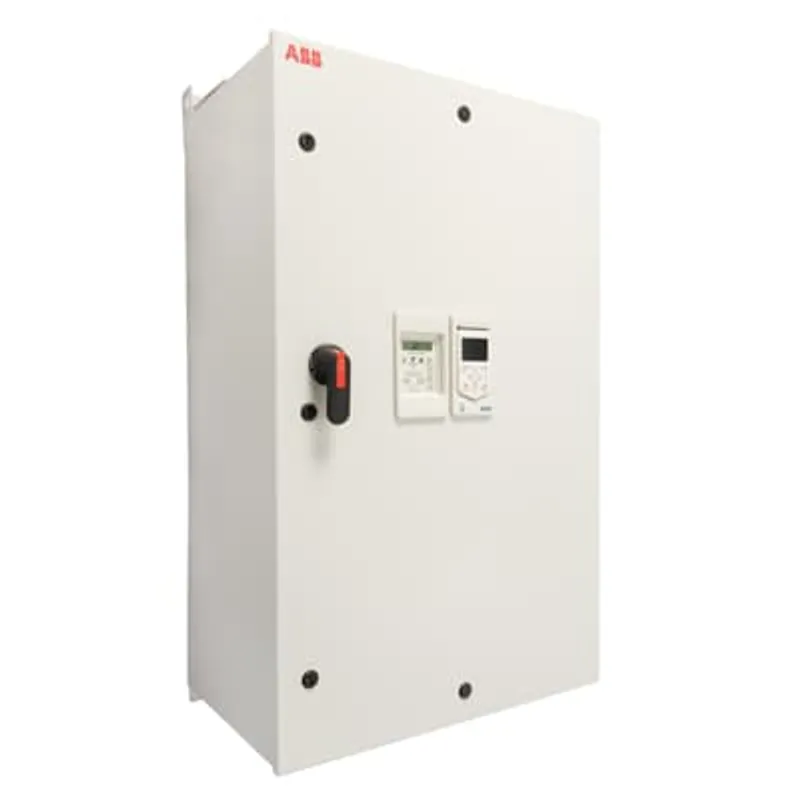

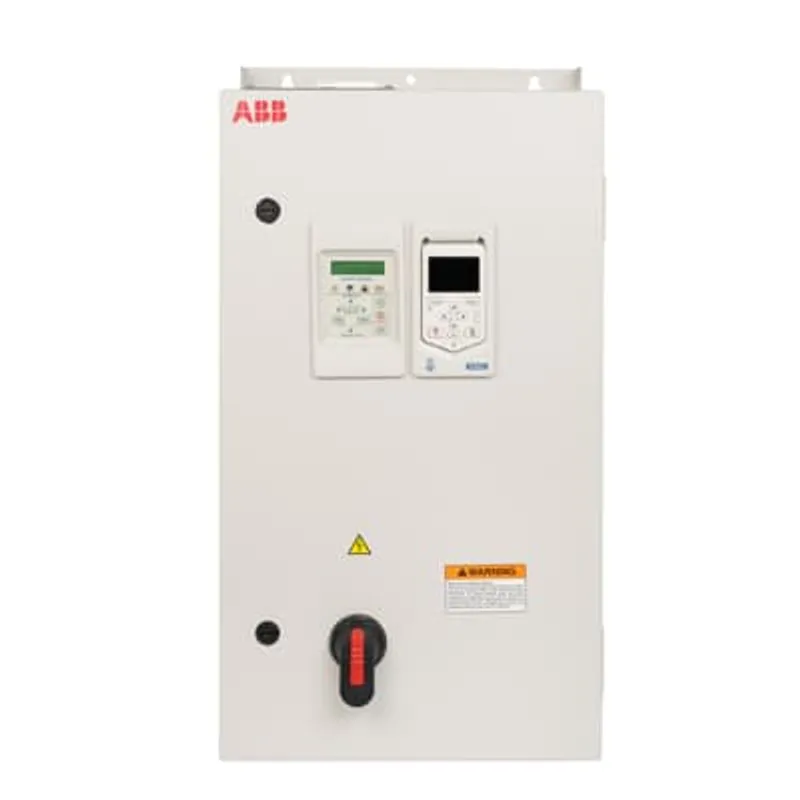

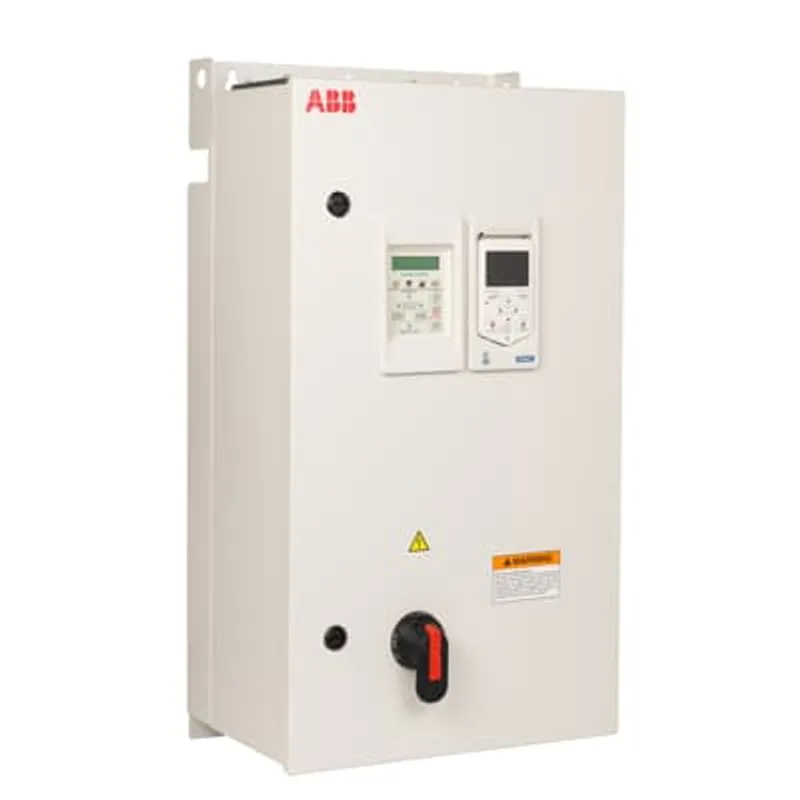

The ACH580 with ABB E-Clipse bypass has an integrated UL (NEMA) Type 1, 12 or 3R enclosure with a bypass motor starter and is available from 1 to 350 hp at 230/460/575 V. The ACH580 with ABB E-Clipse bypass provides an input disconnect switch or circuit breaker with door mounted and interlocked switch (padlockable in the OFF position), a bypass starter, electronic motor overload protection, a door mounted control panel with graphical display for local control, provisions for external control connections, and serial communications capability
Specifications
Specifications
| Customs Tariff Number | 85044080 |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Selling Unit of Measure | piece |
| Product Net Weight | 0 kg |
| Number of Phases | 3-phase |
| Enclosure Type NEMA | Type3R |
| Frequency (f) | 50/60 Hz |
| Input Voltage (Uin) | 208 … 240 V |
| Output Current, Light-Overload Use (UL) | 273 A |
| Output Power, Light-Overload Use (UL) | 100 Hp |
