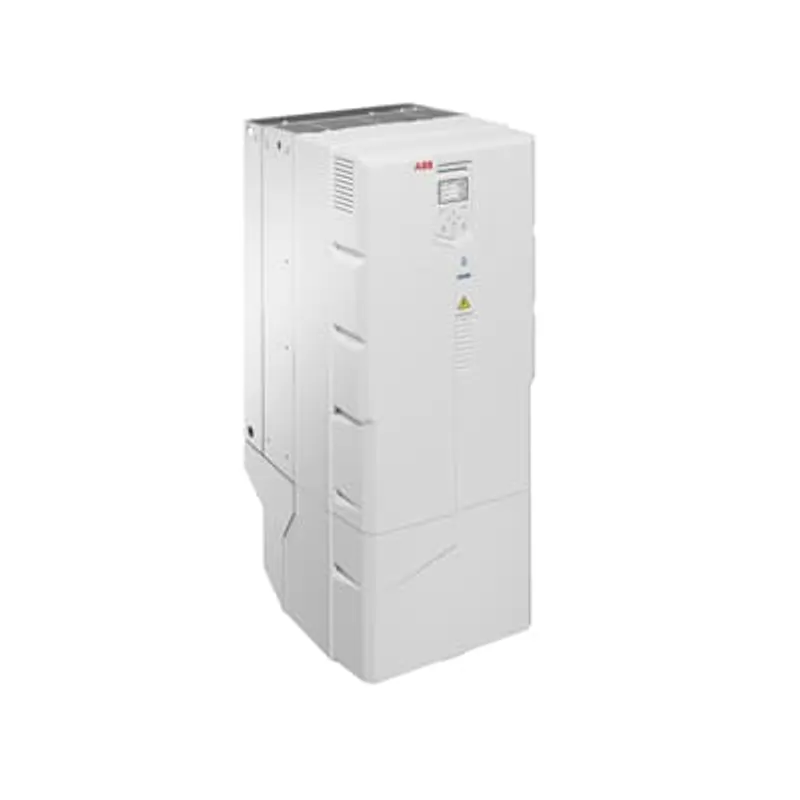

ABB ACH580-01-430A-4
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Wall-mounted drive for HVAC |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 98 kg |
Shipping & availability
When can ACH580-01-430A-4 be shipped?
ACH580-01-430A-4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ACH580-01-430A-4 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ACH580-01-430A-4 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ACH580-01-430A-4, subject to availability and destination.
The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth® capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Specifications
Specifications
| Customs Tariff Number | 85044099 |
| HS Code | 850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters |
| Invoice Description | ACH580-01-430A-4 PN: 250kW, IN: 430A |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Selling Unit of Measure | piece |
| Product Net Weight | 98 kg |
| Product Net Depth / Length | 418 mm |
| Product Net Height | 955 mm |
| Product Net Width | 380 mm |
| Package Level 1 Units | 0 carton |
| Number of Phases | 3-phase |
| Degree of Protection | IP21 |
| Enclosure Type NEMA | Type1 |
| Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R9 |
| Input Voltage (Uin) | 380 … 480 V |
| Mounting Type | Wall-mounted_NO UNIT$ |
| Output Current, Normal Use (In) | 430 A |
| Output Current, Light-Overload Use (ILD) | 400 A |
| Output Current, Heavy-Duty Use (IHD) | 363 A |
| Output Power, Normal Use (Pn) | 200 kW |
| Output Power, Light-Overload Use (PLD) | 200 kW |
| Output Power, Heavy-Duty Use (PHD) | 200 kW |
| Efficiency Level | IE2 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| UNSPSC | 39122001 |
