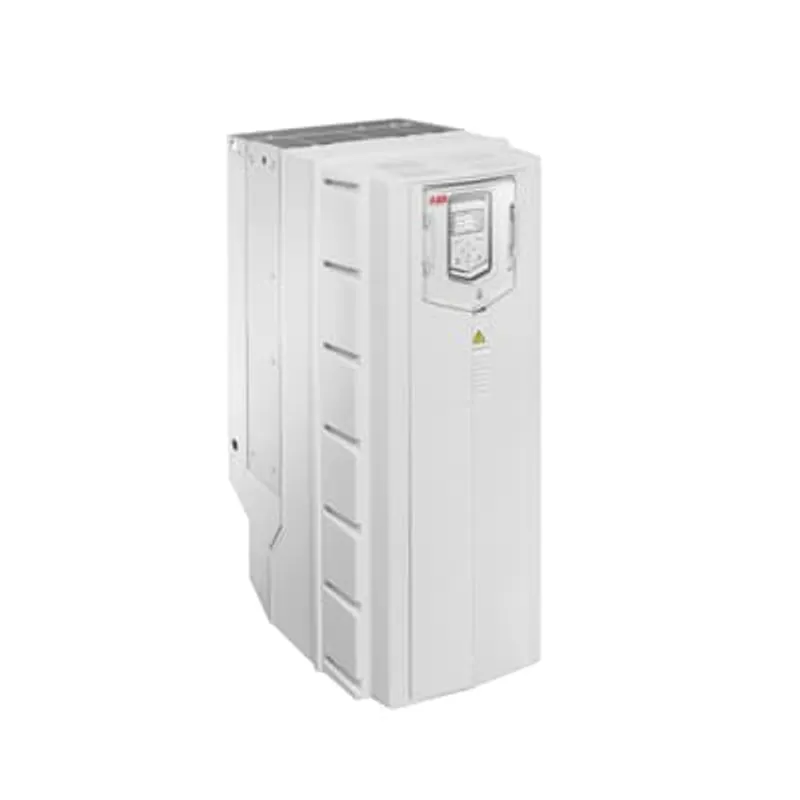

ABB ACH580-01-246A-4+B056
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Wall-mounted drive for HVAC |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 77 kg |
Shipping & availability
When can ACH580-01-246A-4+B056 be shipped?
ACH580-01-246A-4+B056 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ACH580-01-246A-4+B056 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ACH580-01-246A-4+B056 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ACH580-01-246A-4+B056, subject to availability and destination.
ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air- handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth® capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Specifications
Specifications
| Customs Tariff Number | 85044086 |
| HS Code | 850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters |
| Invoice Description | ACH580-01-246A-4+B056 PN: 132 kW, IN: 246 A |
| Made To Order | Yes |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Selling Unit of Measure | piece |
| Product Net Weight | 77 kg, 169.756 lb |
| Product Net Depth / Length | 452.00 mm, 17.795 in |
| Product Net Height | 965.00 mm, 37.992 in |
| Product Net Width | 300.00 mm, 11.811 in |
| Package Level 1 Depth / Length | 1145.00 mm, 45.079 in |
| Package Level 1 Height | 630.00 mm, 24.803 in |
| Package Level 1 Width | 485.00 mm, 19.094 in |
| Package Level 1 Units | 1 case |
| Number of Phases | 3-phase |
| Degree of Protection | IP55 |
| Enclosure Type NEMA | Type12 |
| Operating Humidity (RHamb) | 95 |
| Multiple Battery Information | Lithium Coin, CR2032, 220 mAh, 3 V, 1 pc, 3 g |
| Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R8 |
| Input Voltage (Uin) | 380 ... 480 V |
| Mounting Type | Wall-mounted |
| Communication Protocol | BACNET, CAN, DeviceNet, EtherNet/IP, LON, MODBUS, Other Bus Systems, PROFIBUS, PROFINET IO, TCP/IP |
| Number of Hardware Interfaces | Industrial Ethernet 0, Other 2, Parallel 2, PROFINET 0, RS-232 0, RS-422 0, RS-485 1, Serial TTY 0, USB 1 |
| Includes | With control unit, Without optical interface, With PC connection |
| Analog Inputs | 2 |
| Analog Outputs | 2 |
| Number of Digital In/Outputs | 6/3 |
| Output Current, Normal Use (In) | 246 A |
| Output Current, Light-Overload Use (ILD) | 234 A |
| Output Current, Heavy-Duty Use (IHD) | 206 A |
| Output Power, Normal Use (Pn) | 132 kW |
| Output Power, Light-Overload Use (PLD) | 132 kW |
| Output Power, Heavy-Duty Use (PHD) | 110 kW |
| Power Consumption (@Pcons) | 3131 W |
| Apparent Power Output | 170 kV·A |
| Efficiency Level | IE2 |
| Standby Loss | 47 W |
| Temperature Rating | Maximum 40 °C, Minimum -15 °C |
| Output Current, Heavy-Duty Use (UL) | 180 A |
| Output Current, Light-Overload Use (UL) | 240 A |
| Output Power, Light-Overload Use (UL) | 200 Hp |
| Declaration of Conformity - CE | ACS580, ACH580 and ACQ580 EU DoC |
| REACH Date | 20250905 |
| REACH Declaration | REACH SVHC-250 declaration |
| REACH Information | True - contains substances > 0.1 mass percentage |
| RoHS Date | 20240508 |
| RoHS Declaration | ACS580, ACH580 and ACQ580 EU DoC |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 1b7d3fcb-8dfc-4964-9a9a-bec89b35caf1 Finland |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| ETIM 9 | EC001857 - Frequency converter =< 1 kV |
| ETIM 10 | EC001857 - Frequency converter =< 1 kV |
| UNSPSC | 39122001 |
