ABB CESWDM3709T – 7.5HP,3500RPM,3PH,60HZ,213TC,3734M,
MPN: CESWDM3709T · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Paint Free |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can CESWDM3709T be shipped?
CESWDM3709T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CESWDM3709T in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CESWDM3709T and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CESWDM3709T, subject to availability and destination.
Washdown Motor 7.5 Hp 230 V (CESWDM3709T)
Specifications
Ordering
| Catalog Number | CESWDM3709T |
| Brand / Label | Baldor-Reliance |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015220 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Duty Time | 60 Min |
| Efficiency Level | IE3, Not Regulated / Exempt, Premium Efficiency (NEMA 12-12) |
| Insulation Class | F |
| NEMA Design Code | A A |
| Number of Phases | 3-phase |
| Number of Poles | 2P |
| Number of Speeds | Single Speed |
| Power Factor | 93 % |
| Rated Efficiency | 91 % |
| Service Factor | 1.15 |
| Type of Duty | Continuous |
| Starting of Motor | Direct On Line |
| Synchronous Speed (vsyn) | 3600 r/min |
| Output Power | 7.5 Hp |
Mechanical
| Drive End Flange Type | C-Face |
| Enclosure Type | TEFC |
| Frame Material | Stainless Steel |
| Motor Frame Size | 213TC |
| Motor Base Type | Foot Mounted |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 16.25 in |
| Product Net Weight | 134 lb |
| Product Net Width | 16.625 in |
| Dimension Diagram | 37LYH888 |
Certificates and Declarations
| Certification Agency | CURUSEEV, NEMA_PREMIUM, UR |
| IDEA Granular Category Code (IGCC) | 1328 >> Multi phase motor AC |
| ETIM 7 | EC001851 - Electric motor |
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
More ABB parts
Available on request3HP,3470RPM,3PH,60HZ,143TC,3546M,TEMPN: CESWDM3559T · ABB
Price on request
Request a quote
Available on request3HP,1760RPM,3PH,60HZ,182TC,3632M,TEMPN: CESWDM3611T · ABB
Price on request
Request a quote
Available on request5HP,3480RPM,3PH,60HZ,184TC,3636M,TEMPN: CESWDM3613T · ABB
Price on request
Request a quote
Available on request5HP,1750RPM,3PH,60HZ,184TC,3642M,TEMPN: CESWDM3615T · ABB
Price on request
Request a quote
Available on request10HP,3500RPM,3PH,60HZ,215TC,3744M,TMPN: CESWDM3711T · ABB
Price on request
Request a quote
Available on request10HP,1770RPM,3PH,60HZ,215TC,3752M,TMPN: CESWDM3714T · ABB
Price on request
Request a quote
Available on request2HP,1760RPM,3PH,60HZ,56C,3540M,TENVMPN: CESWDNM3558-5 · ABB
Price on request
Request a quote

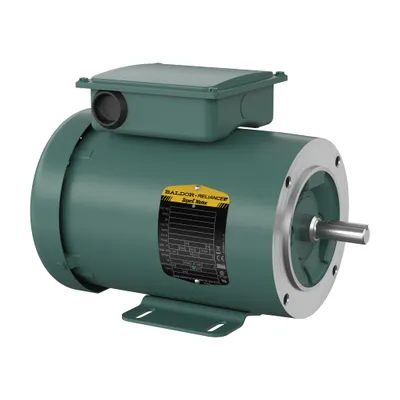

Available on request1HP,1770RPM,3PH,60HZ,56C,3520M,TEFCMPN: CEUHM3546 · ABB
