Available on request
.75HP,3450RPM,3PH,60HZ,56YZ,3416M,O
MPN: JSM3111 · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | White Washdown |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can JSM3111 be shipped?
JSM3111 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up JSM3111 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for JSM3111 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for JSM3111, subject to availability and destination.
Pump Motor 0.750.000 Hp 208 V (JSM3111)
Specifications
Ordering
| Catalog Number | JSM3111 |
| Brand / Label | Baldor-Reliance |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015100 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Duty Time | 60 Min |
| Efficiency Level | Not Regulated / Exempt, Undefined Efficiency |
| Insulation Class | B |
| NEMA Design Code | B |
| Number of Phases | 3-phase |
| Number of Poles | 2P |
| Number of Speeds | Single Speed |
| Power Factor | 66 % |
| Rated Efficiency | 74 % |
| Service Factor | 1.50 |
| Type of Duty | Continuous |
| Starting of Motor | Direct On Line |
| Synchronous Speed (vsyn) | 3600 r/min |
| Output Power | 0.750.000 Hp |
Mechanical
| Drive End Flange Type | Square |
| Enclosure Type | ODP |
| Frame Material | Steel |
| Motor Frame Size | 56YZ |
| Motor Base Type | No Mounting |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 9.375 in |
| Product Net Weight | 24 lb |
| Product Net Width | 10.813 in |
| Dimension Diagram | 34LYL408 |
Certificates and Declarations
| Certification Agency | CURUS, UR |
| IDEA Granular Category Code (IGCC) | 1320 >> Pump motor AC |
| ETIM 7 | EC001851 - Electric motor |
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
More ABB parts

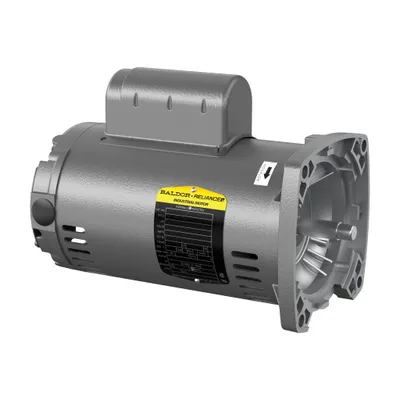

Available on request1HP,3450RPM,1PH,60HZ,56Y,3424L,OPENMPN: JSL525A · ABB
Price on request
Request a quote
Available on request.5HP,3450RPM,3PH,60HZ,56YZ,3413M,OPMPN: JSM3107 · ABB
Price on request
Request a quote

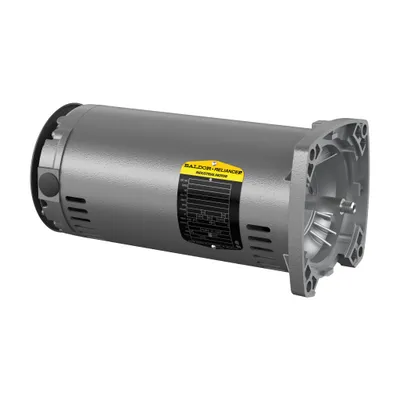

Available on request1HP,3450RPM,3PH,60HZ,56YZ,3420M,OPEMPN: JSM3115 · ABB
