Available on request

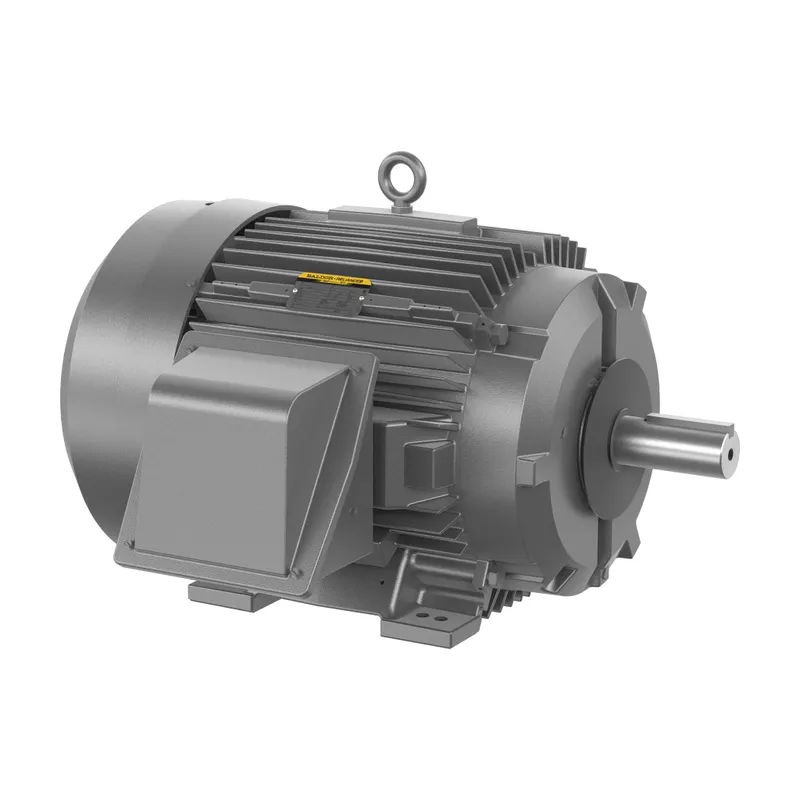

75HP,1780RPM,3PH,60HZ,364T,A36070M,
MPN: ECTM4316T-G · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Shaft grounded |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ECTM4316T-G be shipped?
ECTM4316T-G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ECTM4316T-G in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ECTM4316T-G and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ECTM4316T-G, subject to availability and destination.
Shaft Ground Motors 75 Hp 230 V (ECTM4316T-G)
Specifications
Ordering
| Catalog Number | ECTM4316T-G G |
| Brand / Label | Baldor-Reliance® |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015230 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Efficiency Level | Premium Efficiency (NEMA 12-12) |
| Insulation Class | F |
| NEMA Design Code | B |
| Number of Phases | 3-phase |
| Number of Poles | 4P |
| Number of Speeds | single_speed |
| Power Factor | 86 % |
| Rated Efficiency | 95.40 % |
| Service Factor | 1.15 |
| Type of Duty | Continuous |
| Starting of Motor | Direct on line |
| Synchronous Speed (vsyn) | 1800 r/min |
| Output Power | 75 Hp |
Mechanical
| Drive End Flange Type | Standard |
| Enclosure Type | TEFC |
| Frame Material | Iron |
| Motor Frame Size | 364T |
| Motor Base Type | Foot Mounted |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 25.625 in |
| Product Net Weight | 965 lb |
| Product Net Width | 32.5 in |
Certificates and Declarations
| Certification Agency | CCSAUSEEV |
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
More ABB parts
Available on request60HP,1780RPM,3PH,60HZ,364T,1462M,TEMPN: ECTM4314T · ABB
Price on request
Request a quote
Available on request60HP,1780RPM,3PH,60HZ,364T,A3658M,TMPN: ECTM4314T-5G · ABB
Price on request
Request a quote
Available on request60HP,1780RPM,3PH,60HZ,364T,A3658M,TMPN: ECTM4314T-G-AO · ABB
Price on request
Request a quote
Available on request75HP,1780RPM,3PH,60HZ,364T,A36070M,MPN: ECTM4316T-5G · ABB
Price on request
Request a quote
Available on request100HP,1785RPM,3PH,60HZ,405T,A40064MMPN: ECTM4400T-4G · ABB
Price on request
Request a quote
Available on request60HP,1185RPM,3PH,60HZ,405T,A40064M,MPN: ECTM4403T-5G · ABB
Price on request
Request a quote
Available on request60HP,1185RPM,3PH,60HZ,405T,A40064M,MPN: ECTM4403T-G · ABB
Price on request
Request a quote

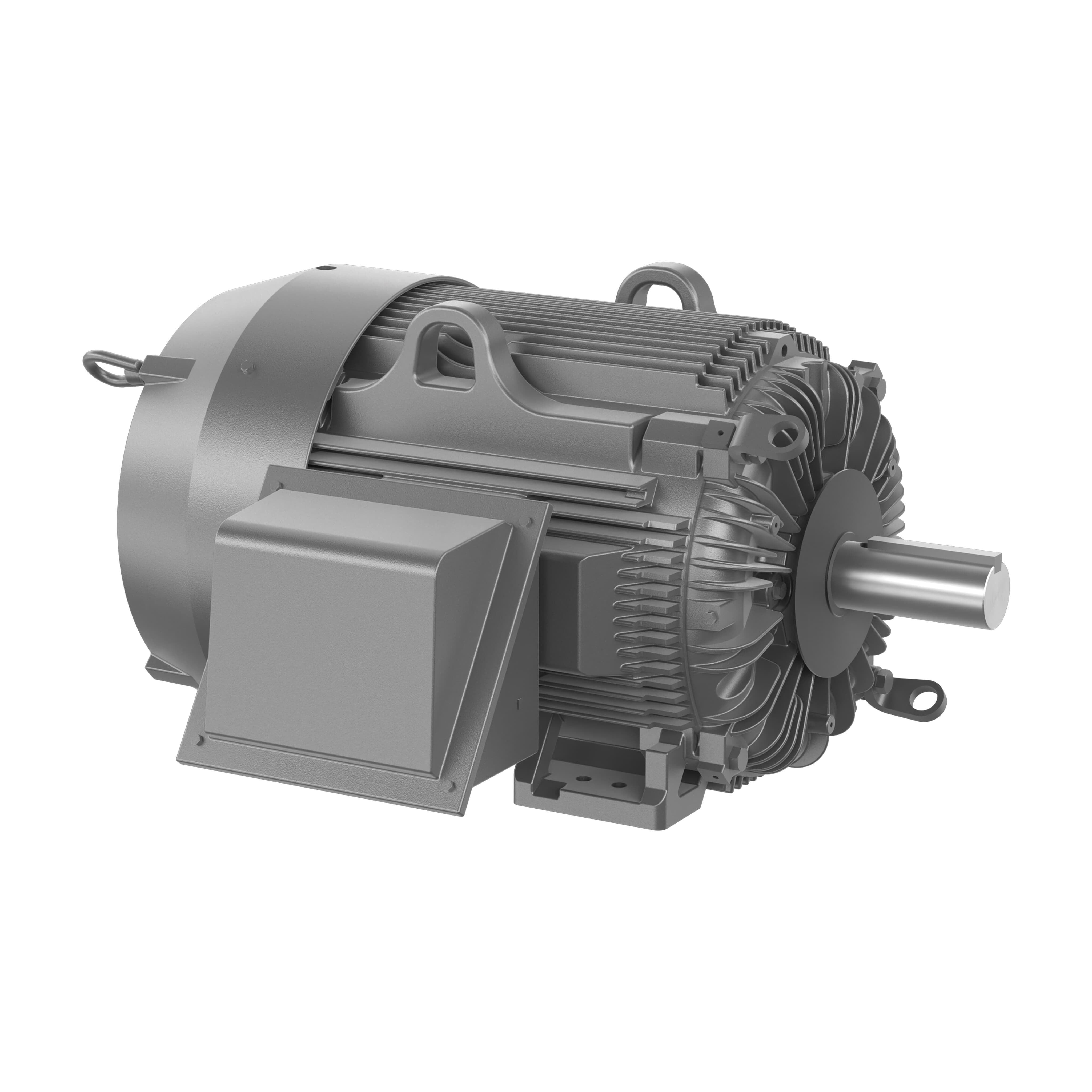

Available on request100HP,1190RPM,3PH,60HZ,444T,A44064MMPN: ECTM4409T-4G · ABB
