Available on request
ABB EFM3770T-G – 7.5HP,1770RPM,3PH,60HZ,213T,0738M,T
MPN: EFM3770T-G · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Shaft grounded |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can EFM3770T-G be shipped?
EFM3770T-G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up EFM3770T-G in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for EFM3770T-G and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EFM3770T-G, subject to availability and destination.
Shaft Ground Motors 7.500 Hp 230 V (EFM3770T-G)
Specifications
Ordering
| Catalog Number | EFM3770T-G G |
| Brand / Label | Baldor-Reliance® |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015220 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Efficiency Level | IE3, Not Regulated / Exempt, Premium Efficiency (NEMA 12-12) |
| Insulation Class | F |
| NEMA Design Code | A A |
| Number of Phases | 3-phase |
| Number of Poles | 4P |
| Number of Speeds | single_speed |
| Power Factor | 80 % |
| Rated Efficiency | 91.7 % |
| Service Factor | 1.15 |
| Type of Duty | Continuous |
| Starting of Motor | Direct on line |
| Synchronous Speed (vsyn) | 1800 r/min |
| Output Power | 7.500 Hp |
Mechanical
| Drive End Flange Type | Standard |
| Enclosure Type | TEFC |
| Frame Material | Iron |
| Motor Frame Size | 213T |
| Motor Base Type | Foot Mounted |
| Mounting Position | F2 |
| Brake Present | No |
Dimensions
| Product Net Height | 0 in |
| Product Net Weight | 198 lb |
| Product Net Width | 0 in |
Certificates and Declarations
| Certification Agency | CURUSEEV, NEMA_PREMIUM |
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
More ABB parts
Available on request10HP,3490RPM,3PH,60HZ,215T,3730M,TEMPN: EFM3711T-G · ABB
Price on request
Request a quote
Available on request15HP,3500RPM,3PH,60HZ,215T,3752M,TEMPN: EFM3713T-G · ABB
Price on request
Request a quote
Available on request10HP,1770RPM,3PH,60HZ,215T,3752M,TEMPN: EFM3714T · ABB
Price on request
Request a quote
Available on request10HP,1770RPM,3PH,60HZ,215T,3752M,TEMPN: EFM3714T-G · ABB
Price on request
Request a quote
Available on request15HP,1175RPM,3PH,60HZ,284T,1046M,TEMPN: EFM4100T · ABB
Price on request
Request a quote
Available on request20HP,1180RPM,3PH,60HZ,286T,1054M,TEMPN: EFM4102T · ABB
Price on request
Request a quote

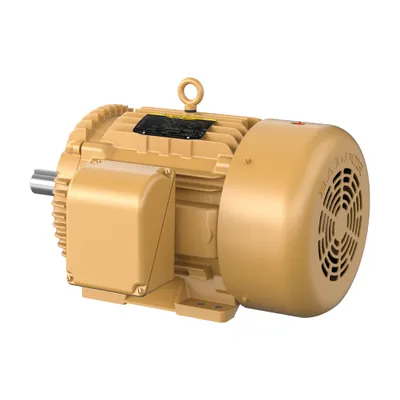

Available on request25HP,1775RPM,3PH,60HZ,284T,1054M,TEMPN: EFM4103T · ABB
