ABB BM3542 – .75HP,1725RPM,3PH,60HZ,56,3420M,TEF
MPN: BM3542 · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Short Series Brake |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can BM3542 be shipped?
BM3542 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BM3542 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BM3542 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BM3542, subject to availability and destination.
Short Series Brake 0.750.000 Hp 208 V (BM3542)
Specifications
Ordering
| Catalog Number | BM3542 |
| Brand / Label | Baldor-Reliance |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015100 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Duty Time | 60 Min |
| Efficiency Level | Not Regulated / Exempt, Undefined Efficiency |
| Insulation Class | B |
| NEMA Design Code | B |
| Number of Phases | 3-phase |
| Number of Poles | 4P |
| Number of Speeds | Single Speed |
| Power Factor | 64 % |
| Rated Efficiency | 75.50 % |
| Service Factor | 1.25 |
| Type of Duty | Continuous |
| Starting of Motor | Direct On Line |
| Synchronous Speed (vsyn) | 1800 r/min |
| Output Power | 0.750.000 Hp |
Mechanical
| Drive End Flange Type | Standard |
| Enclosure Type | TEFC |
| Frame Material | Steel |
| Motor Frame Size | 56 |
| Motor Base Type | Foot Mounted |
| Mounting Position | F1 |
| Brake Present | Yes |
Dimensions
| Product Net Height | 11.25 in |
| Product Net Weight | 31 lb |
| Product Net Width | 10.5 in |
| Dimension Diagram | 34LY3108 |
Certificates and Declarations
| Certification Agency | C UR US, UR |
| IDEA Granular Category Code (IGCC) | 1325 >> General purpose motor AC |
| ETIM 7 | EC001851 - Electric motor |
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
More ABB parts
Available on request.75HP,1725RPM,3PH,60HZ,56,3420M,OPEMPN: BM3112 · ABB
Price on request
Request a quote
Available on request1HP,1725RPM,3PH,60HZ,56,BRAKE,3424MMPN: BM3116 · ABB
Price on request
Request a quote
Available on request.5HP,1725RPM,3PH,60HZ,56,BRAKE,3420MPN: BM3538 · ABB
Price on request
Request a quote

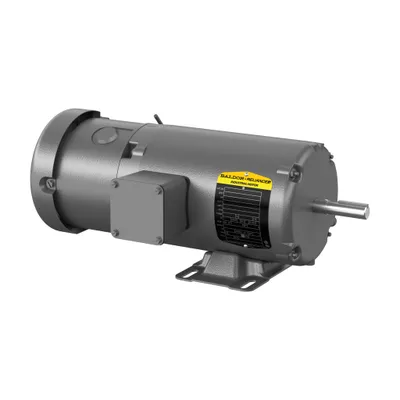

Available on request.5HP,1140RPM,3PH,60HZ,56,BRAKE,3418MPN: BM3539 · ABB
