Home / ABB / ABB 60HP,3550RPM,3PH,60HZ,364HP,1452M,T – Pump Motor 60 Hp 230 V (VHECP4310T)
Available on request

ABB 60HP,3550RPM,3PH,60HZ,364HP,1452M,T – Pump Motor 60 Hp 230 V (VHECP4310T)

MPN: 60HP,3550RPM,3PH,60HZ,364HP,1452M,T · Brand: ABB
Price on request
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

Quick facts

AvailabilityConfirmed on request
CategoryVertical P-base solid shaft
LifecycleActive
Warranty12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 60HP,3550RPM,3PH,60HZ,364HP,1452M,T be shipped?

60HP,3550RPM,3PH,60HZ,364HP,1452M,T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 60HP,3550RPM,3PH,60HZ,364HP,1452M,T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 60HP,3550RPM,3PH,60HZ,364HP,1452M,T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 60HP,3550RPM,3PH,60HZ,364HP,1452M,T, subject to availability and destination.

Pump Motor 60 Hp 230 V (VHECP4310T)

Specifications

Ordering

Catalog NumberVHECP4310T
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015230
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelPremium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles2P
Number of SpeedsSingle Speed
Power Factor91 %
Rated Efficiency95 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)3600 r/min
Output Power60 Hp

Mechanical

Drive End Flange TypeP-Base
Enclosure TypeTEFC
Frame MaterialCast Iron
Motor Frame Size364HP
Motor Base TypeBracket Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height25.625 in
Product Net Weight959 lb
Product Net Width32.5 in
Dimension Diagram617428-035

Certificates and Declarations

Certification AgencyCCSAUSEEV
IDEA Granular Category Code (IGCC)1320 >> Pump motor AC
ETIM 7EC001851 - Electric motor
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide

More ABB parts

ABB 5X5X18LAvailable on requestABB 5X5X18L
MPN: 5X5X18L · ABB
Price on request
Request a quote
ROTOR - CASTAvailable on requestROTOR - CAST
MPN: 600341016S · ABB
Price on request
Request a quote
INNER CAPAvailable on requestINNER CAP
MPN: 608957072R · ABB
Price on request
Request a quote
STATORAvailable on requestSTATOR
MPN: 609382005RC · ABB
Price on request
Request a quote
ABB 63550004-HF – Hose Clamp 80Available on requestABB 63550004-HF – Hose Clamp 80
MPN: 63550004-HF · ABB
Price on request
Request a quote

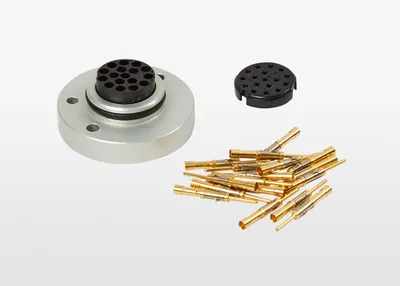

ABB 63550005-HX – SIGNAL CONTACTAvailable on requestABB 63550005-HX – SIGNAL CONTACT
MPN: 63550005-HX · ABB
Price on request
Request a quote

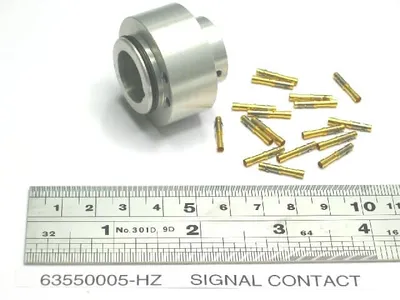

ABB 63550005-HZ – SIGNAL CONTACTAvailable on requestABB 63550005-HZ – SIGNAL CONTACT
