Available on request
5HP,3500//2900RPM,3PH,60HZ,184TC,XP
MPN: CDRX18524T · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | XP Drill Rig Duty |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can CDRX18524T be shipped?
CDRX18524T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CDRX18524T in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CDRX18524T and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CDRX18524T, subject to availability and destination.
Explosion Proof Drill Rig Duty 3 Hp 190 V (CDRX18524T)
Specifications
Ordering
| Catalog Number | CDRX18524T |
| Brand / Label | Baldor-Reliance |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015220 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Duty Time | 60 Min |
| Efficiency Level | Premium Efficiency (NEMA 12-12) |
| Insulation Class | F |
| NEMA Design Code | A A |
| Number of Phases | 3-phase |
| Number of Poles | 2P |
| Number of Speeds | Single Speed |
| Power Factor | 96 % |
| Rated Efficiency | 88.50 % |
| Service Factor | 1.00 |
| Temperature Class | T3C |
| Type of Duty | Continuous |
| Starting of Motor | Direct On Line |
| Synchronous Speed (vsyn) | 3600 r/min |
| Output Power | 3 Hp, 5.000 Hp |
Mechanical
| Drive End Flange Type | C-Face |
| Enclosure Type | TEFC |
| Explosion Proof Group Class | Class I, Group C & D |
| Frame Material | Cast Iron |
| Motor Frame Size | 184TC |
| Motor Base Type | Foot Mounted |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 17.375 in |
| Product Net Weight | 150 lb |
| Product Net Width | 16.5 in |
| Dimension Diagram | 06LYH515 |
Certificates and Declarations
| Certification Agency | CSA EEV, UL, UR |
| IDEA Granular Category Code (IGCC) | 1328 >> Multi phase motor AC |
| ETIM 7 | EC001851 - Electric motor |
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
More ABB parts
Available on request3//2HP,3470//2890RPM,3PH,60//50HZ,1MPN: CDRX18324T · ABB
Price on request
Request a quote
Available on request3HP,3460RPM,3PH,60HZ,182TC,XPFC,F1MPN: CDRX18324T-5 · ABB
Price on request
Request a quote
Available on request3HP,1755//1465RPM,3PH,60HZ,182TC,XPMPN: CDRX18344T · ABB
Price on request
Request a quote
Available on request3HP,1755RPM,3PH,60HZ,182TC,XPFC,F1MPN: CDRX18344T-5 · ABB
Price on request
Request a quote
Available on request5HP,3500RPM,3PH,60HZ,184TC,XPFC,F1MPN: CDRX18524T-5 · ABB
Price on request
Request a quote
Available on request5HP,1750RPM,3PH,60HZ,184TC,XPFC,F1MPN: CDRX18544T-5 · ABB
Price on request
Request a quote

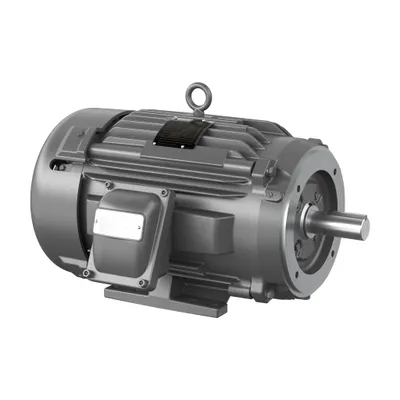

Available on request10HP,3490//2900RPM,3PH,60HZ,215TC,XMPN: CDRX21124T · ABB
