Available on request
5HP,1158//965RPM,3PH,60HZ,215T,XPFC
MPN: DRX21564T · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | XP Drill Rig Duty |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can DRX21564T be shipped?
DRX21564T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up DRX21564T in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for DRX21564T and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for DRX21564T, subject to availability and destination.
Explosion Proof Drill Rig Duty 3 Hp 190 V (DRX21564T)
Specifications
Ordering
| Catalog Number | DRX21564T |
| Brand / Label | Baldor-Reliance |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015220 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Duty Time | 60 Min |
| Efficiency Level | Premium Efficiency (NEMA 12-12) |
| Insulation Class | F |
| NEMA Design Code | B |
| Number of Phases | 3-phase |
| Number of Poles | 6P |
| Number of Speeds | Single Speed |
| Power Factor | 74 % |
| Rated Efficiency | 89.80 % |
| Service Factor | 1.00 |
| Temperature Class | T3C |
| Type of Duty | Continuous |
| Starting of Motor | Direct On Line |
| Synchronous Speed (vsyn) | 1200 r/min |
| Output Power | 3 Hp, 5.000 Hp |
Mechanical
| Drive End Flange Type | Standard |
| Enclosure Type | TEFC |
| Explosion Proof Group Class | Class I, Group C & D |
| Frame Material | Cast Iron |
| Motor Frame Size | 215T |
| Motor Base Type | Foot Mounted |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 17.625 in |
| Product Net Weight | 245 lb |
| Product Net Width | 18.125 in |
| Dimension Diagram | 07LYJ231 |
Certificates and Declarations
| Certification Agency | CSA EEV, UL, UR |
| ETIM 7 | EC001851 - Electric motor |
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
More ABB parts
Available on request10HP,1765RPM,3PH,60HZ,215T,XPFC,F1MPN: DRX21144T-5 · ABB
Price on request
Request a quote
Available on request50M 4P XPFC HOR 215T T'STATS, INVERMPN: DRX21145T · ABB
Price on request
Request a quote

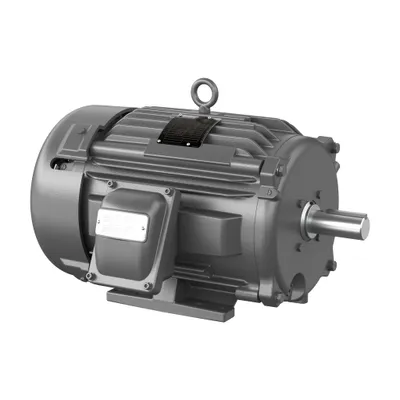

Available on request3HP,1165//970RPM,3PH,60HZ,213T,XPFCMPN: DRX21364T · ABB
Price on request
Request a quote
Available on request38M 6P XPFC HOR 213T T'STATS, INVEMPN: DRX21365T · ABB
Price on request
Request a quote

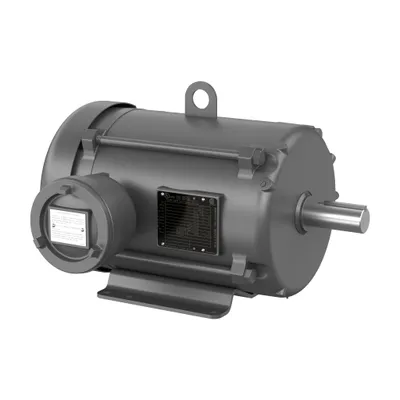

Available on request52M 6P XPFC HOR 215T T'STATS, INVEMPN: DRX21565T · ABB
