Available on request
50HP,1775RPM,3PH,60HZ,326TC,XPFC,F1
MPN: CDRX32544T-5 · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | XP Drill Rig Duty |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can CDRX32544T-5 be shipped?
CDRX32544T-5 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CDRX32544T-5 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CDRX32544T-5 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CDRX32544T-5, subject to availability and destination.
Explosion Proof Drill Rig Duty 50 Hp 575 V (CDRX32544T-5)
Specifications
Ordering
| Catalog Number | CDRX32544T-5 |
| Brand / Label | Baldor-Reliance |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015230 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Efficiency Level | Premium Efficiency (NEMA 12-12) |
| Insulation Class | F |
| NEMA Design Code | A A |
| Number of Phases | 3-phase |
| Number of Poles | 4P |
| Number of Speeds | Single Speed |
| Power Factor | 84 % |
| Rated Efficiency | 94.50 % |
| Service Factor | 1.00 |
| Temperature Class | T3C |
| Type of Duty | Continuous |
| Starting of Motor | Direct On Line |
| Synchronous Speed (vsyn) | 1800 r/min |
| Output Power | 50 Hp |
Mechanical
| Drive End Flange Type | C-Face |
| Enclosure Type | XPFC |
| Explosion Proof Group Class | Class I, Group C & D |
| Frame Material | Iron |
| Motor Frame Size | 326TC |
| Motor Base Type | Foot Mounted |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 25.625 in |
| Product Net Weight | 782 lb |
| Product Net Width | 32.5 in |
| Dimension Diagram | 12LYT021 |
Certificates and Declarations
| Certification Agency | CSA, CSA EEV, UR |
| ETIM 7 | EC001851 - Electric motor |
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
More ABB parts
Available on request40HP,3540RPM,3PH,60HZ,324TSC,XPFC,FMPN: CDRX32424T-5 · ABB
Price on request
Request a quote
Available on request40HP,1775RPM,3PH,60HZ,324TC,XPFC,F1MPN: CDRX32444T-5 · ABB
Price on request
Request a quote
Available on request50HP,3560//2960RPM,3PH,60/50HZ,326TMPN: CDRX32524T · ABB
Price on request
Request a quote

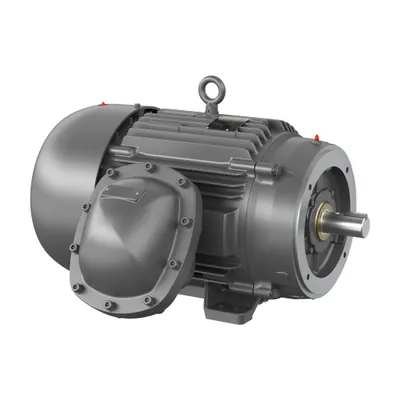

Available on request50HP,3560RPM,3PH,60HZ,326TSC,XPFC,FMPN: CDRX32524T-5 · ABB
Price on request
Request a quote
Available on request40HP,1190RPM,3PH,60HZ,364TC,TEFC,F1MPN: CDRX36464T · ABB
Price on request
Request a quote
Available on request60HP,1780RPM,3PH,60HZ,364TC,A3658M,MPN: CDRX36644T · ABB
Price on request
Request a quote
Available on request75HP,1785RPM,3PH,60HZ,365TC,A36070MMPN: CDRX36744T · ABB
Price on request
Request a quote

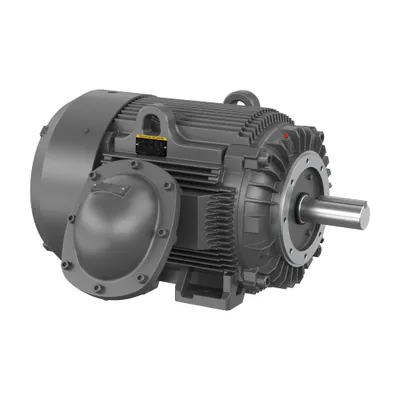

Available on request100HP,1785RPM,3PH,60HZ,405TC,TEFC,FMPN: CDRX40144T · ABB
