Available on request

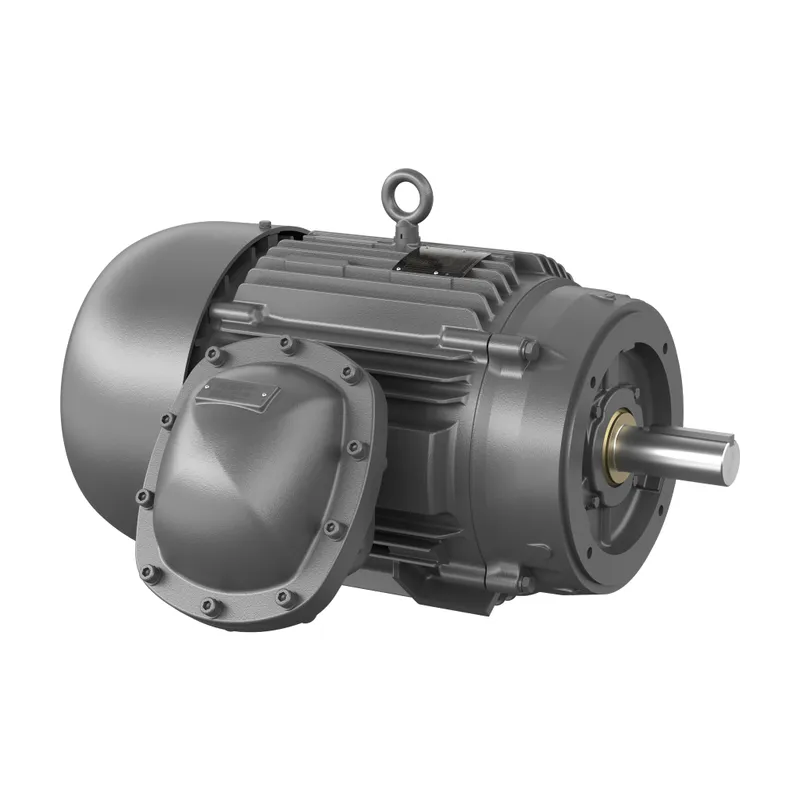

50HP,1775//1475RPM,3PH,60/50HZ,326T
MPN: VDRX32544T · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | XP Drill Rig Duty |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can VDRX32544T be shipped?
VDRX32544T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VDRX32544T in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VDRX32544T and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VDRX32544T, subject to availability and destination.
Explosion Proof Drill Rig Duty 40 Hp 190 V (VDRX32544T)
Specifications
Ordering
| Catalog Number | VDRX32544T |
| Brand / Label | Baldor-Reliance |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015230 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Efficiency Level | Not Regulated / Exempt |
| Insulation Class | F |
| NEMA Design Code | A A |
| Number of Phases | 3-phase |
| Number of Poles | 4P |
| Number of Speeds | Single Speed |
| Power Factor | 84 % |
| Rated Efficiency | 94.50 % |
| Service Factor | 1.00 |
| Temperature Class | T3C |
| Type of Duty | Continuous |
| Starting of Motor | Direct On Line |
| Synchronous Speed (vsyn) | 1800 r/min |
| Output Power | 40 Hp, 50 Hp |
Mechanical
| Drive End Flange Type | C-Face |
| Enclosure Type | XPFC |
| Explosion Proof Group Class | Class I, Group C & D |
| Frame Material | Iron |
| Motor Frame Size | 326TC |
| Motor Base Type | Footless |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 25.625 in |
| Product Net Weight | 782 lb |
| Product Net Width | 32.5 in |
Certificates and Declarations
| Certification Agency | CSA, CSA EEV, UR |
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
More ABB parts

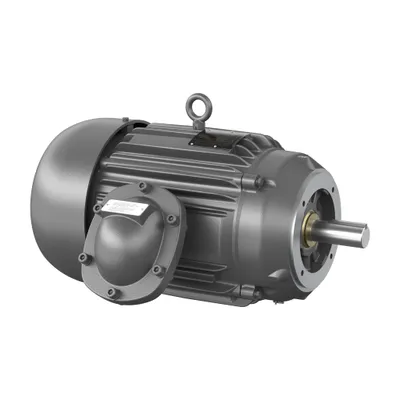

Available on request20HP,1770//1470RPM,3PH,60/50HZ,256TMPN: VDRX25244T · ABB
Price on request
Request a quote

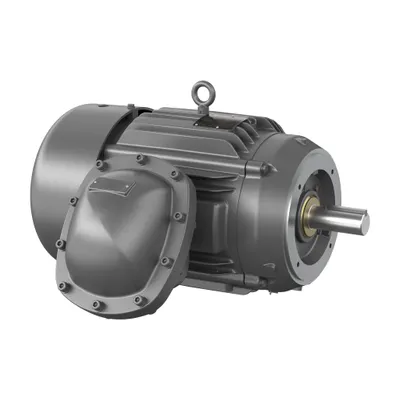

Available on request25HP,1775//1475RPM,3PH,60/50HZ,284TMPN: VDRX282544T · ABB
