Available on request
ABB EM2544T-CI – 50HP,1185RPM,3PH,60HZ,365T,1466M,OP
MPN: EM2544T-CI · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Three phase open motors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can EM2544T-CI be shipped?
EM2544T-CI is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up EM2544T-CI in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for EM2544T-CI and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EM2544T-CI, subject to availability and destination.
General Purpose Motor 50 Hp 230 V (EM2544T-CI)
Specifications
Ordering
| Catalog Number | EM2544T-CI |
| Brand / Label | Baldor-Reliance |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015230 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Duty Time | 60 Min |
| Efficiency Level | Premium Efficiency (NEMA 12-12) |
| Insulation Class | F |
| NEMA Design Code | B |
| Number of Phases | 3-phase |
| Number of Poles | 6P |
| Number of Speeds | Single Speed |
| Power Factor | 83 % |
| Rated Efficiency | 94.10 % |
| Service Factor | 1.15 |
| Type of Duty | Continuous |
| Starting of Motor | Direct On Line |
| Synchronous Speed (vsyn) | 1200 r/min |
| Output Power | 50 Hp |
Mechanical
| Drive End Flange Type | Standard |
| Enclosure Type | ODP |
| Frame Material | Cast Iron |
| Motor Frame Size | 365T |
| Motor Base Type | Foot Mounted |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 25.625 in |
| Product Net Weight | 722 lb |
| Product Net Width | 32.5 in |
| Dimension Diagram | 617428-130 |
Certificates and Declarations
| Certification Agency | CCSA US, CCSAUSEEV, CSA EEV, CURUSEEV |
| IDEA Granular Category Code (IGCC) | 1325 >> General purpose motor AC |
| ETIM 7 | EC001851 - Electric motor |
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
More ABB parts
Available on request50HP,1775RPM,3PH,60HZ,326T,1256M,OPMPN: EM2543T-CI · ABB
Price on request
Request a quote

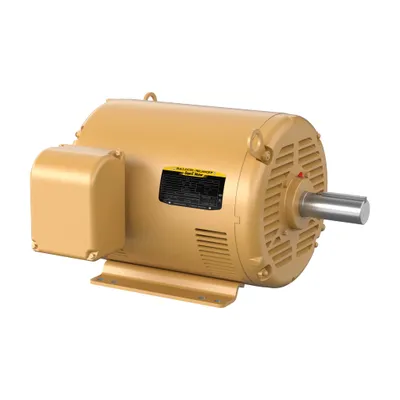

Available on request50HP,1775RPM,3PH,60HZ,326T,4256M,OPMPN: EM2543T-G · ABB
Price on request
Request a quote
Available on request50HP,1775RPM,3PH,60HZ,326TS,4256M,OMPN: EM2543TS-12 · ABB
Price on request
Request a quote

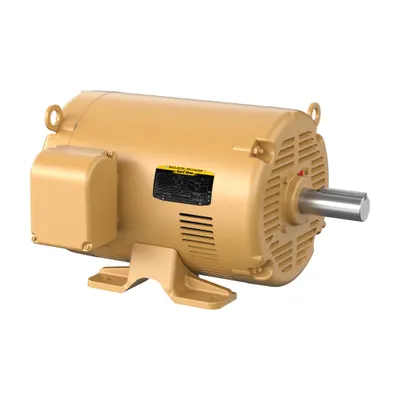

Available on request50HP,1185RPM,3PH,60HZ,365T,4466M,OPMPN: EM2544T · ABB
Price on request
Request a quote
Available on request450HP,3570RPM,3PH,60HZ,449TS,DP,F1MPN: EM25452T-4 · ABB
Price on request
Request a quote

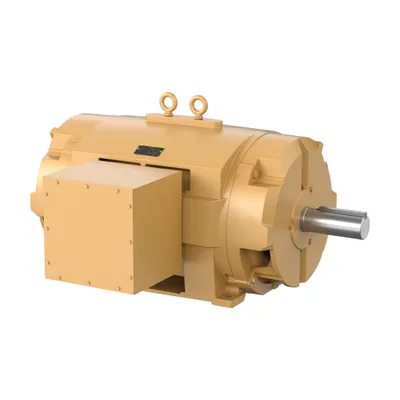

Available on request450HP,1780RPM,3PH,60HZ,449T,DP,F1MPN: EM25454T-4 · ABB
Price on request
Request a quote

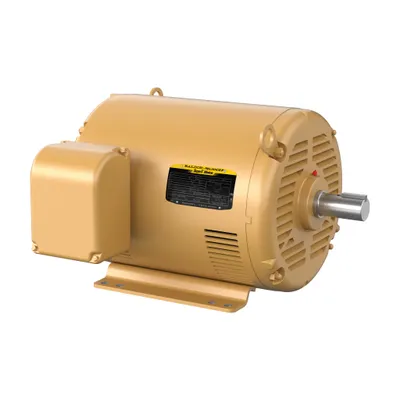

Available on request60HP,3540RPM,3PH,60HZ,326TS,4250M,OMPN: EM2546T · ABB
Price on request
Request a quote

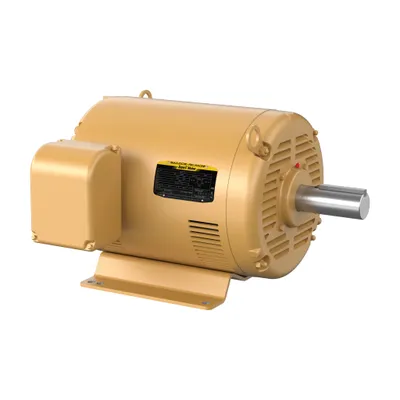

Available on request60HP,1775RPM,3PH,60HZ,364T,4278M,OPMPN: EM2547T · ABB
