3KW,1500RPM,3PH,50HZ,D112S,3632B,TE

Name: ABB ECS101T3K3EF4 – 3KW,1500RPM,3PH,50HZ,D112S,3632B,TE
Brand: ABB
SKU: ECS101T3K3EF4

MPN: ECS101T3K3EF4 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	EC Titanium™ (General Purpose SP5+)
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can ECS101T3K3EF4 be shipped?

ECS101T3K3EF4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ECS101T3K3EF4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ECS101T3K3EF4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ECS101T3K3EF4, subject to availability and destination.

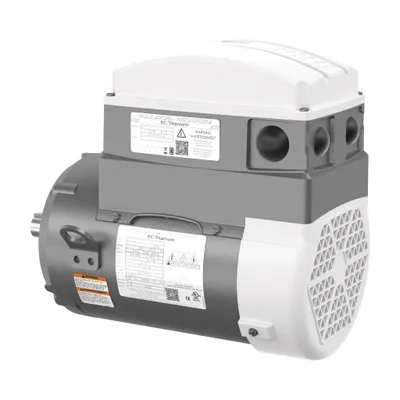

ECM IMD 3 kW 380 V (ECS101T3K3EF4)

Specifications

Ordering

Catalog Number	ECS101T3K3EF4
Brand / Label	Baldor-Reliance®
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Efficiency Level	IE5
Insulation Class	F
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	single_speed
Power Factor	97 %
Rated Efficiency	92.40 %
Service Factor	1.00
Type of Duty	Continuous
Starting of Motor	INVERTER SPECIAL
Synchronous Speed (vsyn)	1500 r/min
Output Power	3 kW kW
