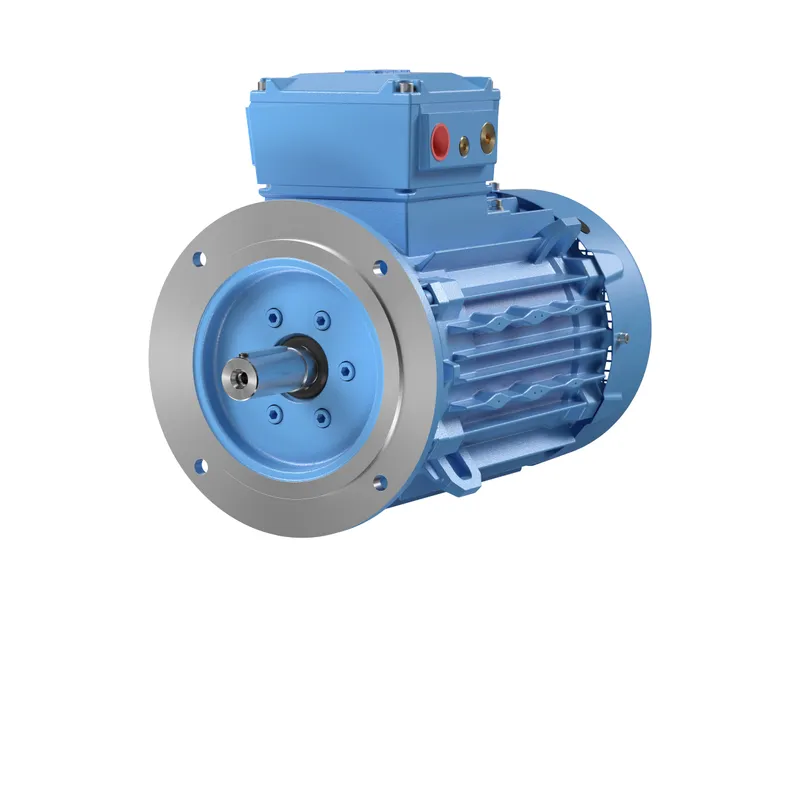

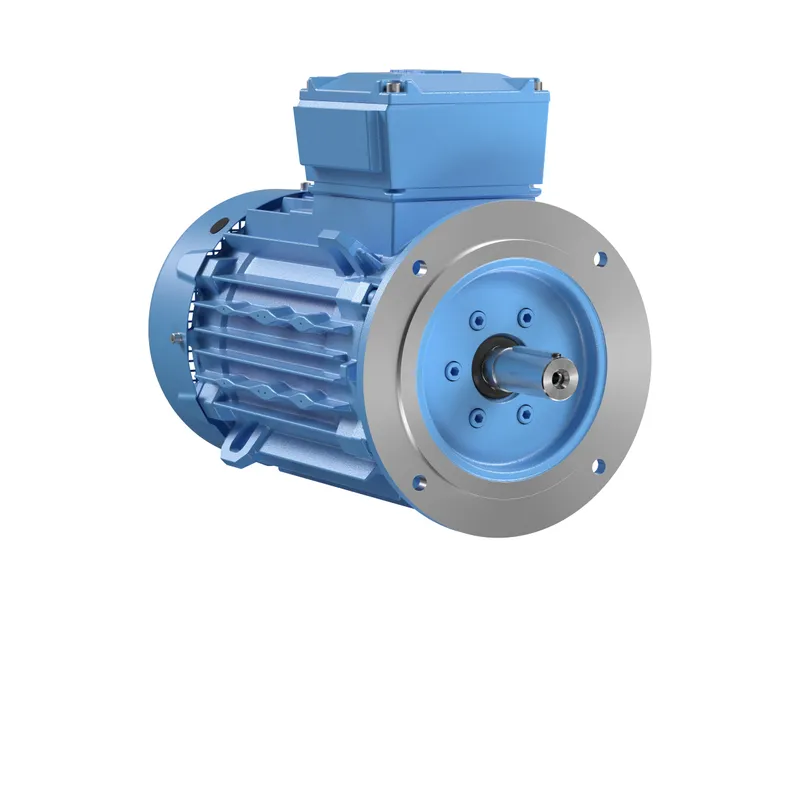

M3JP 132SMG 4
MPN: 3GJP132270-BFK · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Flameproof IEC Low voltage motors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 119 kg |
Shipping & availability
When can 3GJP132270-BFK be shipped?
3GJP132270-BFK is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3GJP132270-BFK in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3GJP132270-BFK and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GJP132270-BFK, subject to availability and destination.
Flameproof IE3 Premium Efficiency Motors, 7.5 kW, 500 V (3GJP132270-BFK)
Specifications
Ordering
| ABB Type Designation | M3JP 132SMG 4 |
| Invoice Description | M3JP 132SMG 4 |
| Product Name | 3-Phase squirrel cage motor |
| Product Type | 3JP3__M3JP_IE3_Flameproof_Ex_db_motor |
| Country or Territory of Origin | Finland |
| Customs Tariff Number | 85015220 |
| Medium Description | 7.5kW, 4 Poles, Frame Size 132, 3 Phases, 500V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GJP132270-BFK) |
| Short Description | 7.5kW, 4P, Frame Size 132, 3PH, 500V, 50Hz, IP55, IMB5/IM3001 |
Electrical
| Connection Configuration | Y |
| Temperature Class Default | T4 |
| Input Voltage (Uin) | 500 V V |
| Frequency (f) | 50 Hz Hz |
| Output Power | 7.5 kW kW |
| Altitude | 1000 m m |
| Ambient Temperature | 40 °C |
| IC Class | IC411 |
| IE Class Data (50 Hz) | IE Class IE3, Full Load (100%) 90.4 %, Partial Load (75%) 91.3 %, Partial Load (50%) 91.4 % |
| IE Class Data (60 Hz) | IE Class IE3, Full Load (100%) 91.8 %, Partial Load (75%) 92.2 %, Partial Load (50%) 91.7 % |
| IP Class | IP55 |
| Insulation Class | ICLF |
| Direction of Rotation | Both sides |
| Number of Poles (High) | 4 |
| Two Speed Motor | No |
| Type of Duty | S1 |
| Voltage Code | F |
| EX-Protection | Exdb |
| Gas Group | IIB |
Mechanical
| Frame Material | Cast Iron |
| Frame Size | 132 |
| Bearing | 6208-2Z/C3 |
| Bearing NDE | 6208-2Z/C3 |
| IM Class | IMB5 IM3001 |
| Terminator Box Location | D-End top |
Dimensions
| Product Net Depth / Length | 576 mm mm |
| Product Net Height | 392 mm mm |
| Product Net Width | 250 mm mm |
| Product Net Weight | 119 kg kg |
| Gross Weight | 124 kg kg |
Environmental
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
| SCIP | 297e96db-dbee-43c1-ad2d-ddd583080bb8 Finland |
External Classifications and Standards
| UNSPSC | 26101100 |
