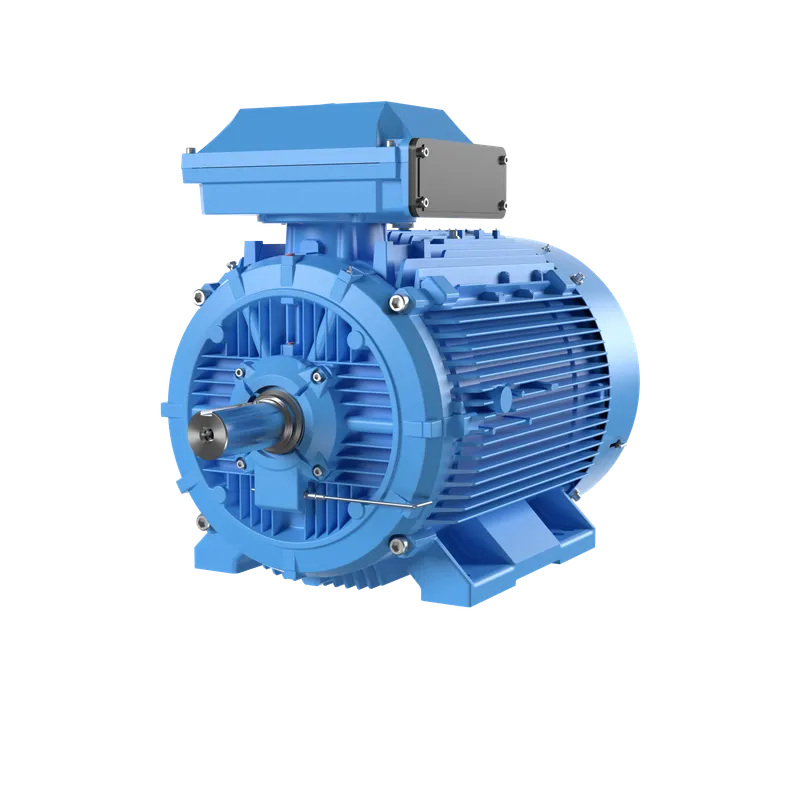

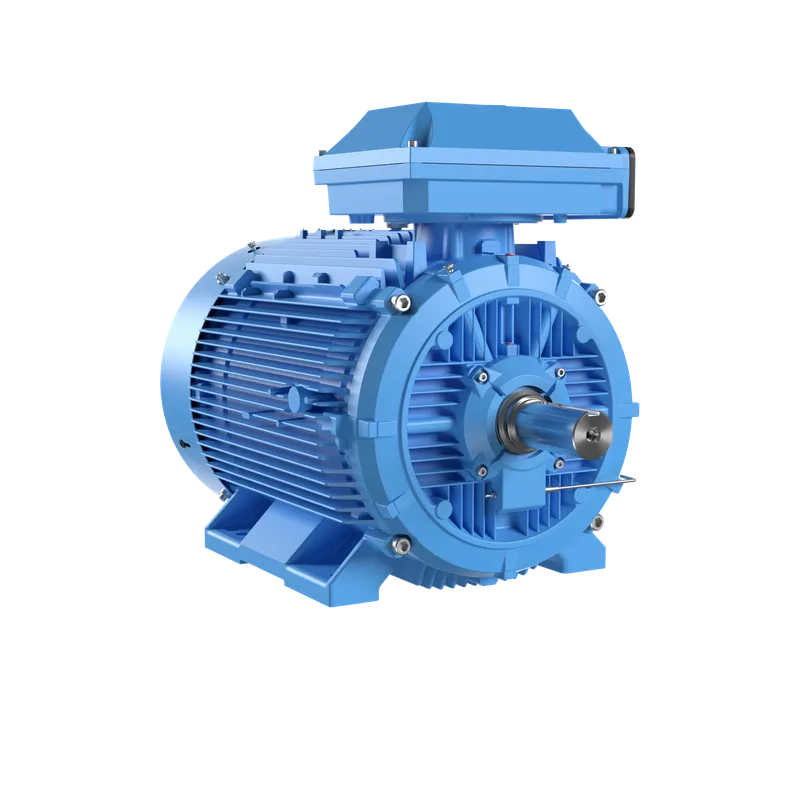

M3BL 250SMA 4
MPN: 3GBL252217-ARC · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Flameproof IEC Low voltage motors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 396 kg |
Shipping & availability
When can 3GBL252217-ARC be shipped?
3GBL252217-ARC is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3GBL252217-ARC in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3GBL252217-ARC and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GBL252217-ARC, subject to availability and destination.
IE5 SynRM Motors, 55 kW, 380 V (3GBL252217-ARC)
Specifications
Ordering
| ABB Type Designation | M3BL 250SMA 4 |
| Invoice Description | M3BL 250SMA 4 |
| Product Name | 3Phase Synchronous reluctance motor |
| Product Type | 3BL4__M3BL_IE5_SynRM_CI |
| Country or Territory of Origin | Finland |
| Customs Tariff Number | 85015290 |
| Medium Description | 55kW, 4P, Frame Size 250, 3 Phases, 380V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GBL252217-ARC) |
| Short Description | 55kW, 4P, Frame Size 250, 3PH, 380V, 50Hz, IP55, IMB3/IM1001 |
Electrical
| Connection Configuration | D |
| Temperature Class Default | -- |
| Input Voltage (Uin) | 380 V V |
| Frequency (f) | 50 Hz Hz |
| Motor Operational Voltage | 350 V V |
| Operating Frequency (fsw) | 120.000 Hz Hz |
| Output Power | 55 kW kW |
| Altitude | 1000 m m |
| Ambient Temperature | 40 °C |
| IC Class | IC411 |
| IE Class Data (50 Hz) | IE Class IE5, Full Load (100%) 95.7 %, Partial Load (75%) 95.0 %, Partial Load (50%) 93.5 % |
| IP Class | IP55 |
| Insulation Class | ICLF |
| Direction of Rotation | Both sides |
| Number of Poles (High) | 4 |
| Two Speed Motor | No |
| Type of Duty | S9 |
| Voltage Code | R |
Mechanical
| Frame Material | Cast Iron |
| Frame Size | 250 |
| Bearing | 6315/C3 |
| Bearing NDE | 6213/C3 |
| IM Class | IMB3 IM1001 |
| Terminator Box Location | D-End top |
Dimensions
| Product Net Depth / Length | 884 mm mm |
| Product Net Height | 626 mm mm |
| Product Net Width | 508 mm mm |
| Product Net Weight | 396 kg kg |
| Gross Weight | 406 kg kg |
Environmental
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) cm |
Circular Value
| ABB EcoSolutions | Yes |
Eco Transparency
| Environmental Product Declaration - EPD | 9AAU00000000027 |
External Classifications and Standards
| UNSPSC | 26101100 |
