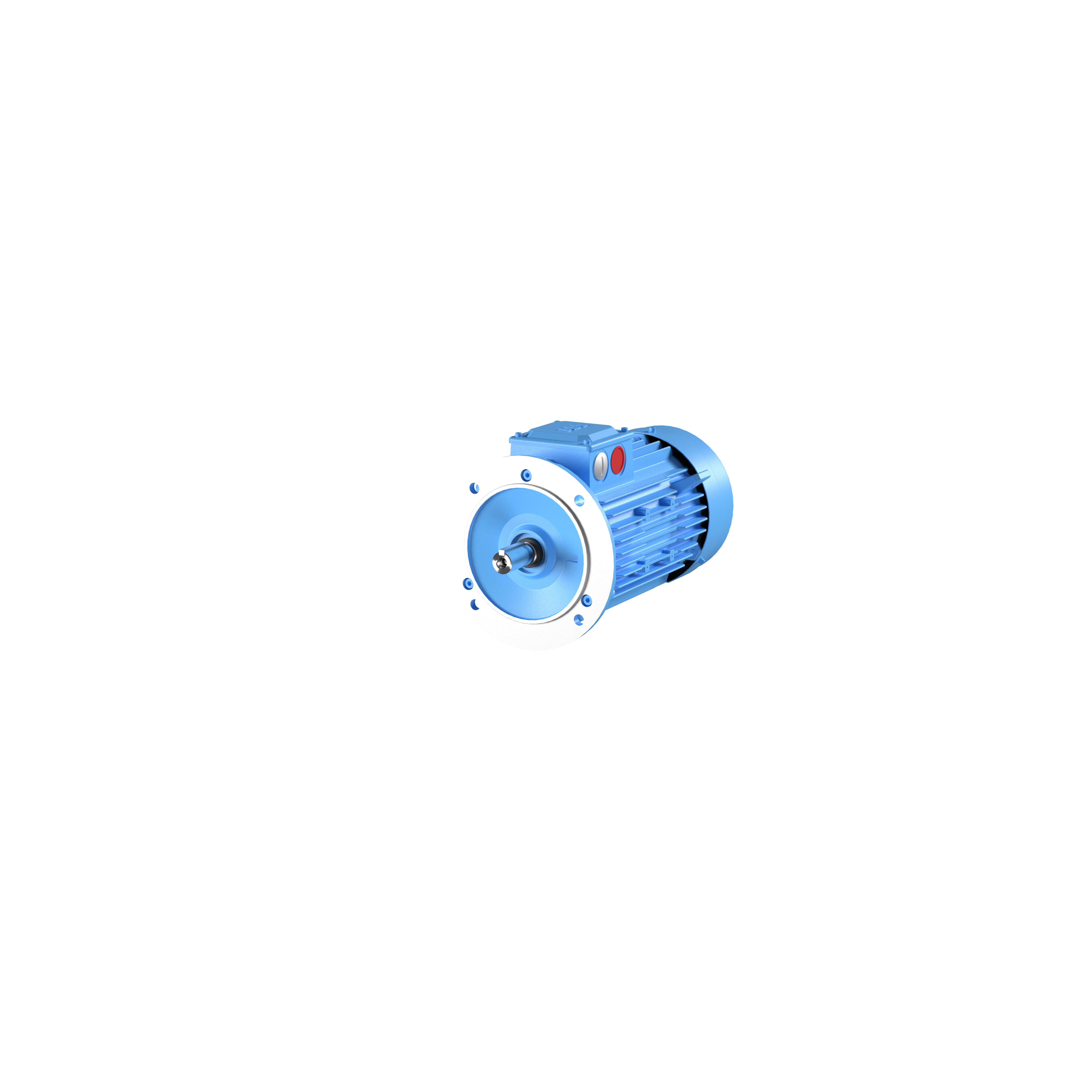

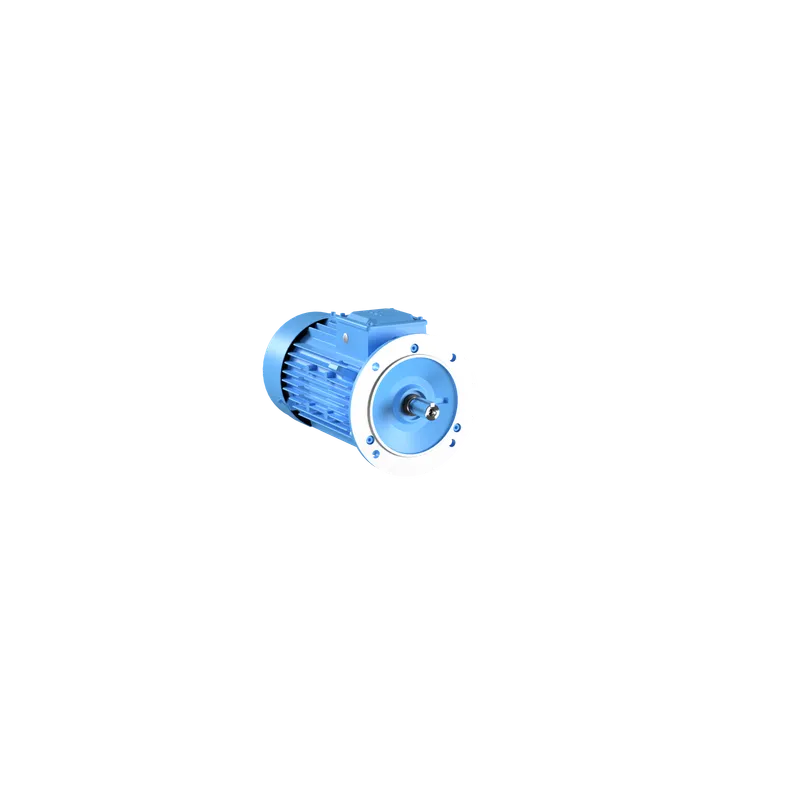

M2BAX 90SLB 4
MPN: 3GBA092020-BSNIN · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Flameproof IEC Low voltage motors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 29 kg |
Shipping & availability
When can 3GBA092020-BSNIN be shipped?
3GBA092020-BSNIN is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3GBA092020-BSNIN in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3GBA092020-BSNIN and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GBA092020-BSNIN, subject to availability and destination.
IE4 (BIS) Super Premium Efficiency Cast Iron Motors, 1.5 kW, 415 V (3GBA092020-BSNIN)
Specifications
Ordering
| ABB Type Designation | M2BAX 90SLB 4 |
| Invoice Description | M2BAX 90SLB 4 |
| Product Name | 3-Phase squirrel cage motor |
| Product Type | IBA4__M2BAX_IE4_CI |
| Country or Territory of Origin | India |
| Customs Tariff Number | 85015220 |
| Medium Description | 1.5kW, 4 Poles, Frame Size 90, 3 Phases, 415V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GBA092020-BSNIN) |
| Short Description | 1.5kW, 4P, Frame Size 90, 3PH, 415V, 50Hz, IP55, IMB5/IM3001 |
Electrical
| Connection Configuration | Y |
| Temperature Class Default | -- |
| Input Voltage (Uin) | 415 V V |
| Frequency (f) | 50 Hz Hz |
| Output Power | 1.5 kW kW |
| Altitude | 1000 m m |
| Ambient Temperature | 50 °C |
| IC Class | IC411 |
| IE Class Data (50 Hz) | IE Class IE4, Full Load (100%) 88.2 %, Partial Load (75%) 88.5 %, Partial Load (50%) 86.9 % |
| IP Class | IP55 |
| Insulation Class | ICLF |
| Direction of Rotation | Both sides |
| Number of Poles (High) | 4 |
| Two Speed Motor | No |
| Type of Duty | S1 |
| Voltage Code | S |
Mechanical
| Frame Material | Cast Iron |
| Frame Size | 90 |
| Bearing | 6205-2Z/C3 |
| Bearing NDE | 6205-2Z/C3 |
| IM Class | IMB5 IM3001 |
| Terminator Box Location | D-End top |
Dimensions
| Product Net Depth / Length | 405 mm mm |
| Product Net Height | 227 mm mm |
| Product Net Width | 200 mm mm |
| Product Net Weight | 29 kg kg |
| Gross Weight | 32 kg kg |
External Classifications and Standards
| UNSPSC | 26101100 |
