Available on request

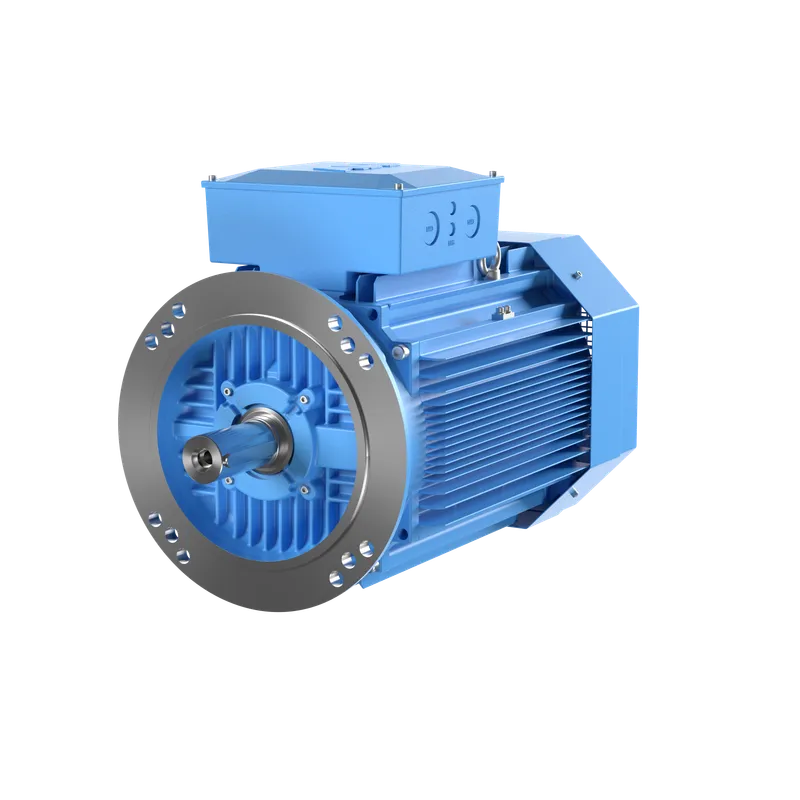

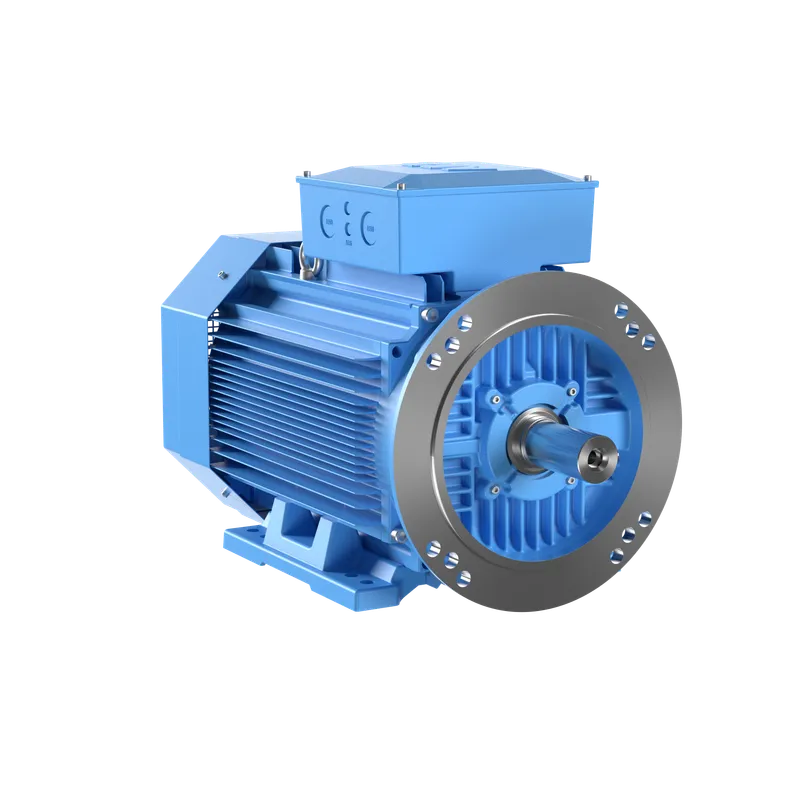

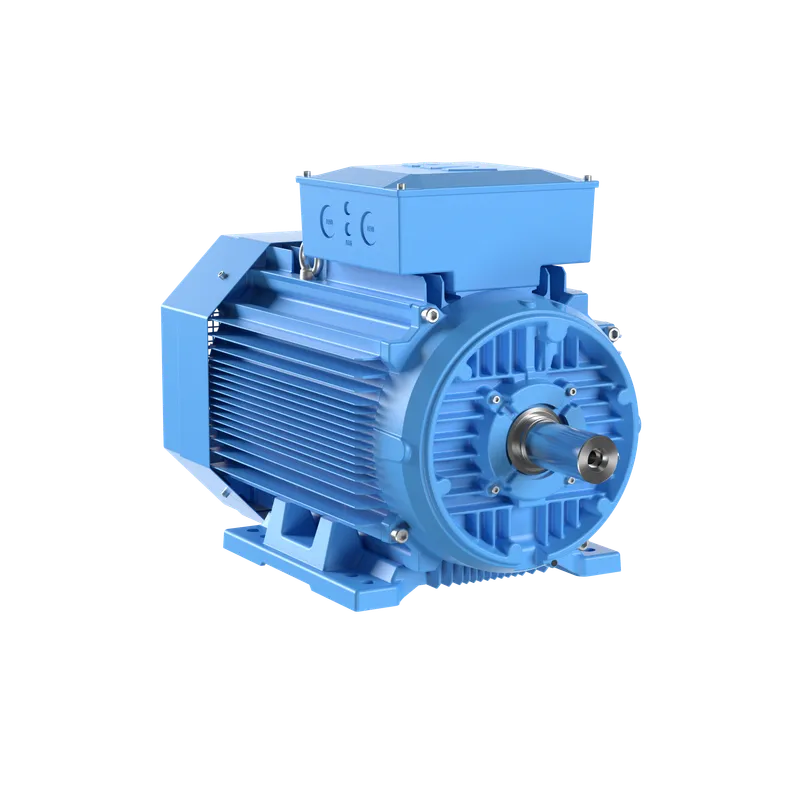

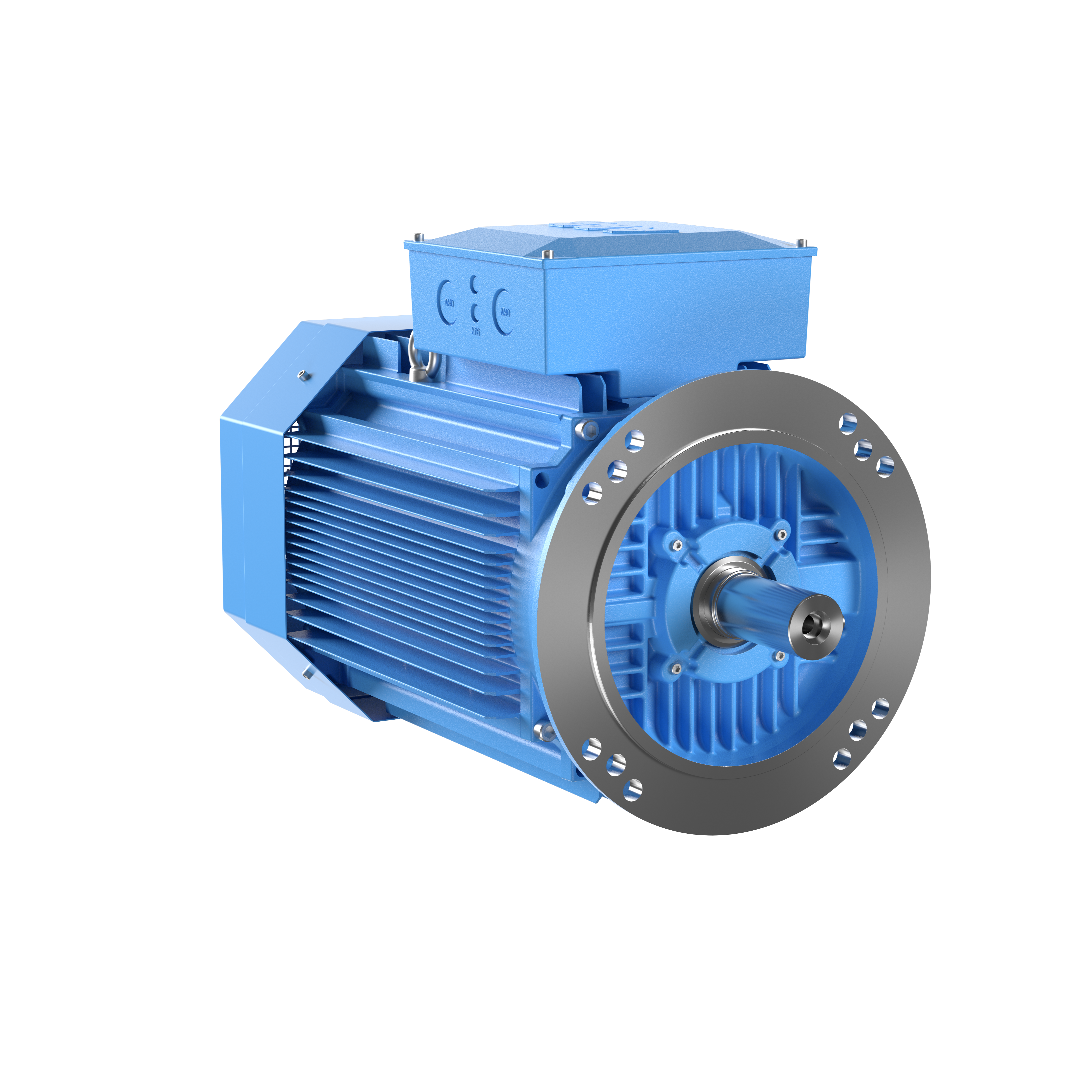

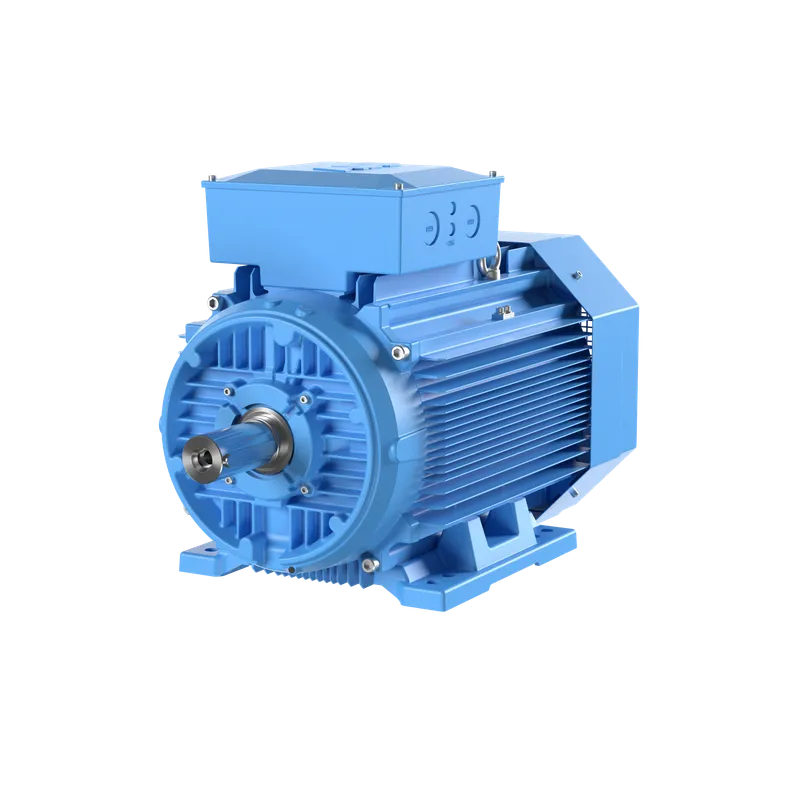

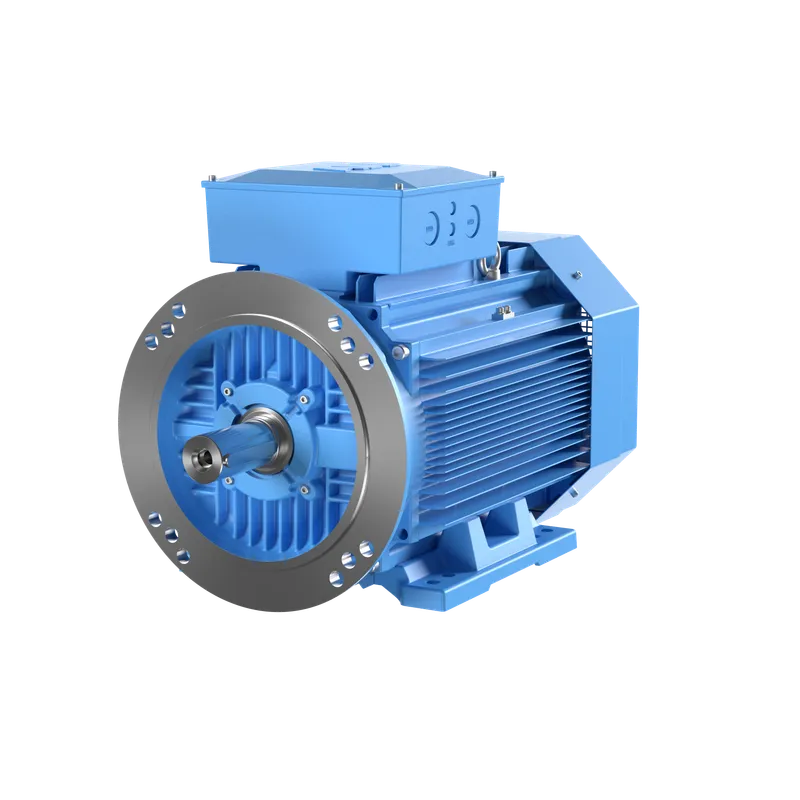

M3AA 225SMB 8
MPN: 3GAA224220-BDG · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Flameproof IEC Low voltage motors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 279 kg |
Shipping & availability
When can 3GAA224220-BDG be shipped?
3GAA224220-BDG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3GAA224220-BDG in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3GAA224220-BDG and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GAA224220-BDG, subject to availability and destination.
(3GAA224220-BDG)
Specifications
Ordering
| ABB Type Designation | M3AA 225SMB 8 |
| Invoice Description | M3AA 225SMB 8 |
| Product Name | 3-Phase squirrel cage motor |
| Product Type | 3AA2__M3AA_IE2_AA |
| Country or Territory of Origin | Finland, Poland |
| Customs Tariff Number | 85015230 |
| Replaced Product ID (OLD) | 3GAA224032-BDG, 3GAA224062-BDA |
Electrical
| Temperature Class Default | -- |
| Altitude | 1000 m m |
| Ambient Temperature | 40 °C |
| IC Class | IC411 |
| IE Class Data (50 Hz) | IE Class IE2, Full Load (100%) 90.5 %, Partial Load (75%) 91.2 %, Partial Load (50%) 90.4 % |
| IE Class Data (60 Hz) | IE Class IE2, Full Load (100%) 91.6 %, Partial Load (75%) 91.9 %, Partial Load (50%) 90.8 % |
| IP Class | IP55 |
| Insulation Class | ICLF |
| Direction of Rotation | Both sides |
| Number of Poles (High) | 8 |
| Two Speed Motor | No |
| Type of Duty | S1 |
| Voltage Code | D |
Mechanical
| Frame Material | Aluminum |
| Frame Size | 225 |
| Bearing | 6313-2Z/C3 |
| Bearing NDE | 6212-2Z/C3 |
| IM Class | IMB5 IM3001 |
| Terminator Box Location | D-End top |
Dimensions
| Product Net Weight | 279 kg kg |
| Gross Weight | 289 kg kg |
Environmental
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) cm |
| SCIP | 27ac6190-e1ce-4080-8654-6552aaabbe58 Finland |
External Classifications and Standards
| UNSPSC | 26101100 |
