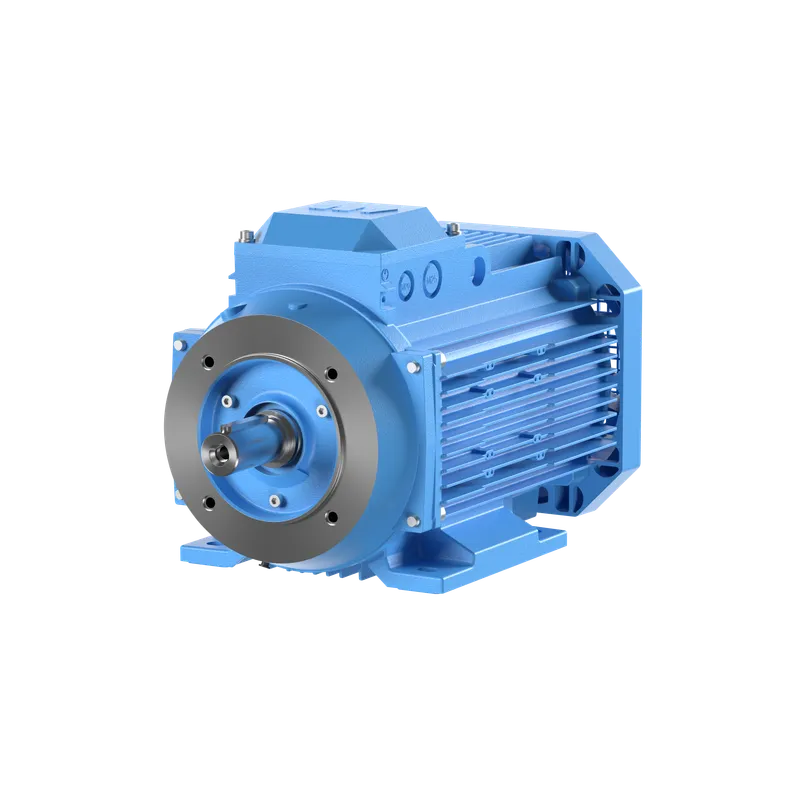

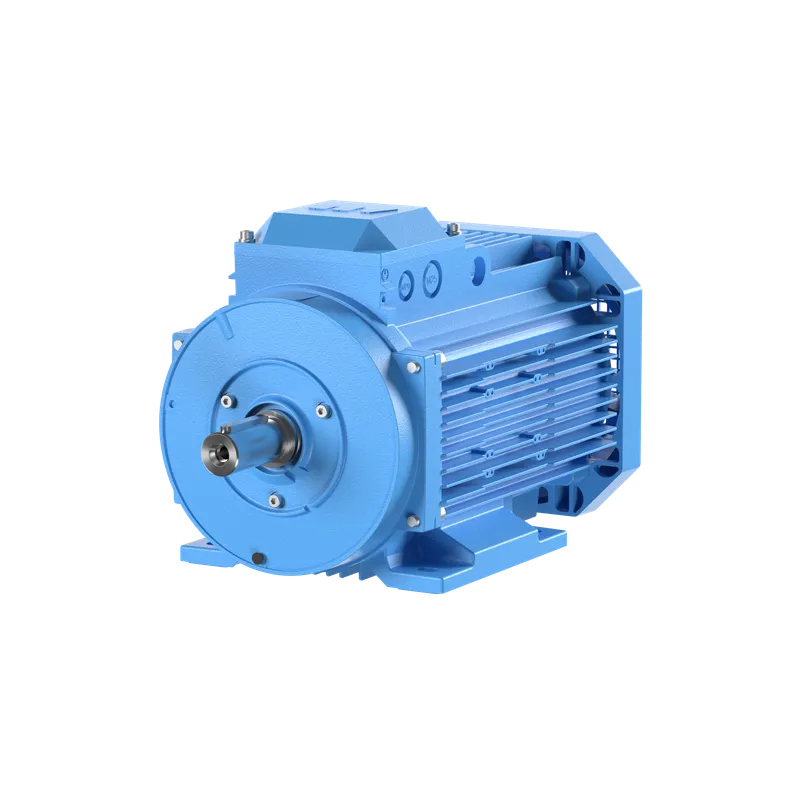

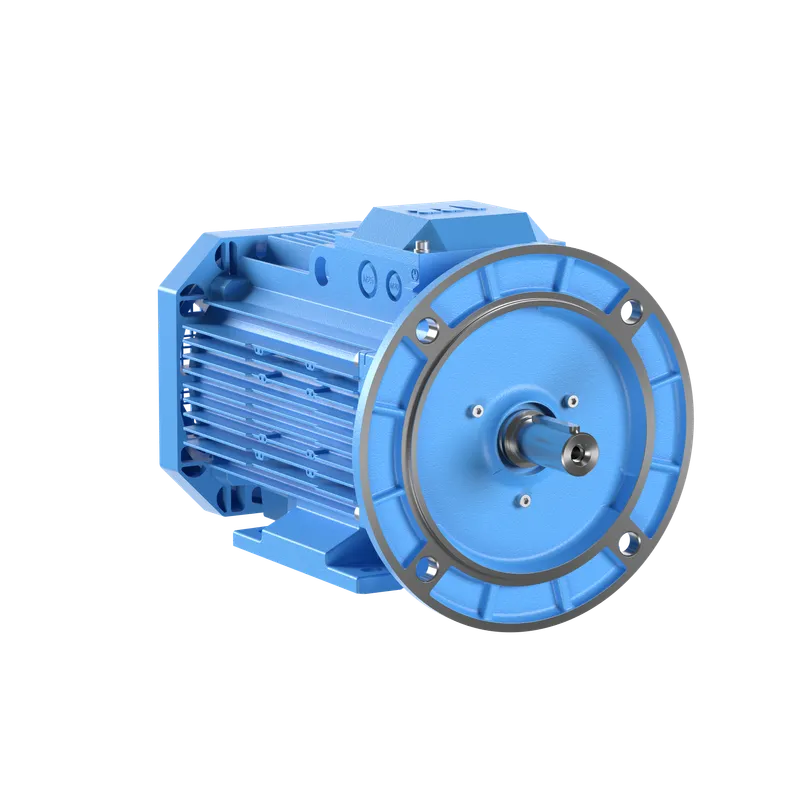

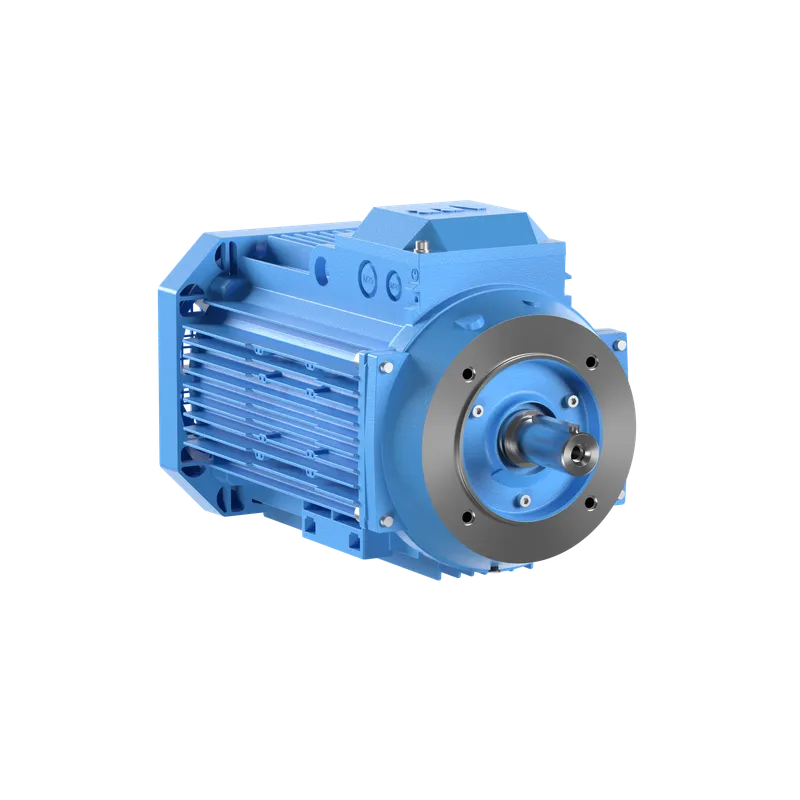

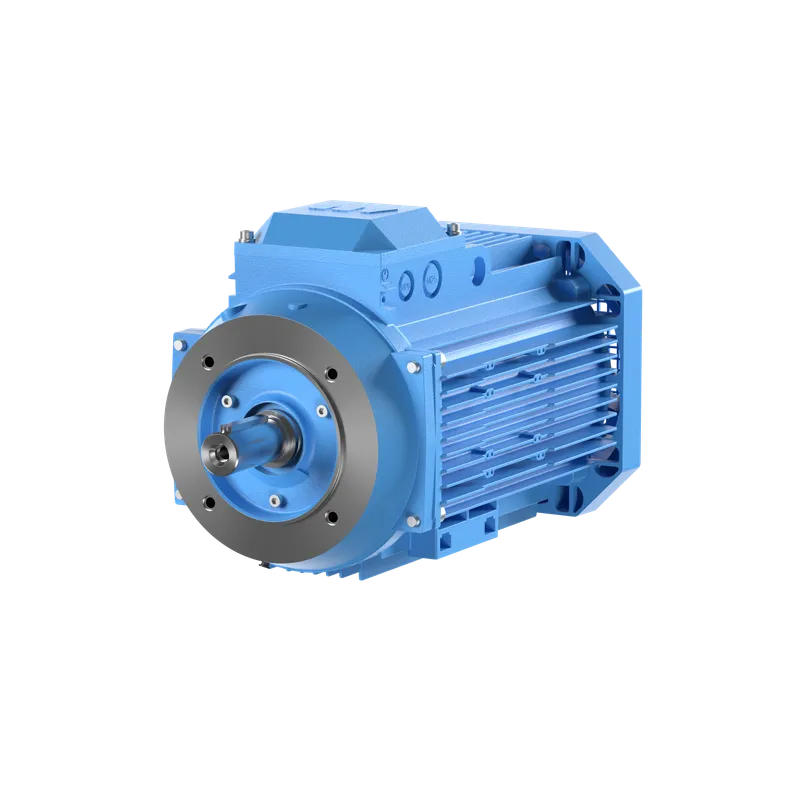

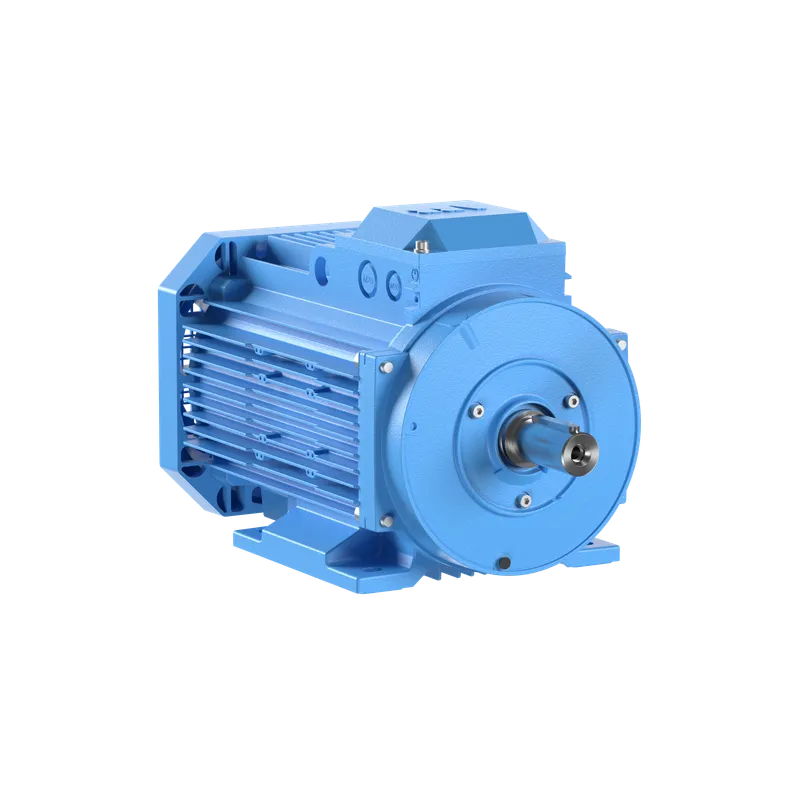

M3AA 90LD 6
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Flameproof IEC Low voltage motors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 25 kg |
Shipping & availability
When can 3GAA093540-ASK843 be shipped?
3GAA093540-ASK843 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3GAA093540-ASK843 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3GAA093540-ASK843 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GAA093540-ASK843, subject to availability and destination.
0.75kW, 6 Poles, Frame Size 90, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GAA093540-ASK843)
Specifications
Ordering
| ABB Type Designation | M3AA 90LD 6 |
| Invoice Description | M3AA 90LD 6 |
| Product Name | 3-Phase squirrel cage motor |
| Product Type | 3AA3__M3AA_IE3_AA |
| Country or Territory of Origin | Romania |
| Customs Tariff Number | 85015100 |
| Stocked At (Warehouses) | Menden, Germany |
| Medium Description | ?kW, 6P, Frame Size 90, 3 Phases, 400V, ?Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GAA093540-ASK843) kW |
| Short Description | 0.75kW, 6P, Frame Size 90, 3PH, 400V, 50Hz, IP55, IMB3/IM1001 |
Electrical
| Temperature Class Default | -- |
| Altitude | 1000 m m |
| Ambient Temperature | 40 °C |
| IC Class | IC411 |
| IE Class Data (50 Hz) | IE Class IE3, Full Load (100%) 78.9 %, Partial Load (75%) 78.8 %, Partial Load (50%) 77.0 % |
| IE Class Data (60 Hz) | IE Class IE3, Full Load (100%) 82.5 %, Partial Load (75%) 81.9 %, Partial Load (50%) 79.6 % |
| IP Class | IP55 |
| Insulation Class | ICLF |
| Direction of Rotation | Both sides |
| Number of Poles (High) | 6 |
| Two Speed Motor | No |
| Type of Duty | S1 |
| Voltage Code | S |
Mechanical
| Frame Material | Aluminum |
| Frame Size | 90 |
| Bearing | 6205-2Z/C3 |
| Bearing NDE | 6204-2Z/C3 |
| IM Class | IMB3 IM1001 |
| Terminator Box Location | D-End top |
Dimensions
| Product Net Depth / Length | 331.5 mm mm |
| Product Net Height | 217 mm mm |
| Product Net Width | 170 mm mm |
| Product Net Weight | 25 kg kg |
| Gross Weight | 28 kg kg |
Environmental
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
External Classifications and Standards
| UNSPSC | 26101100 |
