Available on request

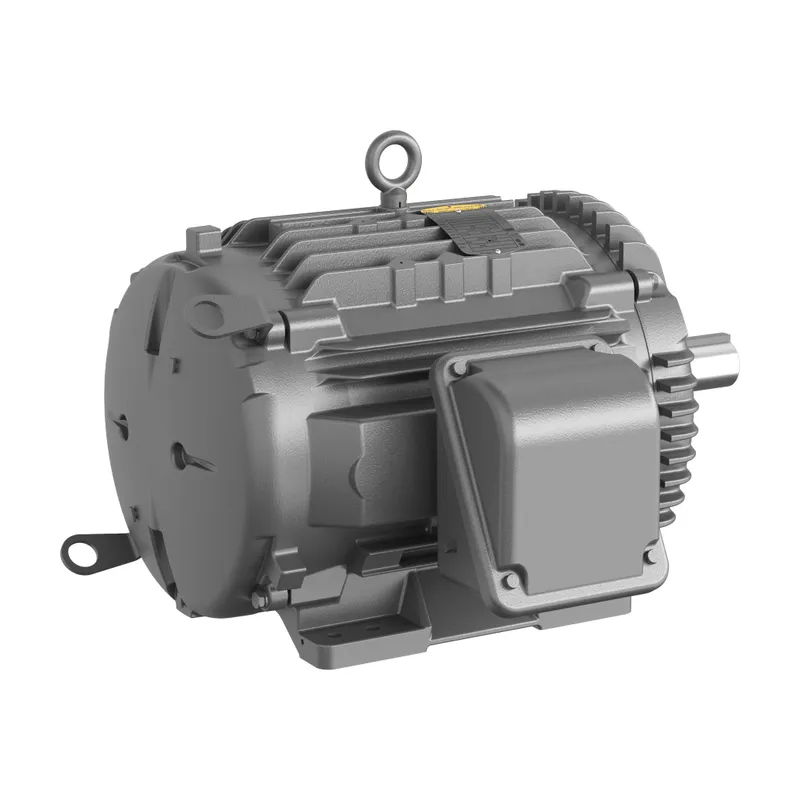

ABB ECTM4104T-G-AO – 30 AIR OVERHP,1760RPM,3PH,60HZ,286T
MPN: ECTM4104T-G-AO · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Chiller/Cooling Tower |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ECTM4104T-G-AO be shipped?
ECTM4104T-G-AO is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ECTM4104T-G-AO in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ECTM4104T-G-AO and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ECTM4104T-G-AO, subject to availability and destination.
Chiller/Cooling Tower 30 Hp 230 V (ECTM4104T-G-AO)
Specifications
Ordering
| Catalog Number | ECTM4104T-G-AO G |
| Brand / Label | Baldor-Reliance |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015230 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Duty Time | 60 Min |
| Efficiency Level | IE3, Not Regulated / Exempt, Premium Efficiency (NEMA 12-12) |
| Insulation Class | F |
| NEMA Design Code | A A |
| Number of Phases | 3-phase |
| Number of Poles | 4P |
| Number of Speeds | Single Speed |
| Power Factor | 80 % |
| Rated Efficiency | 93.60 % |
| Service Factor | 1.15 |
| Type of Duty | Continuous |
| Starting of Motor | Direct On Line |
| Synchronous Speed (vsyn) | 1800 r/min |
| Output Power | 30 Hp |
Mechanical
| Drive End Flange Type | Standard |
| Enclosure Type | TEAO |
| Frame Material | Iron |
| Motor Frame Size | 286T |
| Motor Base Type | Foot Mounted |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 19.625 in |
| Product Net Weight | 437 lb |
| Product Net Width | 23.75 in |
| Dimension Diagram | 10LYT008 |
Certificates and Declarations
| Certification Agency | C UR US, CSA EEV, CURUS, NEMA_PREMIUM |
| ETIM 7 | EC001851 - Electric motor |
