Available on request

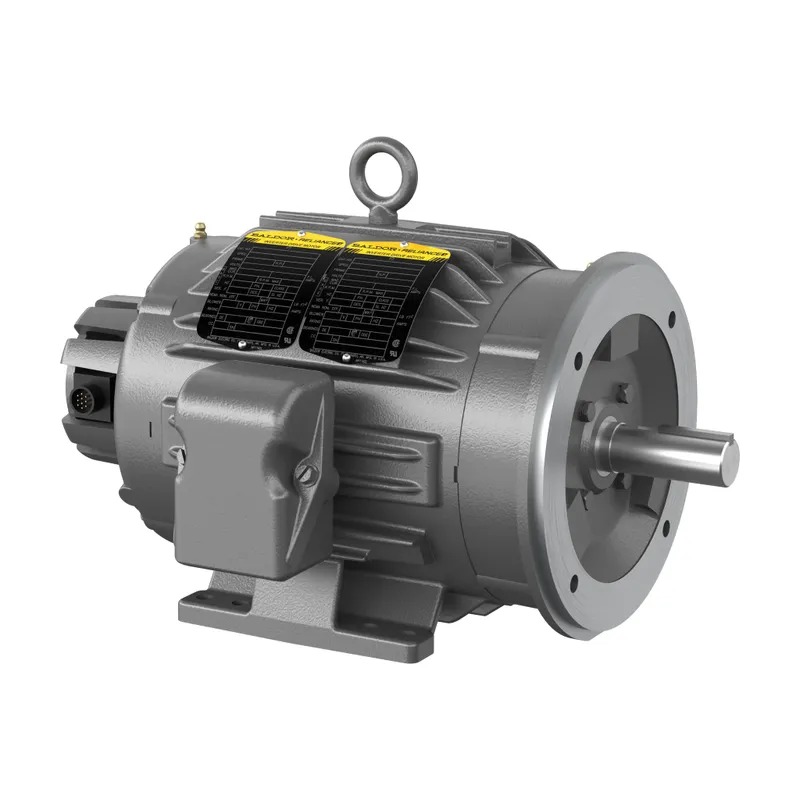

2HP,1760RPM,3PH,60HZ,182TC,0624M,TE
MPN: IDNM3669T · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | V*S Master |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can IDNM3669T be shipped?
IDNM3669T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up IDNM3669T in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for IDNM3669T and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for IDNM3669T, subject to availability and destination.
AC Inverter / Vector Duty 2 Hp 230 V (IDNM3669T)
Specifications
Ordering
| Catalog Number | IDNM3669T |
| Brand / Label | Baldor-Reliance |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015220 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Duty Time | 60 Min |
| Efficiency Level | Premium Efficiency (NEMA 12-12) |
| Insulation Class | H |
| NEMA Design Code | B |
| Number of Phases | 3-phase |
| Number of Poles | 4P |
| Number of Speeds | Single Speed |
| Power Factor | 71 % |
| Rated Efficiency | 88.50 % |
| Service Factor | 1.00 |
| Type of Duty | Continuous |
| Starting of Motor | Direct On Line |
| Synchronous Speed (vsyn) | 1800 r/min |
| Output Power | 2 Hp |
Mechanical
| Drive End Flange Type | C-Face |
| Enclosure Type | TENV |
| Frame Material | Cast Iron |
| Motor Frame Size | 182TC |
| Motor Base Type | Foot Mounted |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 15.125 in |
| Product Net Weight | 94 lb |
| Product Net Width | 16.125 in |
| Dimension Diagram | 06LYF551 |
Certificates and Declarations
| Certification Agency | CSA, UR |
| IDEA Granular Category Code (IGCC) | 1319 >> Inverter motor AC |
| ETIM 7 | EC001851 - Electric motor |
