Available on request
2HP,1760RPM,3PH,60HZ,145TC,3546M,TE
MPN: VFSWDNM3558T-E-G · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Food Safe three phase motors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can VFSWDNM3558T-E-G be shipped?
VFSWDNM3558T-E-G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VFSWDNM3558T-E-G in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VFSWDNM3558T-E-G and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VFSWDNM3558T-E-G, subject to availability and destination.
Washdown Motor 2 Hp 230 V (VFSWDNM3558T-E-G)
Specifications
Ordering
| Catalog Number | VFSWDNM3558T-E-G G |
| Brand / Label | Baldor-Reliance |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015220 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Duty Time | 60 Min |
| Efficiency Level | 2015 Small Motor Standard, IE3, Premium Efficiency (NEMA 12-12) |
| Insulation Class | H |
| NEMA Design Code | B |
| Number of Phases | 3-phase |
| Number of Poles | 4P |
| Number of Speeds | Single Speed |
| Power Factor | 78 % |
| Rated Efficiency | 88.50 % |
| Service Factor | 1.15 |
| Type of Duty | Continuous |
| Starting of Motor | Direct On Line |
| Synchronous Speed (vsyn) | 1800 r/min |
| Output Power | 2 Hp |
Mechanical
| Drive End Flange Type | C-Face |
| Enclosure Type | TENV |
| Frame Material | Stainless Steel |
| Motor Frame Size | 145TC |
| Motor Base Type | No Mounting |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 13.123 in |
| Product Net Weight | 63 lb |
| Product Net Width | 13.75 in |
| Dimension Diagram | 35LYE6051 |
Certificates and Declarations
| Certification Agency | CURUSEEV, NEMA PREMIUM, WEEE |
| ETIM 7 | EC001851 - Electric motor |
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
More ABB parts
Available on request2HP,3480RPM,3PH,60HZ,145TC,3546M,TEMPN: VFSWDNM3555T-E · ABB
Price on request
Request a quote

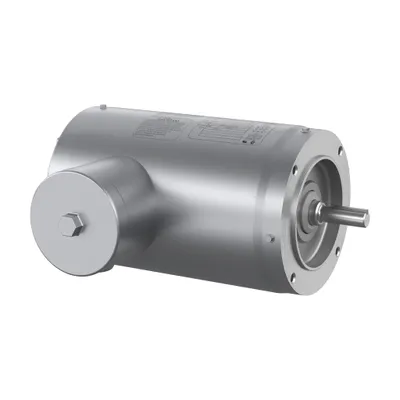

Available on request2HP,1760RPM,3PH,60HZ,56C,3546M,TENVMPN: VFSWDNM3558-E · ABB
Price on request
Request a quote
Available on request2HP,1760RPM,3PH,60HZ,56C,3546M,TENVMPN: VFSWDNM3558-E-G · ABB
Price on request
Request a quote
Available on request2HP,1760RPM,3PH,60HZ,145TC,3546M,TEMPN: VFSWDNM3558T-E · ABB
Price on request
Request a quote
Available on request3HP,3500RPM,3PH,60HZ,182TC,3646M,TEMPN: VFSWDNM3610T-E · ABB
Price on request
Request a quote

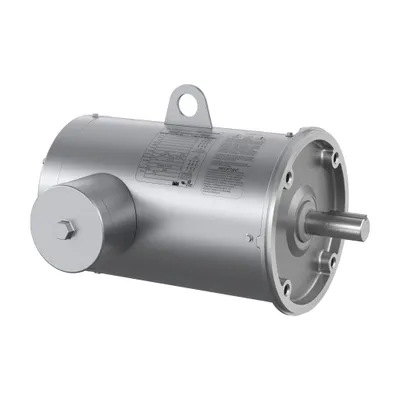

Available on request3HP,1750RPM,3PH,60HZ,182TC,3646M,TEMPN: VFSWDNM3611T-E · ABB
