Available on request

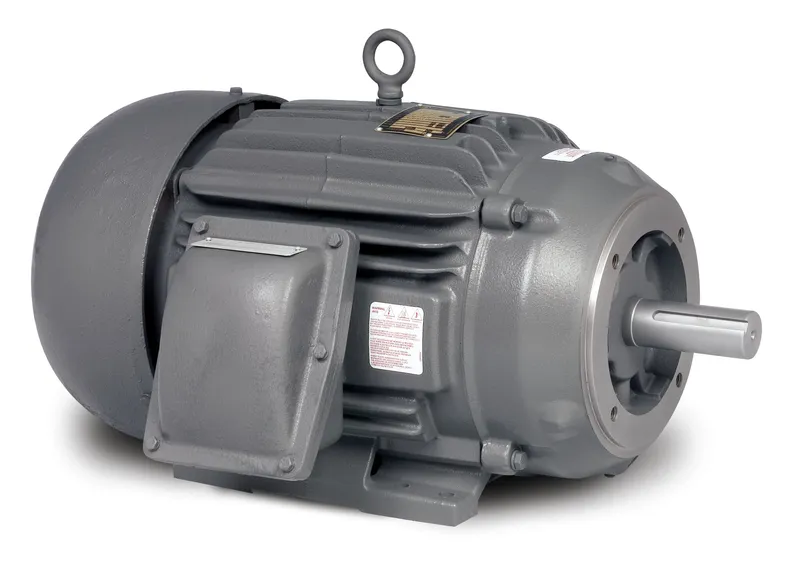

25//20HP,1780//1470RPM,3PH,60//50HZ
MPN: CEM7058T · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | XP general purpose |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 293.74 kg |
Shipping & availability
When can CEM7058T be shipped?
CEM7058T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CEM7058T in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CEM7058T and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CEM7058T, subject to availability and destination.
- 25 Hp 190 V (CEM7058T)
Specifications
Ordering
| Catalog Number | CEM7058T |
| Brand / Label | Baldor-Reliance® |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015230 |
| Minimum Order Quantity | 0.000 piece |
| Order Multiple | 0.000 piece |
Electrical
| Ambient Temperature | 40 °C |
| Efficiency Level | IE3, Premium Efficiency (NEMA 12-12) |
| Insulation Class | B |
| NEMA Design Code | A A |
| Number of Phases | 3-phase |
| Number of Poles | 4P |
| Number of Speeds | single_speed |
| Power Factor | 81 % |
| Rated Efficiency | 93.60 % |
| Service Factor | 1.00 |
| Temperature Class | T3C |
| Type of Duty | Continuous |
| Starting of Motor | Direct on line |
| Synchronous Speed (vsyn) | 1500 r/min, 1800 r/min |
| Output Power | 25 Hp |
Mechanical
| Drive End Flange Type | C-Face |
| Enclosure Type | XPFC |
| Explosion Proof Group Class | Class I, Group D, Class II, Group F & G G |
| Frame Material | Iron |
| Motor Frame Size | 284TC |
| Motor Base Type | Foot Mounted |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Weight | 293.738 kg kg |
| Dimension Diagram | 10LYE251 |
Certificates and Declarations
| Certification Agency | CSA, CSA EEV, UR |
| IDEA Granular Category Code (IGCC) | 1328 >> Multi phase motor AC |
| ETIM 7 | EC001851 - Electric motor |
