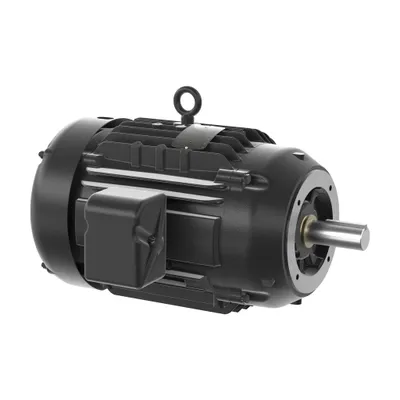

20HP,3520RPM,3PH,60HZ,256TC,0936M,T

Name: ABB VXT3202T – 20HP,3520RPM,3PH,60HZ,256TC,0936M,T
Brand: ABB
SKU: VXT3202T

MPN: VXT3202T · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can VXT3202T be shipped?

VXT3202T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up VXT3202T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for VXT3202T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VXT3202T, subject to availability and destination.

20HP,3520RPM,3PH,60HZ,256TC,0936M,TEFC,F

Specifications

Additional Information

ABB Type Designation	20HP,3520RPM,3PH,60HZ,256TC,0936M,T
Ambient Temperature	40 °C
Bearing	6309
Bearing NDE	6208
Brake Present	No
Brand / Label	Baldor-Reliance
Catalog Number	VXT3202T
Certification Agency	CCSA US, CSA EEV, NEMA PREMIUM, UR
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Drive End Flange Type	C-Face
Efficiency Level	Premium Efficiency (NEMA 12-12)
Enclosure Type	TEFC
Explosion Proof Group Class	Class I, Group A, B, C & D A
Frame Material	Iron
Frame Size	Undefined
Global Commercial Alias	VXT3202T
Gross Volume	14448.906 in³
Gross Weight	240 lb
Insulation Class	F
Invoice Description	20HP,3520RPM,3PH,60HZ,256TC,0936M,TEFC,F
Made To Order	No
Medium Description	Frame Size 256Tc, C-Face Mounting, 3Phase Phase, TEFC Enclosure, (VXT3202T)
Minimum Order Quantity	1 piece
Motor Base Type	No Mounting
Motor Frame Size	256TC
Mounting Orientation	Horizontal
Mounting Position	F1
NEMA Design Code	A A
Number of Phases	3-phase
Number of Poles	2P
Number of Poles (High)	2
Number of Speeds	Single Speed
Order Multiple	1 piece
Output Power	20 Hp
Power Factor	89 %
Product Name	LV Severe Duty Motors
Product Net Depth / Length	31 in
Product Net Height	19.625 in
Product Net Weight	240 lb
Product Net Width	23.75 in
Product Type	Undefined
Quote Only	No
Rated Current (In)	46 A, 23 A A
Rated Efficiency	91 %
Rated Speed	3520 r/min
Selling Unit of Measure	piece
Service Factor	1.15
Shaft Diameter	1.63 in
Short Description	Frame Size 256Tc, C-Face, 3Phase PH, TEFC,
Standards	NEMA
Starting of Motor	Direct On Line
Stocked At (Warehouses)	China, Fort Smith, Arkansas, United States, Alaska, United States
Synchronous Speed (vsyn)	3600 r/min
Temperature Class	T3
Type of Duty	Continuous
Voltage Rating	230 V, 460 V V
