ABB 20HP,1770RPM,3PH,60HZ,256TC,XPFC,F1 – Explosion Proof Drill Rig Duty 20 Hp 575 V (CDRX25244T-5)
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | XP Drill Rig Duty |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 20HP,1770RPM,3PH,60HZ,256TC,XPFC,F1 be shipped?
20HP,1770RPM,3PH,60HZ,256TC,XPFC,F1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 20HP,1770RPM,3PH,60HZ,256TC,XPFC,F1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 20HP,1770RPM,3PH,60HZ,256TC,XPFC,F1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20HP,1770RPM,3PH,60HZ,256TC,XPFC,F1, subject to availability and destination.
Explosion Proof Drill Rig Duty 20 Hp 575 V (CDRX25244T-5)
Specifications
Ordering
| Catalog Number | CDRX25244T-5 |
| Brand / Label | Baldor-Reliance |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015220 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Duty Time | 60 Min |
| Efficiency Level | Premium Efficiency (NEMA 12-12) |
| Insulation Class | F |
| NEMA Design Code | A A |
| Number of Phases | 3-phase |
| Number of Poles | 4P |
| Number of Speeds | Single Speed |
| Power Factor | 83 % |
| Rated Efficiency | 93 % |
| Service Factor | 1.00 |
| Temperature Class | T3C |
| Type of Duty | Continuous |
| Starting of Motor | Direct On Line |
| Synchronous Speed (vsyn) | 1800 r/min |
| Output Power | 20 Hp |
Mechanical
| Drive End Flange Type | C-Face |
| Enclosure Type | TEFC |
| Explosion Proof Group Class | Class I, Group C & D |
| Frame Material | Cast Iron |
| Motor Frame Size | 256TC |
| Motor Base Type | Foot Mounted |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 19.625 in |
| Product Net Weight | 335 lb |
| Product Net Width | 23.75 in |
| Dimension Diagram | 09LY-000-582 |
Certificates and Declarations
| Certification Agency | CSA EEV, UL, UR |
| ETIM 7 | EC001851 - Electric motor |
More ABB parts
Available on request24B TENV HOR BLDC, NO F/B, DOUBLE
Available on requestABB 200HP,1750RPM,DC,3214ATZ,DPG-FV, – DC Integral HP RPMIII Wound Fi 200 Hp (D50200RR-BV)
Available on request1.5HP,3600RPM,1PH,60HZ,3528L,3528L,
Available on request1.5HP,3600RPM,3PH,60HZ,3516M,3516M,
Available on requestC-FACE CONVERSION KIT FOR STOCK M

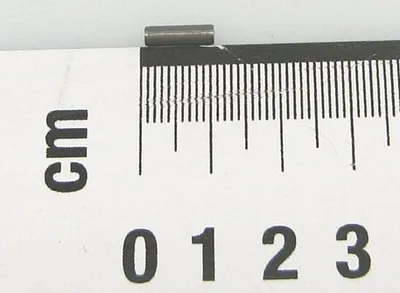

Available on requestABB 21112021-233 – CYLINDRIC PIN
