ABB CEM4102T – 20HP,1180RPM,3PH,60HZ,286TC,TEFC,F1
MPN: CEM4102T · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Three phase enclosed motor |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can CEM4102T be shipped?
CEM4102T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CEM4102T in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CEM4102T and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CEM4102T, subject to availability and destination.
General Purpose Motor 20 Hp 230 V (CEM4102T)
Specifications
Ordering
| Catalog Number | CEM4102T |
| Brand / Label | Baldor-Reliance |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015220 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Duty Time | 60 Min |
| Efficiency Level | Premium Efficiency (NEMA 12-12) |
| Insulation Class | F |
| NEMA Design Code | A A |
| Number of Phases | 3-phase |
| Number of Poles | 6P |
| Number of Speeds | Single Speed |
| Power Factor | 77 % |
| Rated Efficiency | 91.70 % |
| Service Factor | 1.15 |
| Type of Duty | Continuous |
| Starting of Motor | Direct On Line |
| Synchronous Speed (vsyn) | 1200 r/min |
| Output Power | 20 Hp |
Mechanical
| Drive End Flange Type | C-Face |
| Enclosure Type | TEFC |
| Frame Material | Cast Iron |
| Motor Frame Size | 286TC |
| Motor Base Type | Foot Mounted |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 19.625 in |
| Product Net Weight | 437 lb |
| Product Net Width | 23.75 in |
| Dimension Diagram | 10LYC152 |
Certificates and Declarations
| Certification Agency | CURUSEEV, NEMA_PREMIUM, UR |
| ETIM 7 | EC001851 - Electric motor |
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
More ABB parts
Available on request22KW/30HP,1760RPM,3PH,60HZ,286TC,10MPN: CEM41004T · ABB
Price on request
Request a quote

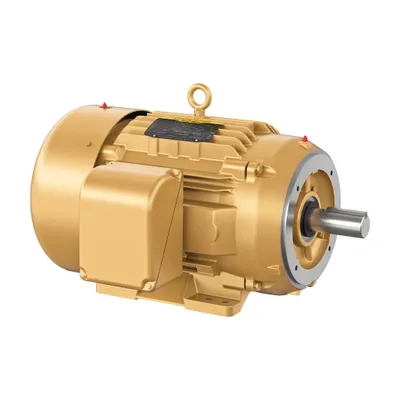

Available on request15HP,1175RPM,3PH,60HZ,284TC,TEFC,F1MPN: CEM4100T · ABB
Price on request
Request a quote
Available on request15HP,1175RPM,3PH,60HZ,284TC,TEFC,F1MPN: CEM4100T-G · ABB
Price on request
Request a quote
Available on request30KW/40HP,1775RPM,3PH,60HZ,324TC,12MPN: CEM41010T · ABB
Price on request
Request a quote
Available on request20HP,1180RPM,3PH,60HZ,286TC,TEFC,F1MPN: CEM4102T-G · ABB
Price on request
Request a quote
Available on request25HP,1775RPM,3PH,60HZ,284TC,1054M,TMPN: CEM4103T · ABB
Price on request
Request a quote
Available on request25HP,1770RPM,3PH,60HZ,284TC,1056M,TMPN: CEM4103T-5 · ABB
Price on request
Request a quote

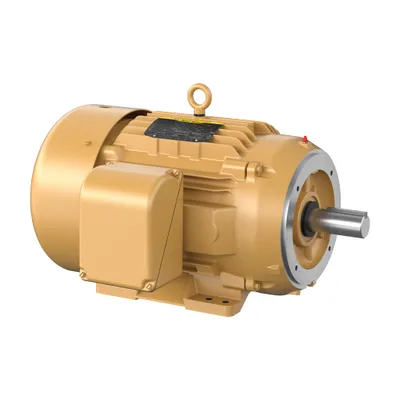

Available on request25HP,1775RPM,3PH,60HZ,284TC,TEFC,F1MPN: CEM4103T-G · ABB
