DO561

Name: DO561
Brand: ABB
SKU: 1TNE968902R2201

MPN: 1TNE968902R2201 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	S500-eCo I/O modules
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.12 kg

Shipping & availability

When can 1TNE968902R2201 be shipped?

1TNE968902R2201 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1TNE968902R2201 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1TNE968902R2201 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1TNE968902R2201, subject to availability and destination.

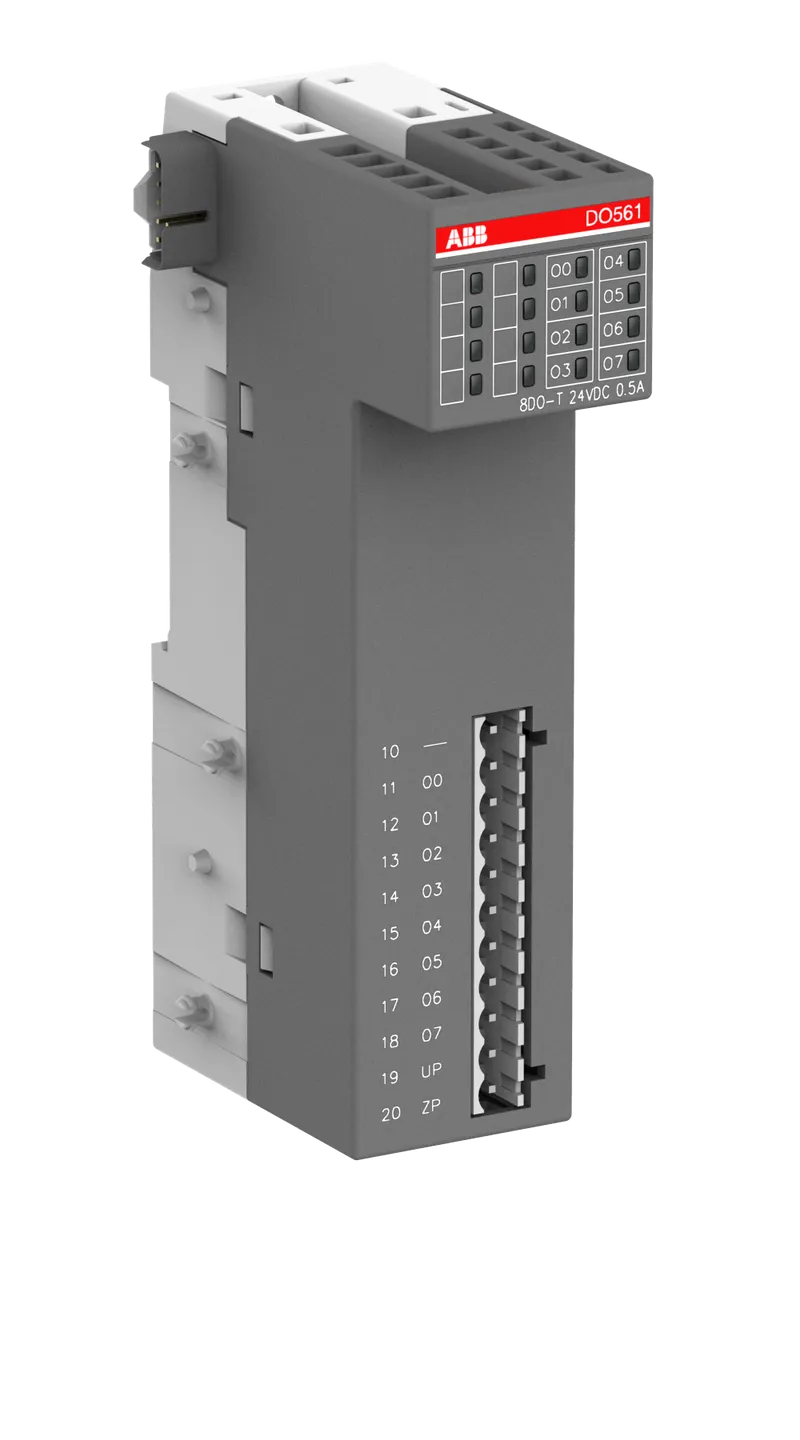

DO561: S500-eCo Digital output module. 8 DO: 24VDC 0.5A. 1-wire.

Specifications

Ordering

CN8	85389091
Invoice Description	Digital output module. 8 DO: 24VDC 0.5A (DO561)
Made To Order	No
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Selling Unit of Measure	piece

Dimensions

Product Net Weight	0.118 kg kg
Product Net Depth / Length	135 mm mm
Product Net Height	74 mm mm
Product Net Width	34 mm mm
Gross Weight	0.22 kg kg
Package Level 1 Depth / Length	93 mm mm
Package Level 1 Height	63 mm mm
Package Level 1 Width	170 mm mm
Package Level 1 Units	1 carton

Certificates and Declarations

Declaration of Conformity - CE	3AXD10002007200
REACH Date	20241206
REACH Declaration	3ADR980139
REACH Information	True - contains substances > 0.1 mass percentage
SCIP	2eb4df9f-fadb-42d7-9bd4-222520fe1d85 Germany
RoHS Declaration	3AXD10002007200
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Technical

Function	8 DO: 24VDC 0.5A
Number of Digital Outputs	8
Output	Transistor
Output Voltage Type	DC
Output Voltage (Uout)	24 V V
Output Current	0.5 A A
Output Voltage Maximum	20.4 … 28.8 V V
Connection Type	Pluggable
Degree of Protection	IP20
Supply Voltage	20.4 … 28.8 V DC V
Ambient Air Temperature	Operation 0 ... +60 °C, Storage -40 ... +70 °C
