Available on request
DI571
MPN: 1TNE968902R2103 · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | S500-eCo I/O modules |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.13 kg |
Shipping & availability
When can 1TNE968902R2103 be shipped?
1TNE968902R2103 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1TNE968902R2103 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1TNE968902R2103 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1TNE968902R2103, subject to availability and destination.

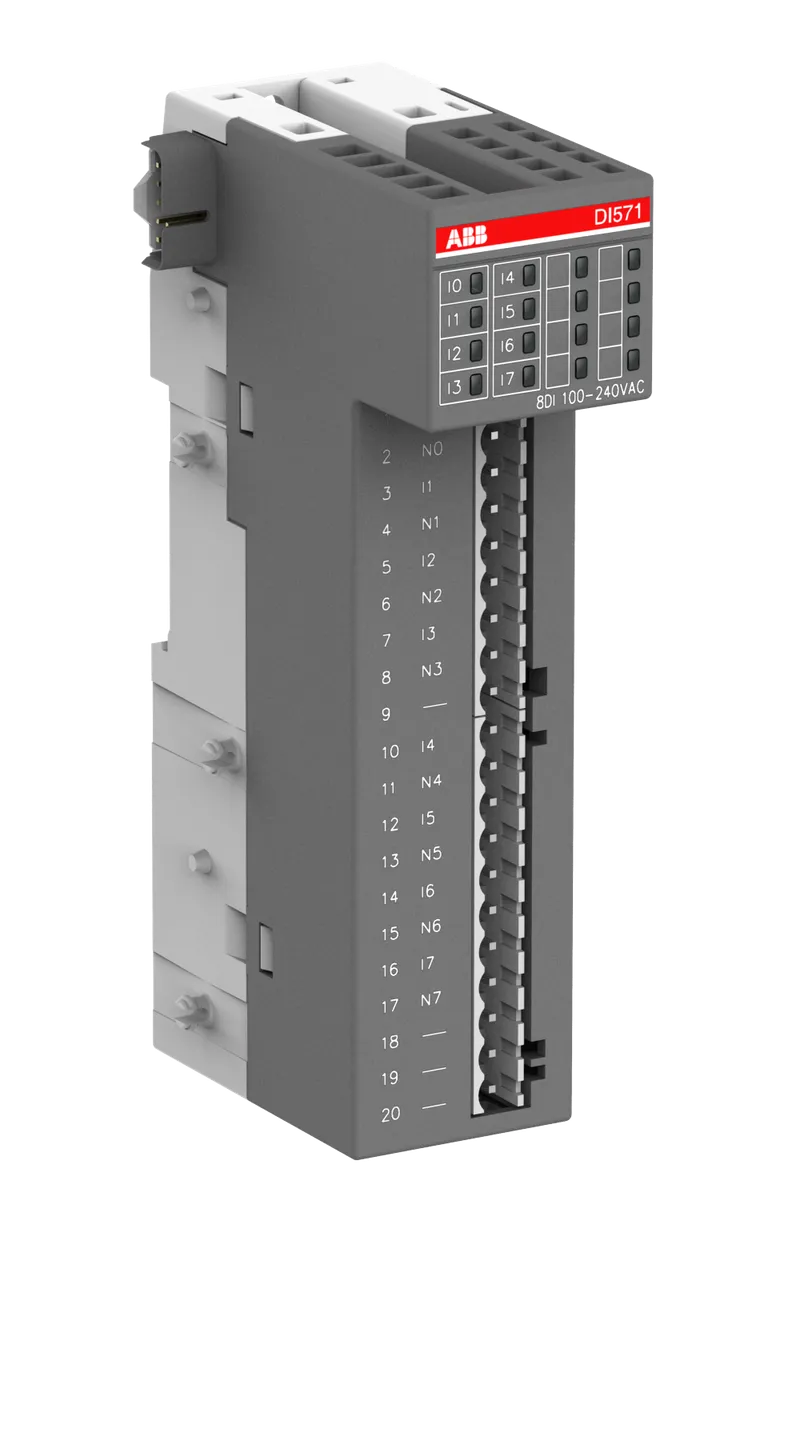

DI571: S500-eCo Digital input module. 8 DI: 100..240VAC. 2-wire
Specifications
Ordering
| CN8 | 85371091 |
| Invoice Description | Digital input module. 8 DI: 100..240VAC (DI571) |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Selling Unit of Measure | piece |
Dimensions
| Product Net Weight | 0.129 kg kg |
| Product Net Depth / Length | 135 mm mm |
| Product Net Height | 74 mm mm |
| Product Net Width | 34 mm mm |
| Gross Weight | 0.19 kg kg |
| Package Level 1 Depth / Length | 93 mm mm |
| Package Level 1 Height | 63 mm mm |
| Package Level 1 Width | 170 mm mm |
| Package Level 1 Units | 1 carton |
Certificates and Declarations
| Declaration of Conformity - CE | 3AXD10002007200 |
| REACH Date | 20241206 |
| REACH Declaration | 3ADR980139 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| SCIP | d55e12cc-c96e-425b-a1c9-78af6c501e25 China |
| RoHS Declaration | 3AXD10002007200 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
Technical
| Function | 8 DI: 100..240VAC |
| Number of Digital Inputs | 8 |
| Input Voltage Type | AC |
| Input Current | 8 mA |
| Maximum Input Voltage | 0 ... 264 V V |
| Delay Time (τ) | 15 … 30 ms |
| Connection Type | Pluggable |
| Degree of Protection | IP20 |
| Ambient Air Temperature | Operation 0 ... +60 °C, Storage -40 ... +70 °C |
Additional Information
| Product Main Type | DI571 |
| Product Name | Distributed Automation I/Os |
External Classifications and Standards
| eClass | 27-24-22-04 |
| ETIM 8 | EC001419 - PLC digital I/O-module |
| ETIM 9 | EC001419 - PLC digital I/O-module |
| ETIM 10 | EC001419 - PLC digital I/O-module |
| UNSPSC | 32151705 |
Environmental
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
