CP450T

Name: CP450T
Brand: ABB
SKU: 1SBP260188R1001

MPN: 1SBP260188R1001 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Leaflets
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 1SBP260188R1001 be shipped?

1SBP260188R1001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SBP260188R1001 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SBP260188R1001 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SBP260188R1001, subject to availability and destination.

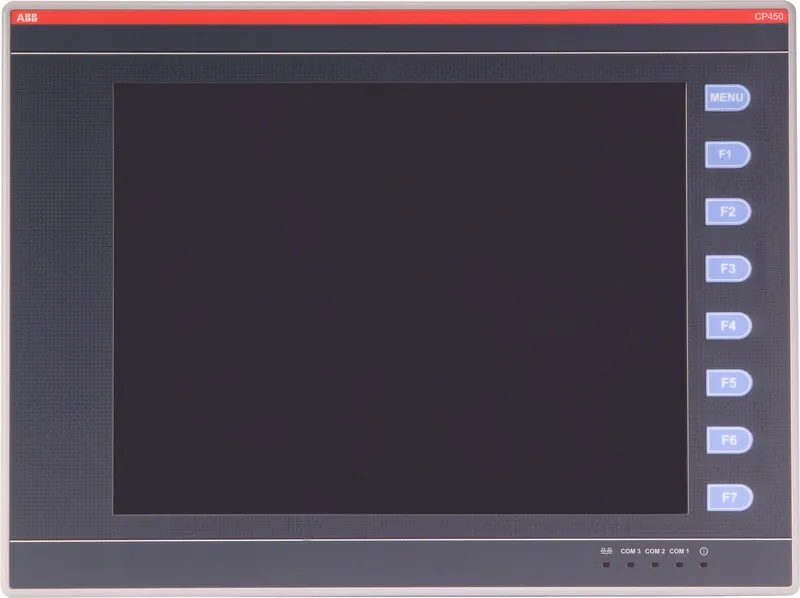

CP450 T Control Panel 1 menu 7 defined keys 10.4” TFT Touch screen 64K Colors

Specifications

Additional Information

ABB Type Designation	CP450T
Ambient Air Temperature	Operation 0 ... +50 °C, Storage -10 ... +60 °C
Battery Type	Portable
CN8	85371091
Communication	Depend on Driver
Communication Interface	no
Communication Speed	4.8 ... 187.5 kBd
Country or Territory of Origin	Taiwan (Chinese Taipei), Germany
cUL Certificate	1SAA960000-1709
Customs Tariff Number	85371091
Data Sheet, Technical Information	1SBC159107L0202
Declaration of Conformity - CE	1SBD240578C1000
Display Type	TFT Touch and Keys
EAN	3471522601889
eClass	27-33-02-01
Environmental Information	1SBD240188E1000
Fieldbus Interface Type	Modbus RTUAC500_ModbusASCIIothers (contact us)
Frame Size	Undefined
Fuse Size	3.6 x 10_MMTx
Fuse Type	SLEEK.36ESr
Gross Weight	3.12 kg kg
GSD-file for PROFIBUS Communication	No
Instructions and Manuals	1SBC159105M0201
Instructions and Manuals (Part 2)	1SBC159106M0202
Invoice Description	CP450 T Control Panel 10.4” TFT Touch sc
Made To Order	No
Memory Size User Data	512 kB
Memory Size User Program	8000 kB
Memory Type User Data	512 kilobyte RAM
Memory Type User Program	8 MB ROM
Minimum Order Quantity	1 piece
Mounting on DIN Rail	No
Mounting Position	0 to 135 °
Mounting Type	Front face
Number of Characters Per Line	80
Number of Display Lines	60
Number of Function Keys	7
Order Multiple	1 piece
Power Consumption (@Pcons)	30 V·A V
Power Supply	24 V DC V
Product Main Type	CP450
Product Name	Control Panel
Product Net Depth / Length	52 mm mm
Product Net Height	222 mm mm
Product Net Weight	1.9 kg kg
Product Net Width	297 mm mm
Product Type	PLC-CP400
Profibus	No
Programming Software	CP400 Soft
Quote Only	No
Real-time Clock	Yes
Release Type	V10.10.10
RoHS Declaration	1SBD340002R0202
Screen Color	64k colors
Screen Resolution	640 x 480 pixel
Screen Size	4:3 screen 10.4 in
Screen Type	TFT color, CCFL backlight, touch screen
Security	password protection with 9 user levels
Selling Unit of Measure	piece
Serial Port 1 Type	RS232/RS485
Serial Port 2 Type	RS232/RS422/RS485
Serial Port 3 Type	RS232RS485
Service Life	50000 hour
Short Description	CP450 T Control Panel 10.4” TFT Touch screen 256
Short-Circuit Protective Devices	gG Type Fuses Integrated
Software Function	alarm managementrecipe managementtrendsmacro & laddersub-screen
Stocked At (Warehouses)	Menden, Germany, Bairro Santo Antonio, Brazil
Supply Voltage	20.4 ... 27.6 V DC V
UL Certificate	NRAQ.E240320
UNSPSC	32151703
USB Port 1 Type	2 Host Ver. 2.0
USB Port 2 Type	1 Device Ver. 2.0
Viewing Area Height	160.4 mm mm
Viewing Area Length	213.2 mm mm
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm) cm
