CP502

Name: CP502
Brand: ABB
SKU: 1SBP260171R1001

MPN: 1SBP260171R1001 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Leaflets
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 1SBP260171R1001 be shipped?

1SBP260171R1001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SBP260171R1001 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SBP260171R1001 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SBP260171R1001, subject to availability and destination.

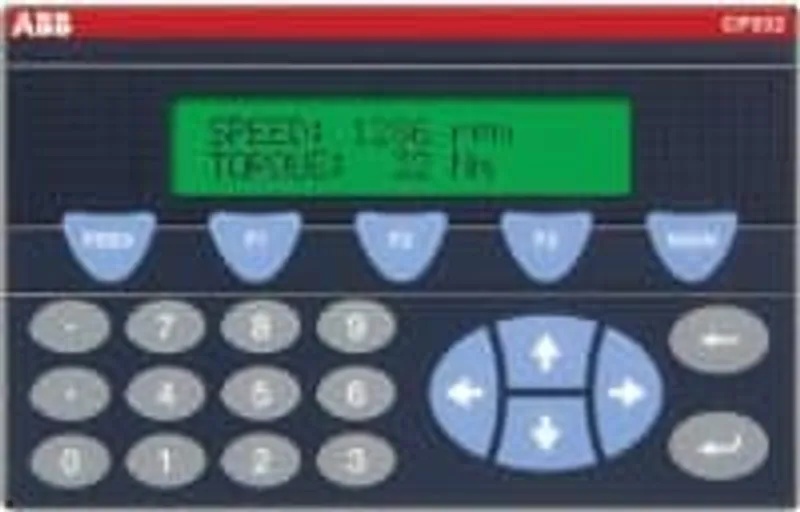

Control Panel 3 programmable + 8 function Keys LCD text diplay 2 line 20 Characteres

Specifications

Additional Information

ABB Type Designation	CP502
Ambient Air Temperature	Operation 0 ... +50 °C, Storage -20 ... +70 °C
Battery Type	Portable
Character Height	5.55 mm mm
CN8	84716070
Communication	Depend on Driver
Communication Interface	no
Communication Speed	9.6 ... 57.6 kBd
Country or Territory of Origin	Sweden
CSA Certificate	NRAG7.E224886
Customs Tariff Number	84716070
Data Sheet, Technical Information	1SBC159001M6501
Declaration of Conformity - CE	1SBD240563C1000
Degree of Protection	IP65
Display Type	STN Text
Environmental Information	1SBD240171E1000
Fieldbus Interface Type	Modbus RTUAC500_ModbusASCIIothers (contact us)
Frame Size	Undefined
Fuse Size	5 x 20_MMTx
Fuse Type	800 mAT
Gross Weight	0.5 kg kg
GSD-file for PROFIBUS Communication	No
Instructions and Manuals	1SBC159002M0202
Invoice Description	CP502 Control Panel, CP500soft needed
LR Certificate	LRS_0620036
Made To Order	No
Memory Size	64 kB
Memory Size User Data	64 kB
Memory Size User Program	64 kB
Memory Type User Data	64 kilobyte non-volatile RAM
Memory Type User Program	64 KB Flash EPROM
Minimum Order Quantity	1 piece
Mounting on DIN Rail	No
Mounting Type	Front face
Number of Characters Per Line	20
Number of Display Lines	2
Number of Function Keys	11
Order Multiple	1 piece
Power Consumption (@Pcons)	3.6 V·A V
Power Supply	24 V DC V
Product Depth	46.5 mm mm
Product Main Type	CP502
Product Name	Control Panel
Product Net Depth / Length	29 mm mm
Product Net Height	100 mm mm
Product Net Weight	0.37 kg kg
Product Net Width	142 mm mm
Product Type	PLC-CP500
Profibus	No
Programming Software	CP500 Soft
Quote Only	No
Real-time Clock	Yes
Release Type	V1.02
Screen Color	LCD with backlight
Screen Size	2.8 in
Screen Type	STN Text
Security	password protection with 8 user levels
Selling Unit of Measure	piece
Serial Port 1 Type	PR,MODBUS,ASCII,others
Serial Port 2 Type	PR,MODBUS,ASCII,others
Service Life	50000 hour
Short Description	Control Panel 3+8 function Keys LCD text diplay
Short-Circuit Protective Devices	gG Type Fuses Integrated
Software Function	recipe management
Stocked At (Warehouses)	Menden, Germany, Wickliffe, Ohio, United States, New Berlin,Wisconsin, United States
Supply Voltage	20 ... 30 V DC V
UL Certificate	NRAG.E224886
USB Port 1 Type	no
USB Port 2 Type	no
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm) cm
