Available on request

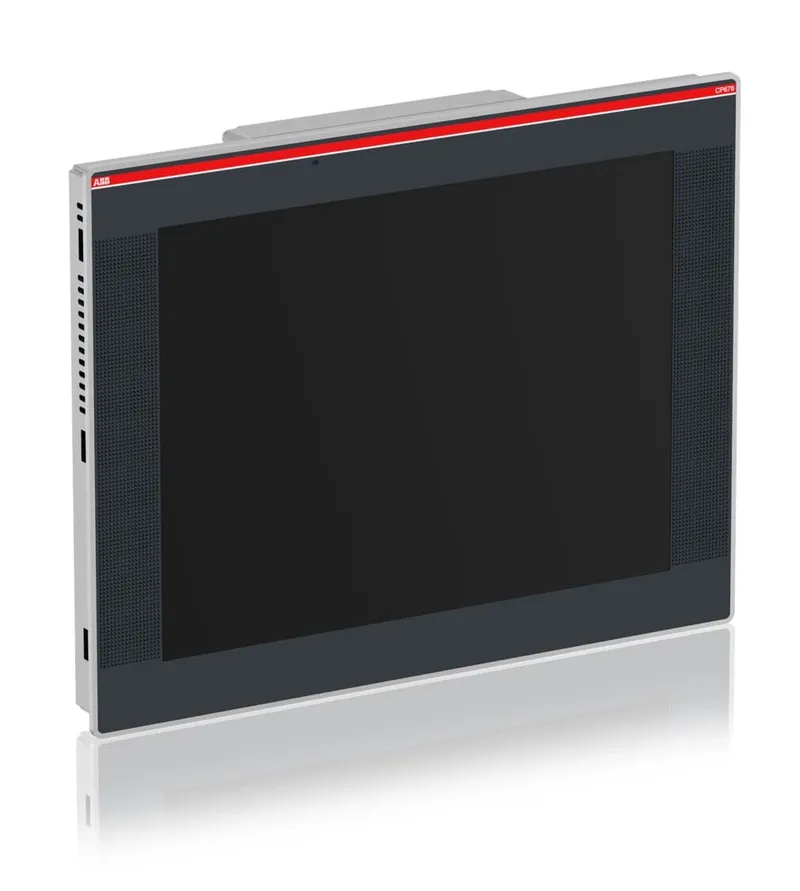

CP676
MPN: 1SAP576100R0001 · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Leaflets |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 1SAP576100R0001 be shipped?
1SAP576100R0001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SAP576100R0001 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SAP576100R0001 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SAP576100R0001, subject to availability and destination.
CP676 Control Panel 15" TFT touch screen, 64 K colors, 1024 x 768 pixel, PB610 runtime license
Specifications
Additional Information
| ABB Type Designation | CP676 |
| Ambient Air Temperature | Operation 0 ... +50 °C, Storage -20 ... +70 °C |
| CN8 | 85371091 |
| Communication Interface | 2x Ethernet 10/100Mbit, 1x RS-232/-422/-485, 2x USB 2.0 Host, 1x SD-card slot, 2x Expansion slot |
| Country or Territory of Origin | Italy, Germany |
| Customs Tariff Number | 85371091 |
| Degree of Protection | acc. to IEC 60529 Front IP66, acc. to IEC 60529 Housing IP20 |
| EAN | 4013614493171 |
| eClass | 27-33-02-01 |
| Frame Size | Undefined |
| GL Certificate | 1SAA960004-0304 |
| Gross Weight | 4.9 kg kg |
| Housing Material | Front side: Aluminium, Reverse side: Aluminium |
| Invoice Description | CP676 Control Panel 15" TFT touch screen |
| Made To Order | No |
| Memory Size User Data | 256 MB |
| Memory Size User Program | 256 MB |
| Memory Type User Data | Flash Disk |
| Memory Type User Program | DDR RAM |
| Minimum Order Quantity | 1 piece |
| Mounting Type | Front face |
| Order Multiple | 1 piece |
| Package Level 1 Depth / Length | 510 mm mm |
| Package Level 1 Height | 145 mm mm |
| Package Level 1 Units | 1 carton |
| Package Level 1 Width | 410 mm mm |
| Power Consumption (@Pcons) | 34 W W |
| Power Supply | 24 (18 ... 30) V DC V |
| Product Main Type | CP676 |
| Product Name | Control Panels |
| Product Net Depth / Length | 64 mm mm |
| Product Net Height | 307 mm mm |
| Product Net Weight | 3.3 kg kg |
| Product Net Width | 392 mm mm |
| Product Type | PLC-CP600 |
| Programming Software | PB610 Panel Builder 600 |
| Quote Only | No |
| Real-time Clock | Hardware clock, battery back-up |
| Replaced Product ID (OLD) | 1SAP575100R0001 |
| SCIP | 8ed3b3fc-07b0-437a-89a8-26d502a64d2c Germany |
| Screen Color | 64k colors |
| Screen Resolution | 1024 x 768 pixel |
| Screen Size | 4:3 screen 15 in |
| Screen Type | TFT color, LED backlight, touch screen |
| Security | Password protection with 8 user levels |
| Selling Unit of Measure | piece |
| Serial Port 1 Type | RS232/RS422/RS485 |
| Service Life | 40000 hour |
| Short Description | CP676 Control Panel 15" TFT touch screen |
| Stocked At (Warehouses) | Menden, Germany, Hangzhou, China, Bairro Santo Antonio, Brazil |
| UNSPSC | 32151703 |
| USB Port 1 Type | Host, version 2.0 |
| USB Port 2 Type | Host, version 2.0 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
