CP6610
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | CP600-Pro |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 1.7 kg |
Shipping & availability
When can 1SAP561010R0001 be shipped?
1SAP561010R0001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SAP561010R0001 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SAP561010R0001 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SAP561010R0001, subject to availability and destination.

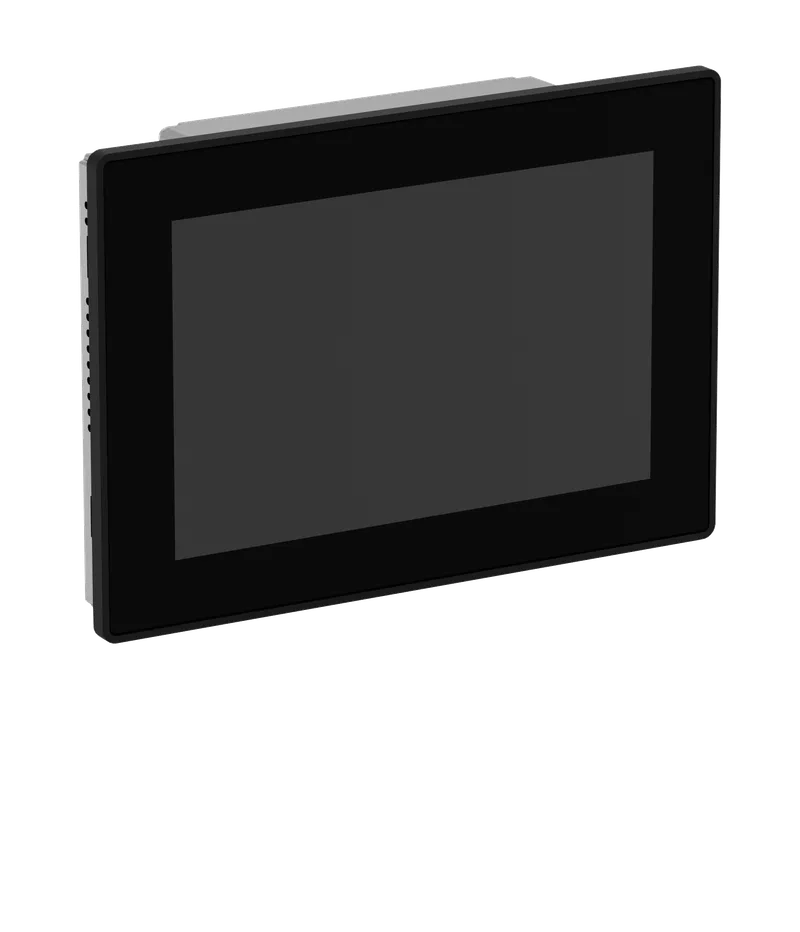

CP6610: CP600-Pro Control panel. 10.1" TFT multi-touch screen, 16 M colors, 1280 x 800 pixel, Chromium Browser. PB610 applications.
Specifications
Ordering
| CN8 | 85371091 |
| Invoice Description | Control panel. 10.1" TFT multi-touch screen, 16 M colors, 1280 x 800 pixel, Chromium Browser (CP6610) M |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Selling Unit of Measure | piece |
Dimensions
| Product Net Weight | 1.7 kg kg |
| Product Net Depth / Length | 64 mm mm |
| Product Net Height | 197 mm mm |
| Product Net Width | 282 mm mm |
| Gross Weight | 2.5 kg kg |
| Package Level 1 Depth / Length | 370 mm mm |
| Package Level 1 Height | 120 mm mm |
| Package Level 1 Width | 270 mm mm |
| Package Level 1 Units | 1 carton |
Certificates and Declarations
| Declaration of Conformity - CE | 3ADR980149 |
| REACH Date | 20241206 |
| REACH Declaration | 3ADR980139 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| SCIP | 1ee17d0f-5264-43f0-a1ed-f5092f74b01c Germany |
| RoHS Declaration | 3ADR980149 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
Technical
| Function | 10.1" TFT multi-touch screen, 16 M colors, 1280 x 800 pixel, Chromium Browser M |
| Screen Size | 10.1 in |
| Screen Color | 16000000 Colors |
| Screen Resolution | 1280 x 800 pixel |
| Display Type | TFT Capacitive Multitouch |
| Number of Hardware Interfaces | Industrial Ethernet 3, Other 1, Parallel 0, RS-232 0, RS-422 0, RS-485 0, Serial TTY 0, USB 2, Wireless 0, PROFINET 0 |
| Memory Size | 240000 kB |
| Security | 50 |
| Input Voltage Type | DC |
| Degree of Protection | Front IP66 |
| Supply Voltage | 18 … 32 V DC V |
| Built-In Depth (t2) | 52 mm mm |
| Ambient Air Temperature | Operation -20 … +60 °C |
Additional Information
| Product Main Type | CP6610 |
| Product Name | Control Panels |
External Classifications and Standards
| eClass | 27-33-02-01 |
| ETIM 8 | EC001412 - Graphic panel |
| ETIM 9 | EC001412 - Graphic panel |
| ETIM 10 | EC001412 - Graphic panel |
| UNSPSC | 32151703 |
Environmental
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
