DI524-XC
MPN: 1SAP440000R0001 · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | S500-XC I/O modules Terminal units |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.1 kg |
Shipping & availability
When can 1SAP440000R0001 be shipped?
1SAP440000R0001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SAP440000R0001 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SAP440000R0001 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SAP440000R0001, subject to availability and destination.

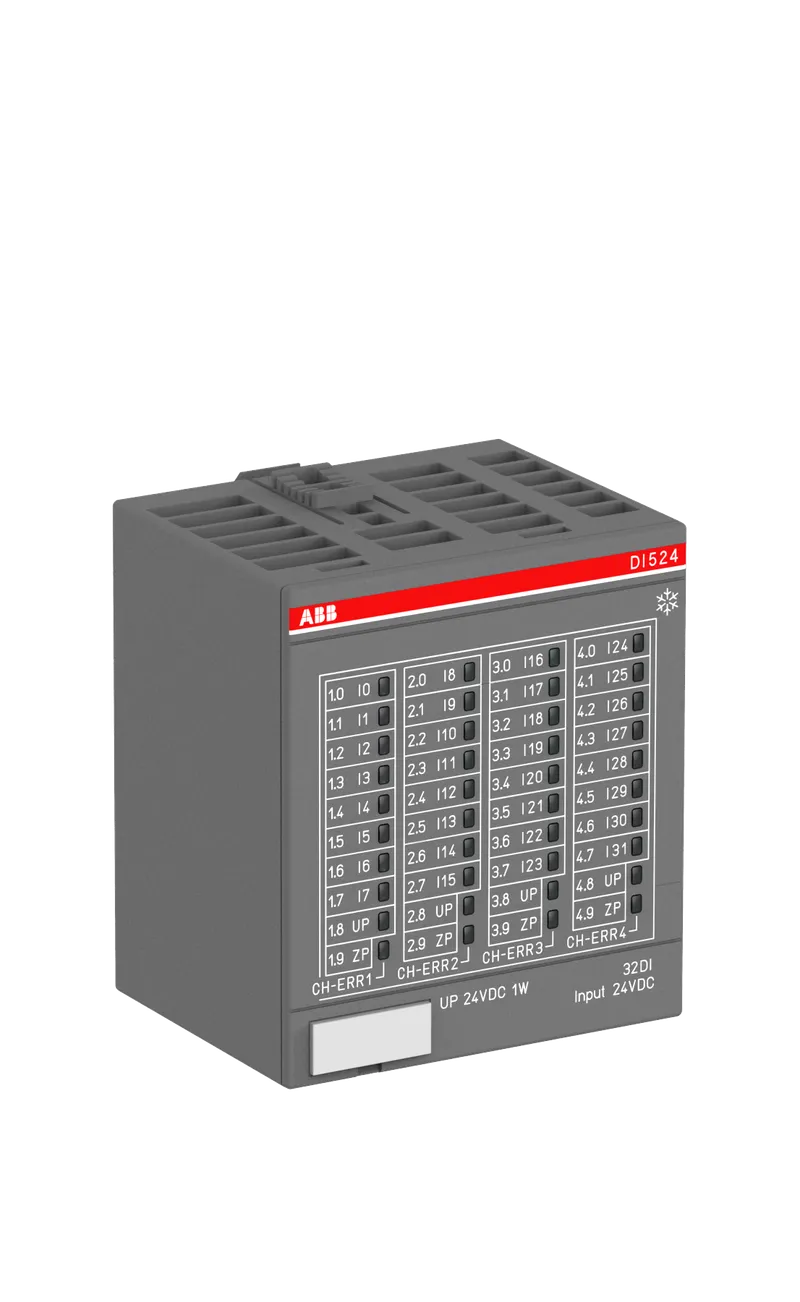

DI524-XC: S500 Digital input module. 32 DI: 24VDC. 1-wire. eXtreme Conditions
Specifications
Ordering
| CN8 | 85389091 |
| Invoice Description | Digital input module. 32 DI: 24VDC (DI524-XC) |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Selling Unit of Measure | piece |
Dimensions
| Product Net Weight | 0.101 kg kg |
| Product Net Depth / Length | 62 mm mm |
| Product Net Height | 76 mm mm |
| Product Net Width | 67.5 mm mm |
| Gross Weight | 0.125 kg kg |
| Package Level 1 Depth / Length | 84 mm mm |
| Package Level 1 Height | 72 mm mm |
| Package Level 1 Width | 71 mm mm |
| Package Level 1 Units | 1 carton |
Certificates and Declarations
| Declaration of Conformity - CE | 3ADR980146 |
| REACH Date | 20241206 |
| REACH Declaration | 3ADR980139 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| SCIP | 563a90ce-68af-4e27-a136-98c5be6c0b4f Germany |
| RoHS Declaration | 3ADR980146 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
Technical
| Function | 32 DI: 24VDC |
| Number of Digital Inputs | 32 |
| Input Voltage Type | DC |
| Input Current | 5 mA |
| Maximum Input Voltage | 0 ... 30 V V |
| Delay Time (τ) | 0.1 … 32 ms |
| Degree of Protection | IP20 |
| Supply Voltage | 20.4 … 28.8 V DC V |
| Ambient Air Temperature | Operation -30...+70 °C, Storage -40...+85 °C |
Additional Information
| Product Main Type | DI524 |
| Product Name | Distributed Automation I/Os |
External Classifications and Standards
| eClass | 27-24-22-04 |
| ETIM 8 | EC001419 - PLC digital I/O-module |
| ETIM 9 | EC001419 - PLC digital I/O-module |
| ETIM 10 | EC001419 - PLC digital I/O-module |
| UNSPSC | 32151705 |
Environmental
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
