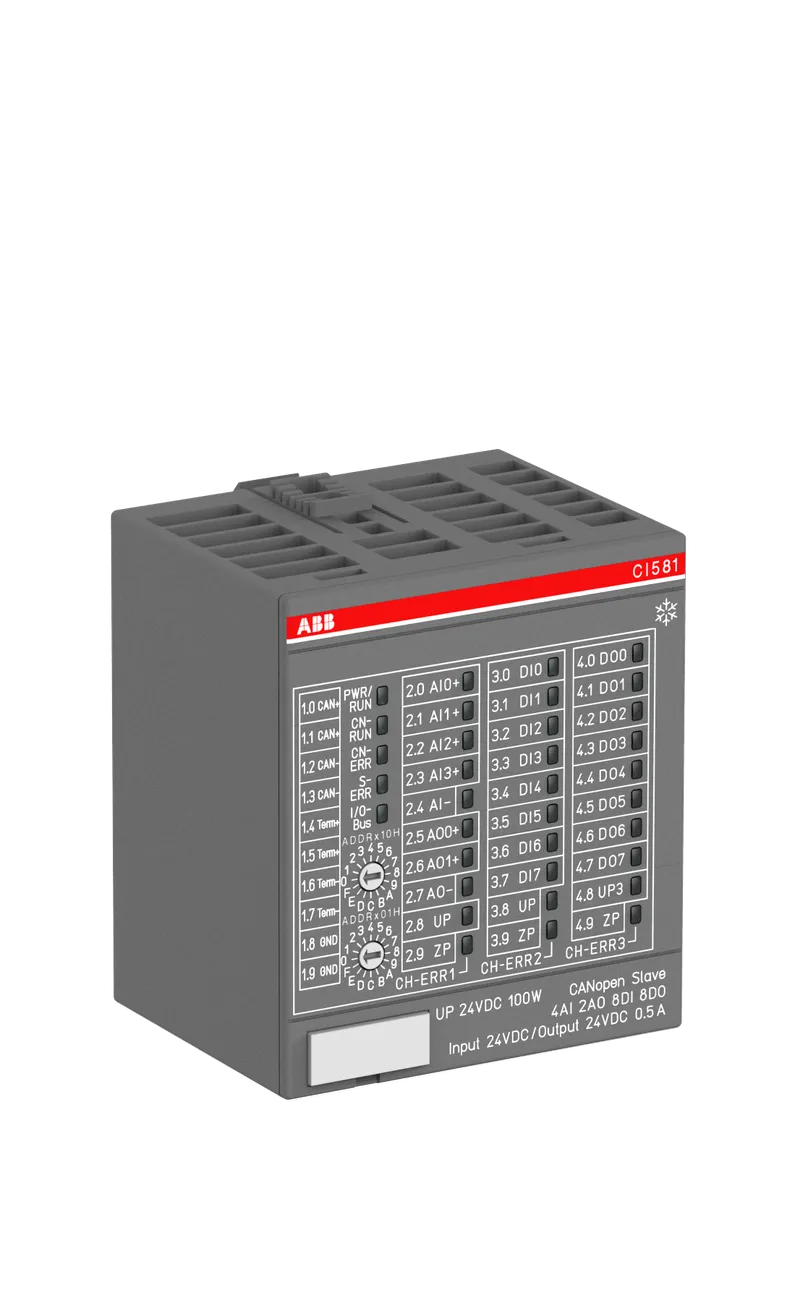

CI581-CN-XC
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | AC500-XC Communication interface modules |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.14 kg |
Shipping & availability
When can 1SAP428100R0001 be shipped?
1SAP428100R0001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SAP428100R0001 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SAP428100R0001 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SAP428100R0001, subject to availability and destination.
CI581-CN-XC: S500 Interface module. CANopen slave. 4 AI: U, I, RTD. 2 AO: U, I. 8 DI: 24VDC. 8 DO: 24VDC 0.5A. Extendable by up to 10 I/O modules. eXtreme Conditions
Specifications
Ordering
| CN8 | 85389091 |
| Invoice Description | Interface module. CANopen slave. 4 AI: U, I, RTD. 2 AO: U, I. 8 DI: 24VDC. 8 DO: 24VDC 0.5A (CI581-CN-XC) |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Selling Unit of Measure | piece |
Dimensions
| Product Net Weight | 0.139 kg kg |
| Product Net Depth / Length | 62 mm mm |
| Product Net Height | 76 mm mm |
| Product Net Width | 67.5 mm mm |
| Gross Weight | 0.165 kg kg |
| Package Level 1 Depth / Length | 84 mm mm |
| Package Level 1 Height | 72 mm mm |
| Package Level 1 Width | 71 mm mm |
| Package Level 1 Units | 1 carton |
Certificates and Declarations
| Declaration of Conformity - CE | 3ADR980140 |
| REACH Date | 20241206 |
| REACH Declaration | 3ADR980139 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| SCIP | 41781962-c46d-4647-90e8-c134f3de8180 Germany |
| RoHS Declaration | 3ADR980140 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
Technical
| Function | CANopen slave. 4 AI: U, I, RTD. 2 AO: U, I. 8 DI: 24VDC. 8 DO: 24VDC 0.5A |
| Number of Hardware Interfaces | Industrial Ethernet 0, Other 1, Parallel 0, RS-232 0, RS-422 0, RS-485 0, Serial TTY 0, USB 0, Wireless 0 |
| Analog Inputs | 4 |
| Analog Outputs | 2 |
| Number of Digital Inputs | 8 |
| Number of Digital Outputs | 8 |
| Input Voltage Type | DC |
| Input Voltage (Uin) | 24 V DC V |
| Input Current | 5 mA |
| Delay Time (τ) | 0.1 … 32 ms |
| Output | Transistor |
| Output Voltage Type | DC |
| Output Current | 0.5 A A |
| Output Voltage Maximum | 20.4 … 28.8 V V |
| Degree of Protection | IP20 |
| Supply Voltage | 20.4 ... 28.8 V DC V |
| Ambient Air Temperature | Operation -30...+70 °C, Storage -40...+85 °C |
Additional Information
| Product Main Type | CI581 |
| Product Name | Distributed Automation I/Os |
External Classifications and Standards
| eClass | 27-24-26-07 |
| ETIM 8 | EC001604 - Fieldbus, decentr. periphery - communication module |
| ETIM 9 | EC001604 - Fieldbus, decentr. periphery - communication module |
| ETIM 10 | EC001604 - Fieldbus, decentr. periphery - communication module |
| UNSPSC | 32151705 |
Environmental
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
