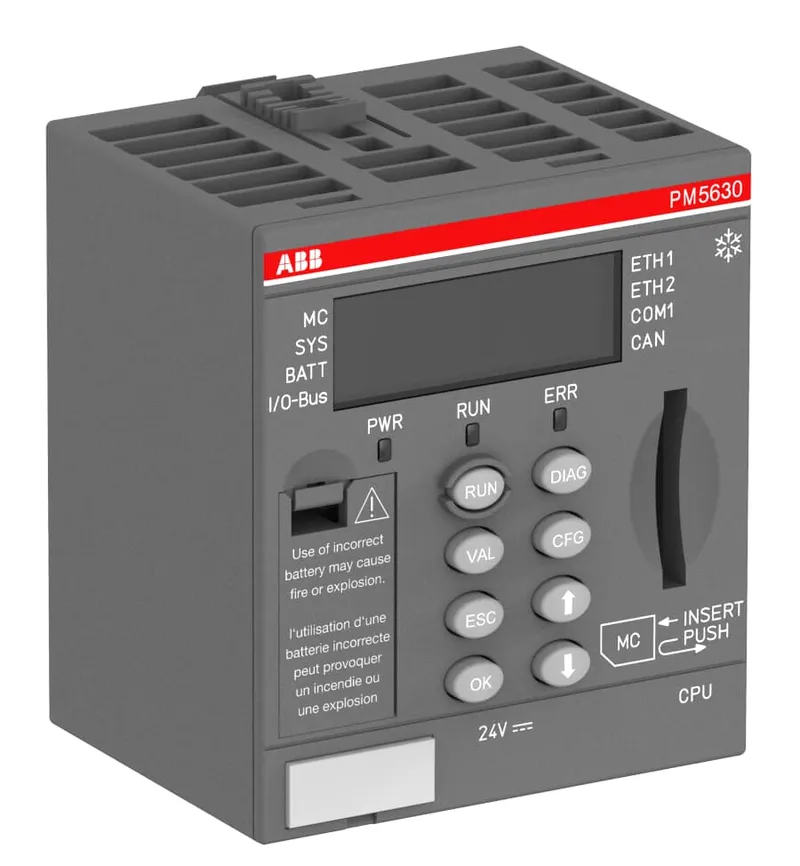

PM5630-2ETH-XC

Name: PM5630-2ETH-XC
Brand: ABB
SKU: 1SAP331000R0378

MPN: 1SAP331000R0378 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	AC500-XC CPUs
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.14 kg

Shipping & availability

When can 1SAP331000R0378 be shipped?

1SAP331000R0378 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SAP331000R0378 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SAP331000R0378 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SAP331000R0378, subject to availability and destination.

PM5630-2ETH-XC: AC500 Processor module. RS485 non isolated. Spring terminals included. eXtreme Conditions

Specifications

Ordering

CN8	85389091
Invoice Description	Processor module. RS485 non isolated. Spring terminals included (PM5630-2ETH-XC)
Made To Order	No
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Selling Unit of Measure	piece

Dimensions

Product Net Weight	0.135 kg kg
Product Net Depth / Length	62 mm mm
Product Net Height	76 mm mm
Product Net Width	67.5 mm mm
Gross Weight	0.158 kg kg
Package Level 1 Depth / Length	84 mm mm
Package Level 1 Height	72 mm mm
Package Level 1 Width	71 mm mm
Package Level 1 Units	1 carton

Certificates and Declarations

Declaration of Conformity - CE	3ADR980144
REACH Date	20241206
REACH Declaration	3ADR980139
REACH Information	True - contains substances > 0.1 mass percentage
SCIP	d6be0cce-1de8-4d5f-bbc9-8a06e4792b9f Germany
RoHS Declaration	3ADR980144
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Technical

Function	Memory 8MB. Interfaces: 2 Ethernet, RS232/485, CAN. Display
Memory Size	39256 kB
Memory Type User Data	RAM
Controller Processing Time	0.00002 ms
Rated Voltage (Ur)	24 V DC V
Supply Voltage	20.4 … 28.8 V DC V
