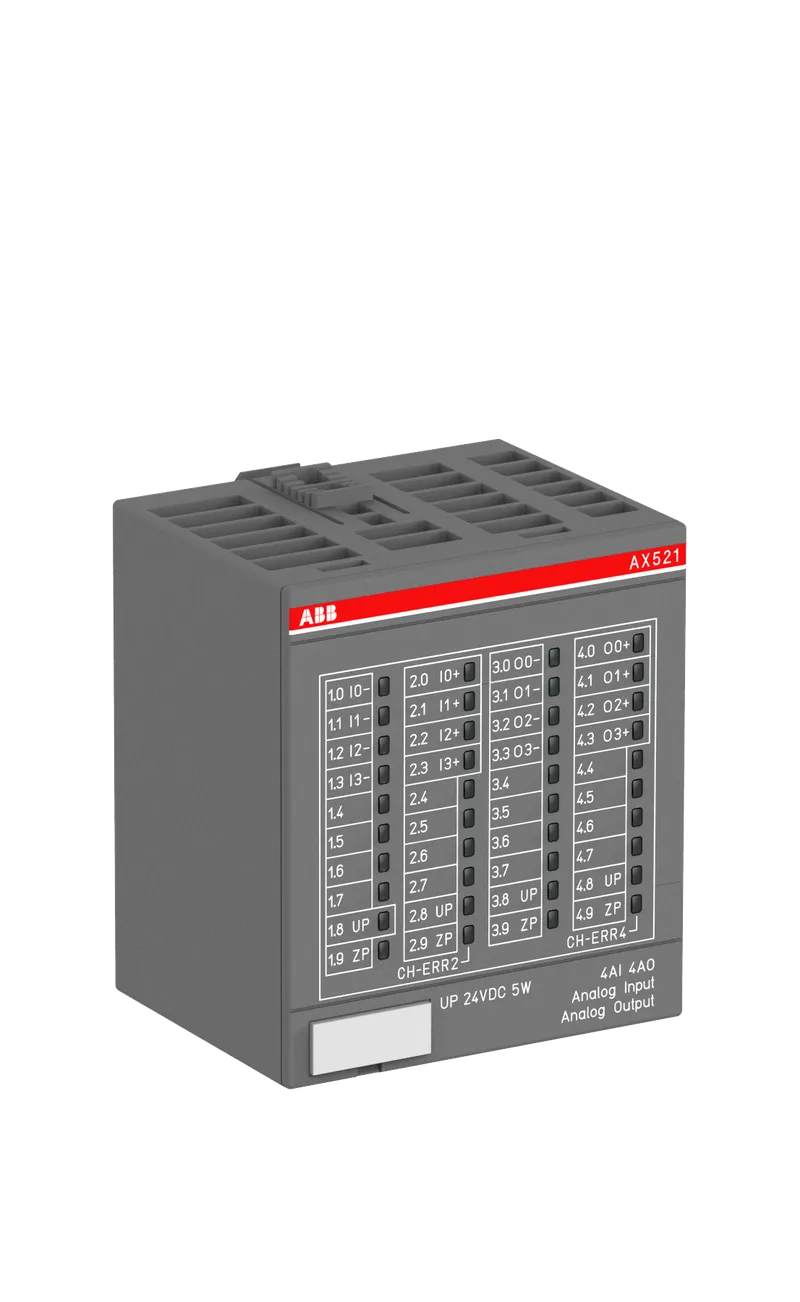

AX521

Name: AX521
Brand: ABB
SKU: 1SAP250100R0001

MPN: 1SAP250100R0001 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	S500-eCo I/O modules
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.13 kg

Shipping & availability

When can 1SAP250100R0001 be shipped?

1SAP250100R0001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SAP250100R0001 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SAP250100R0001 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SAP250100R0001, subject to availability and destination.

AX521: S500 Analog input/output module. 4 AI: U, I, RTD. 4 AO: U, I. 1-wire.

Specifications

Ordering

CN8	85389091
Invoice Description	Analog input/output module. 4 AI: U, I, RTD. 4 AO: U, I (AX521)
Made To Order	No
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Selling Unit of Measure	piece

Dimensions

Product Net Weight	0.129 kg kg
Product Net Depth / Length	62 mm mm
Product Net Height	76 mm mm
Product Net Width	67.5 mm mm
Gross Weight	0.153 kg kg
Package Level 1 Depth / Length	84 mm mm
Package Level 1 Height	72 mm mm
Package Level 1 Width	71 mm mm
Package Level 1 Units	1 carton

Certificates and Declarations

Declaration of Conformity - CE	3ADR980140
REACH Date	20241206
REACH Declaration	3ADR980139
REACH Information	True - contains substances > 0.1 mass percentage
SCIP	0d69c80f-295f-4f16-9ae7-ddf176ee5ad5 Germany
RoHS Declaration	3ADR980140
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Technical

Function	4 AI: U, I, RTD. 4 AO: U, I
Analog Inputs	4
Input Signal	U, I, RTD, DI
Analog Outputs	4
Output Signal	U, I
Resolution	Analog Input 13 bit, Analog Output 13 bit
Degree of Protection	Housing IP20

Additional Information

Product Main Type	AX521
Product Name	Distributed Automation I/Os

External Classifications and Standards

eClass	27-24-22-02
ETIM 8	EC001420 - PLC analogue I/O-module
ETIM 9	EC001420 - PLC analogue I/O-module
ETIM 10	EC001420 - PLC analogue I/O-module
UNSPSC	32151705
