Available on request
FM562
MPN: 1SAP233100R0001 · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | S500-eCo I/O modules |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.12 kg |
Shipping & availability
When can 1SAP233100R0001 be shipped?
1SAP233100R0001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SAP233100R0001 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SAP233100R0001 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SAP233100R0001, subject to availability and destination.

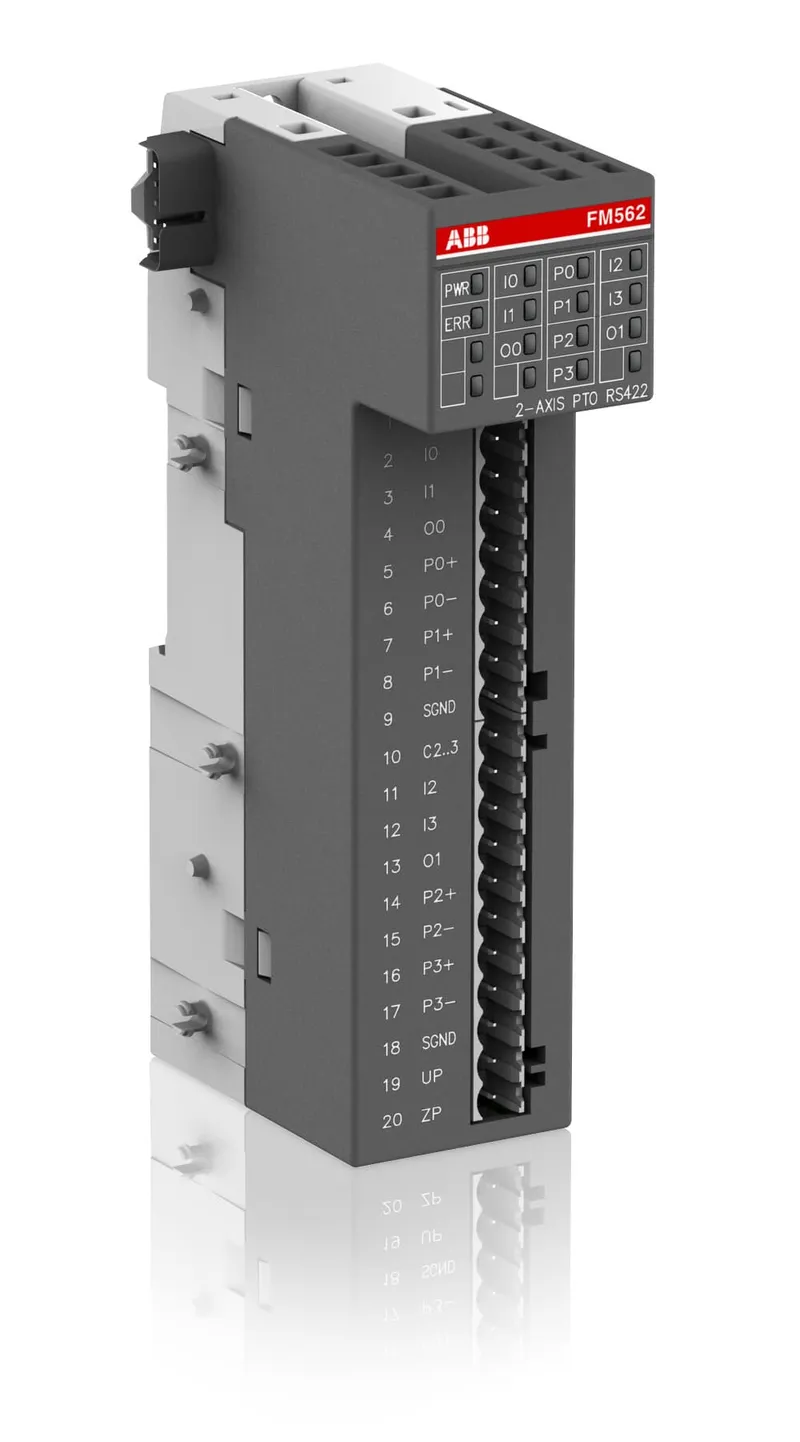

FM562: S500-eCo Function module. For positioning. 2-axis. Pulse outputs RS422. Maximum frequency 250 kHz.
Specifications
Ordering
| CN8 | 85371091 |
| Invoice Description | Function module. For positioning. 2-axis. Pulse outputs RS422. Maximum frequency 250 kHz (FM562) |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Selling Unit of Measure | piece |
Dimensions
| Product Net Weight | 0.118 kg kg |
| Product Net Depth / Length | 75 mm mm |
| Product Net Height | 135 mm mm |
| Product Net Width | 34 mm mm |
| Gross Weight | 0.219 kg kg |
| Package Level 1 Depth / Length | 93 mm mm |
| Package Level 1 Height | 63 mm mm |
| Package Level 1 Width | 170 mm mm |
| Package Level 1 Units | 1 carton |
Certificates and Declarations
| SCIP | 8ce44834-2757-47a2-b403-7c2f2940575a Germany |
Technical
| Function | For positioning. 2-axis. Pulse outputs RS422. Maximum frequency 250 kHz |
| Degree of Protection | IP20 |
Additional Information
| Product Main Type | FM562 |
| Product Name | Distributed Automation PLCs |
External Classifications and Standards
| eClass | 27-24-22-05 |
| ETIM 8 | EC001422 - PLC function/technology module |
| ETIM 9 | EC001422 - PLC function/technology module |
| ETIM 10 | EC001422 - PLC function/technology module |
| UNSPSC | 32151705 |
Environmental
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
