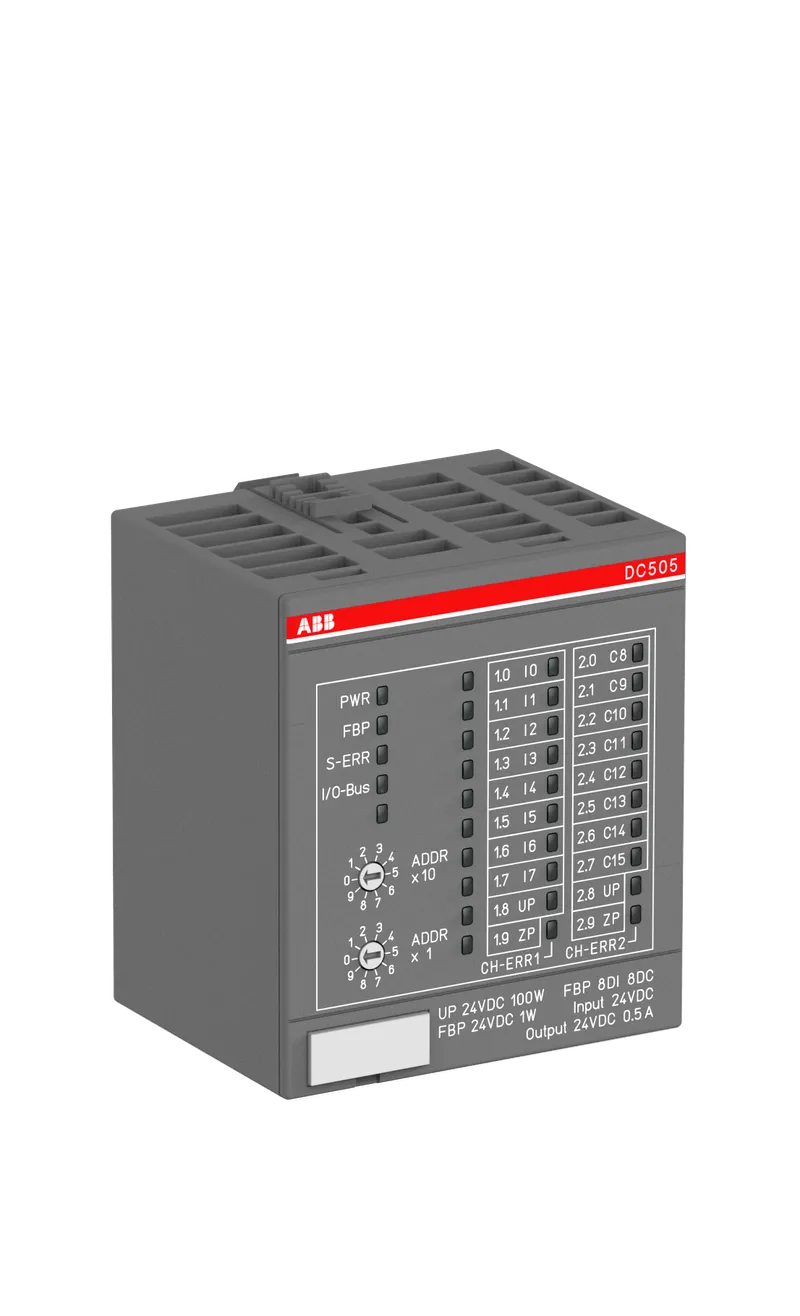

DC505-FBP
MPN: 1SAP220000R0001 · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Leaflets |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 1SAP220000R0001 be shipped?
1SAP220000R0001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SAP220000R0001 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SAP220000R0001 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SAP220000R0001, subject to availability and destination.
DC505-FBP:S500,FBP-Interface Mod.,8DI/8D DI:24VDC,DC:24VDC/0.5A,1/2-wire
Specifications
Additional Information
| ABB Type Designation | DC505-FBP |
| ABS Certificate | 1SAA960002-0106 |
| Ambient Air Temperature | Operation 0 ... +60 °C, Storage -40 ... +70 °C |
| BV Certificate | 1SAA960003-0204 |
| CN8 | 85389091 |
| Country or Territory of Origin | Germany |
| CSA Certificate | 1SAA960000-1712 |
| cUL Certificate | 1SAA960000-1712 |
| cULus Certificate | 1SAA960000-1712 |
| Customs Tariff Number | 85389091 |
| Declaration of Conformity - C-Tick | 1SAA960000-3302 |
| Declaration of Conformity - CE | 1SAD938506-0164 |
| Declaration of Conformity - KCC | 1SAA960001-4801 |
| Degree of Protection | IP20 |
| DESTO EGR | 05962 |
| DNV Certificate | 1SAA960002-0306 |
| EAN | 4016779649025 |
| eClass | 27-24-26-07 |
| Environmental Information | 1SAA960008-2403 |
| Fieldbus Interface Type | FieldBusPlug |
| Frame Size | Undefined |
| GL Certificate | 1SAA960004-0409 |
| GOST Certificate | 1SAA962000-2703 |
| Gross Weight | 0.14 kg kg |
| I/O Option | Bus module with Onboard IO - 8DI / 8DC |
| Invoice Description | DC505-FBP:S500,FBP-Interface Mod.,8DI/8D |
| LR Certificate | 1SAA960002-0506 |
| Made To Order | No |
| Maximum Number of Analog I/Os | 32 AI, 32 AO |
| Maximum Number of Digital I/Os | 240 DI, 176 DO |
| Maximum Operating Altitude Permissible | 2000 m m |
| Minimum Order Quantity | 1 piece |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 mm |
| Mounting Position | Horizontal, Vertical possible with derating |
| Number of Digital Configurable I/Os | 8 |
| Number of Digital Inputs DC 24V | 8 |
| Object Classification Code | K |
| Order Multiple | 1 piece |
| Output Current | 0.5 A A |
| Output Voltage (Uout) | 24 V DC V |
| Power Supply | 24 V DC V |
| Primary Voltage | 24 V DC V |
| Product Depth | 72 mm mm |
| Product Main Type | DC505 |
| Product Name | Distributed Automation I/Os |
| Product Net Depth / Length | 62 mm mm |
| Product Net Height | 76 mm mm |
| Product Net Weight | 0.11 kg kg |
| Product Net Width | 67.5 mm mm |
| Product Type | PLC-AC500 |
| Programming Software | AC500 Control Builder PS501-PROG |
| Quote Only | No |
| Replaced Product ID (OLD) | 1SAP220000R0002 |
| RINA Certificate | 1SAA960003-0807 |
| RMRS Certificate | 1SAA960001-0706 |
| RoHS Declaration | 1SAA960006-4410 |
| RoHS Information | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
| Secondary Current | 0.2 A A |
| Selling Unit of Measure | piece |
| Serial Port 1 Type | FieldBusPlug Interface |
| Serial Port 2 Type | I/O-Bus |
| Short Description | DC505-FBP:S500,FBP-Interface Mod.,8DI/8D |
| Software GSD for Profibus | 1SAJ924091R0104 |
| Special Functions | FieldBusPlug Bus module |
| Stocked At (Warehouses) | Menden, Germany, Bairro Santo Antonio, Brazil |
| Supply Voltage | 24 V DC V |
| UL Certificate | 1SAA960000-1612 |
| UNSPSC | 32151705 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
