Available on request
CM579-PNIO
MPN: 1SAP170901R0101 · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | AC500 communication modules |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.1 kg |
Shipping & availability
When can 1SAP170901R0101 be shipped?
1SAP170901R0101 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SAP170901R0101 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SAP170901R0101 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SAP170901R0101, subject to availability and destination.

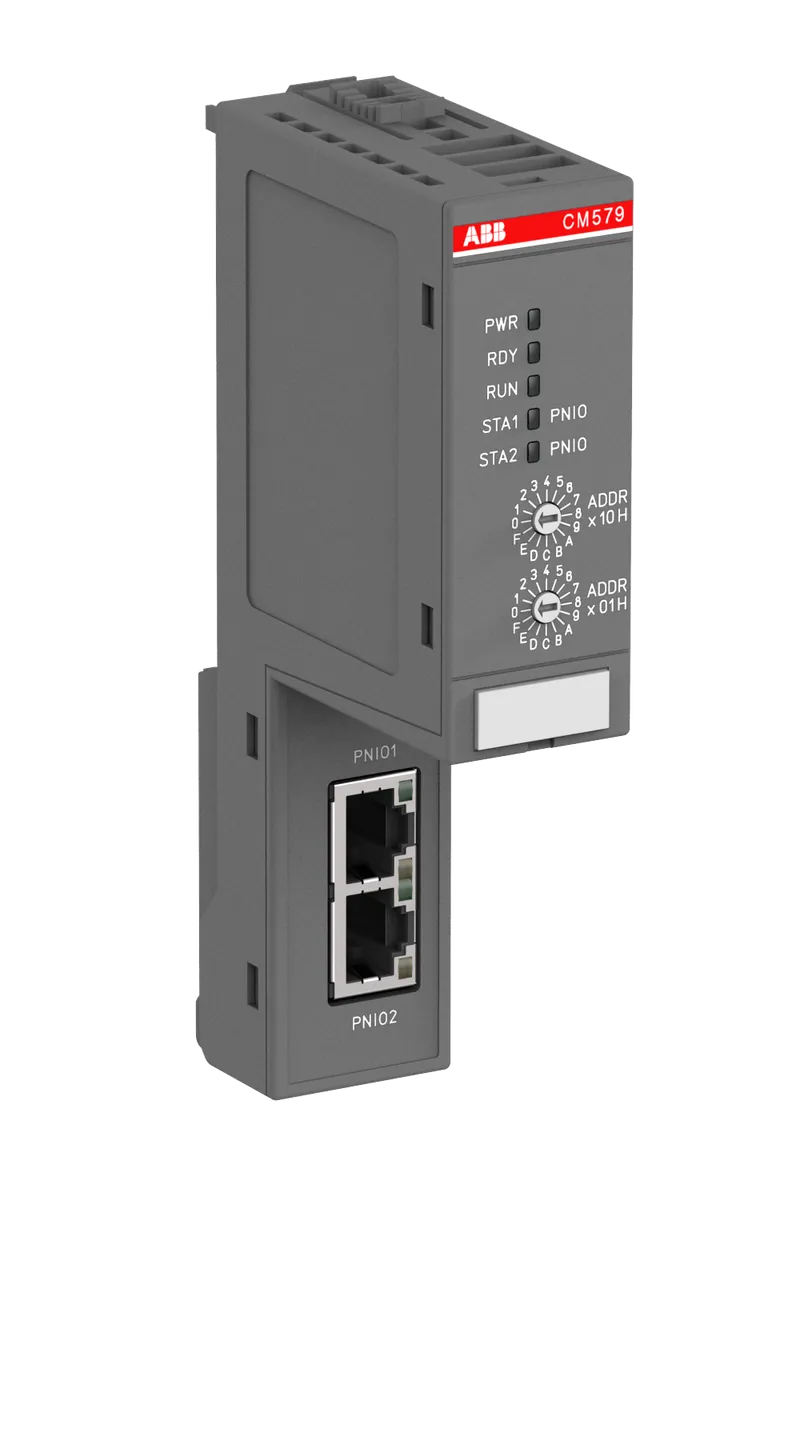

CM579-PNIO: AC500 Communication module. PROFINET IO RT controller. 2 Ethernet interfaces. Switch.
Specifications
Ordering
| CN8 | 85389091 |
| Invoice Description | Communication module. PROFINET IO RT controller (CM579-PNIO) |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Selling Unit of Measure | piece |
Dimensions
| Product Net Weight | 0.1 kg kg |
| Product Net Depth / Length | 62 mm mm |
| Product Net Height | 135 mm mm |
| Product Net Width | 28 mm mm |
| Gross Weight | 0.133 kg kg |
| Package Level 1 Depth / Length | 147 mm mm |
| Package Level 1 Height | 40 mm mm |
| Package Level 1 Width | 78 mm mm |
| Package Level 1 Units | 1 carton |
Certificates and Declarations
| Declaration of Conformity - CE | 3ADR980140 |
| REACH Date | 20241206 |
| REACH Declaration | 3ADR980139 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| SCIP | d9ad0575-0454-48ec-803e-5210ec8c3695 Germany |
| RoHS Declaration | 3ADR980140 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
Technical
| Function | PROFINET IO RT controller |
| Communication Protocol | PROFINET IO, PROFIsafe, Controller |
| Communication Interface | Serial |
| Number of Hardware Interfaces | Industrial Ethernet 2, Other 0, Parallel 0, RS-232 0, RS-422 0, RS-485 0, Serial TTY 0, USB 0, Wireless 0 |
| Data Transmission Rate | 100000 kbit/s |
| Degree of Protection | IP20 |
Additional Information
| Product Main Type | CM579 |
| Product Name | Distributed Automation PLCs |
External Classifications and Standards
| eClass | 27-24-22-08 |
| ETIM 8 | EC001423 - PLC communication module |
| ETIM 9 | EC001423 - PLC communication module |
| ETIM 10 | EC001423 - PLC communication module |
| UNSPSC | 32151705 |
Environmental
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
