PM572
MPN: 1SAP130200R0200 · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Leaflets |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 1SAP130200R0200 be shipped?
1SAP130200R0200 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SAP130200R0200 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SAP130200R0200 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SAP130200R0200, subject to availability and destination.

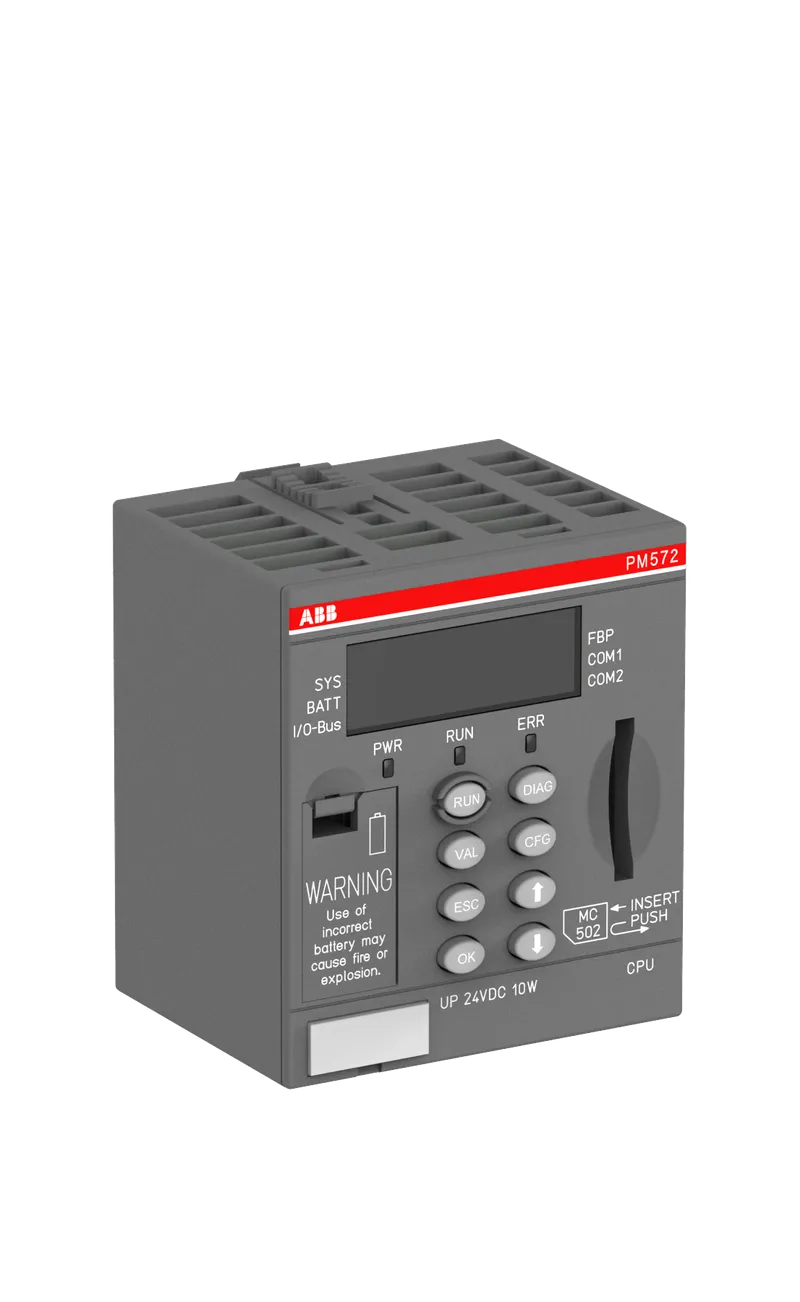

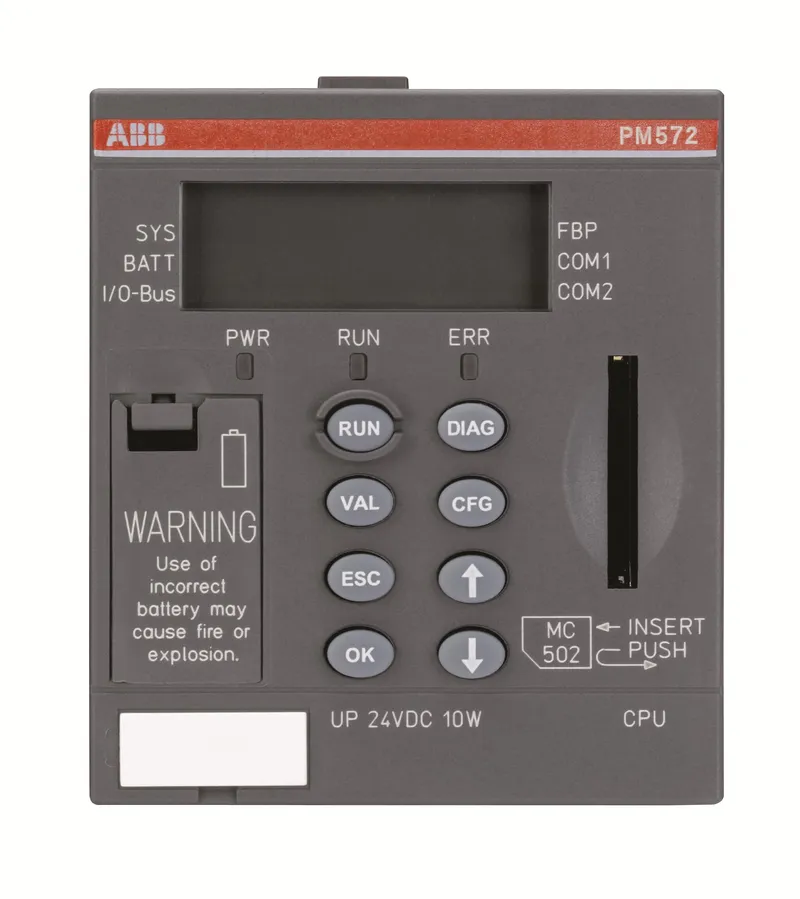

PM572: AC500 Processor module. Memory 128kB. 2x RS232/485. FBP. Display.
Specifications
Additional Information
| ABB Type Designation | PM572 |
| Ambient Air Temperature | Operation 0 ... +60 °C, Storage -40 ... +70 °C |
| CN8 | 85389091 |
| Communication | Serial interfaces for communication and programming |
| Communication Interface | Serial/FiedlBusPlug |
| Communication Speed | Speed for 1000 instructions of Logic = 0.05 0.06 ms, Speed for 1000 instructions of Word = 0.05 0.09 ms, Speed for 1000 instructions of Floating-point = 0.5 0.70 ms |
| Controller Processing Time | 0.00006 ms |
| Country or Territory of Origin | Germany, India |
| CS31-Bus | 1 |
| Customs Tariff Number | 85371091 |
| Degree of Protection | IP20 |
| DESTO EGR | 05940 |
| Display Type | LCD |
| EAN | 4016779711517 |
| eClass | 27-24-22-07 |
| ETIM 10 | EC000236 - PLC CPU-module |
| ETIM 7 | EC000236 - PLC CPU-module |
| ETIM 8 | EC000236 - PLC CPU-module |
| ETIM 9 | EC000236 - PLC CPU-module |
| Frame Size | Undefined |
| Function | Memory 128kB. 2x RS232/485. FBP. Display |
| Gross Weight | 0.158 kg kg |
| I/O Option | CPU with Local IO - on I/O-Bus |
| Invoice Description | Processor module. Memory 128kB. 2x RS232/485. FBP. Display (PM572) |
| Made To Order | No |
| Maximum Number of Analog I/Os | 160 AI, 160 AO local max. 10 extension modules |
| Maximum Number of Digital I/Os | 320 DI, 240 DO/DC local max. 10 extension modules |
| Maximum Operating Altitude Permissible | 2000 m m |
| Maximum Order Quantity | 0 piece |
| Memory Size | 256 kB |
| Memory Size User Data | 128 kB |
| Memory Size User Program | 128 kB |
| Memory Type User Data | RAM |
| Memory Type User Program | Flash EPROM, non-volatile RAM, SD Card |
| Minimum Order Quantity | 1 piece |
| Model Number | Modular |
| Module Function | Processor module |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 mm |
| Mounting Position | Horizontal, Vertical possible with derating |
| Number of Display Lines | 1 |
| Number of Function Keys | 8 |
| Number of Hardware Interfaces | Industrial Ethernet 0, Other 2, Parallel 0, RS-232 0, RS-422 0, RS-485 0, Serial TTY 0, USB 0, Wireless 0 |
| Number of LEDs | 3 |
| Order Multiple | 1 piece |
| Package Level 1 Depth / Length | 84 mm mm |
| Package Level 1 EAN | 4016779711517 |
| Package Level 1 Height | 72 mm mm |
| Package Level 1 Units | 1 carton |
| Package Level 1 Width | 71 mm mm |
| Power Consumption (@Pcons) | 1.200 W W |
| Power Supply | 24 V DC V |
| Primary Voltage | 24 V DC V |
| Product Depth | 72 mm mm |
| Product Main Type | PM572 |
| Product Name | Distributed Automation PLCs |
| Product Net Depth / Length | 62 mm mm |
| Product Net Height | 76 mm mm |
| Product Net Weight | 0.134 kg kg |
| Product Net Width | 67.5 mm mm |
| Product Type | PLC-AC500 |
| Programming Software | Automation Builder |
| Quote Only | No |
| Rated Voltage (Ur) | 24 V DC V |
| Real-time Clock | Yes |
| SCIP | caf65741-c9be-4ee8-b4b5-f03929c1c502 Germany |
| Secondary Current | 0.2 A A |
| Selling Unit of Measure | piece |
| Serial Port 1 Type | RS232 / RS485 configurable, Programing, Modbus Master or slave, ASCII, CS31 Master |
| Serial Port 2 Type | RS232 / RS485 configurable, Programing, Modbus Master or slave, ASCII |
| Short Description | PM572: Processor module |
| Stocked At (Warehouses) | Menden, Germany, Singapore, Singapore, Hangzhou, China, Bairro Santo Antonio, Brazil, Bangalore, India |
| Supply Voltage | 20.4 … 28.8 V DC V |
| UNSPSC | 32151705 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
