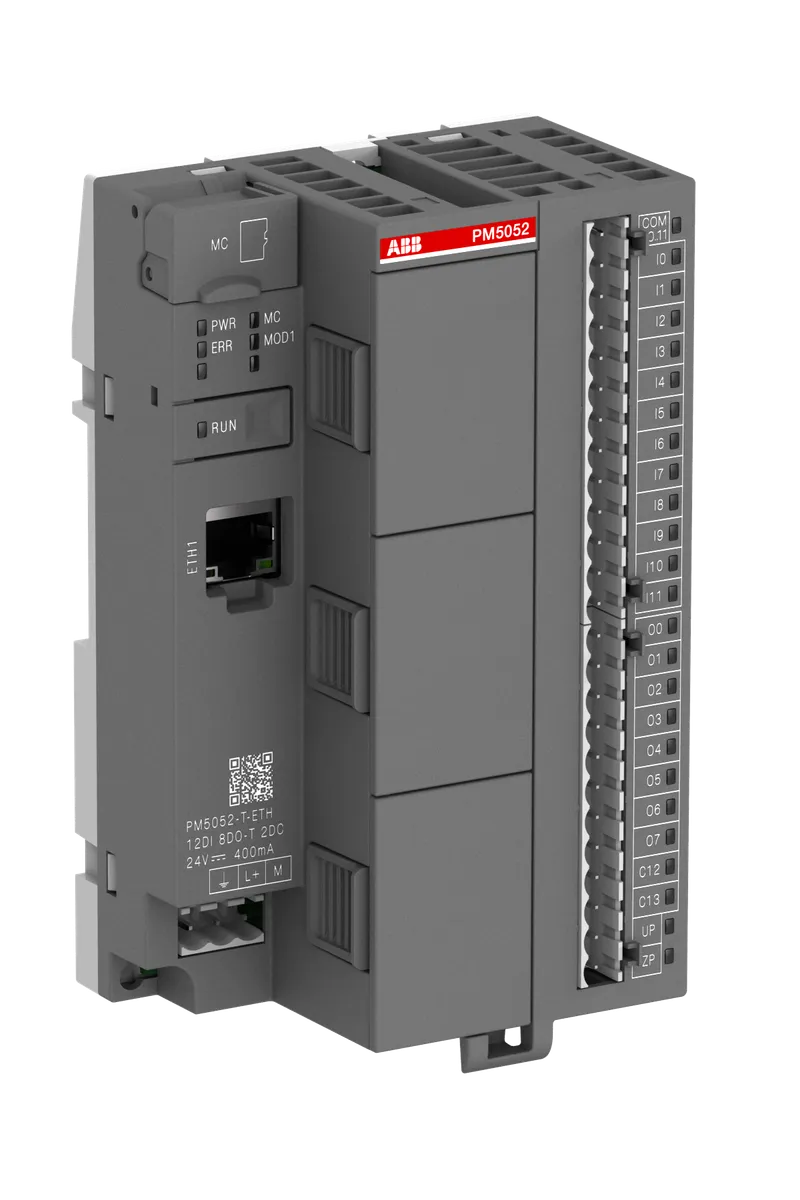

PM5052-T-ETH
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | AC500-eCo CPUs |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.26 kg |
Shipping & availability
When can 1SAP124000R0072 be shipped?
1SAP124000R0072 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SAP124000R0072 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SAP124000R0072 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SAP124000R0072, subject to availability and destination.
PM5052-T-ETH: AC500-eCo Processor module. Memory 4MB. 12 DI 24 VDC. 8DO 24 VDC 0.5A. 2 DC 24 VDC. Ethernet interface. 3 option slots. (CLASSIC) - Replaced by 1SAP124000R0172
Specifications
Ordering
| CN8 | 85371091 |
| Invoice Description | Processor module. Memory 4MB. 12 DI 24 VDC. 8DO 24 VDC 0.5A. 2 DC 24 VDC. Ethernet interface. 3 option slots (PM5052-T-ETH) |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Selling Unit of Measure | piece |
| Replacement Product ID (NEW) | 1SAP124000R0172 |
Dimensions
| Product Net Weight | 0.257 kg kg |
| Product Net Depth / Length | 74 mm mm |
| Product Net Height | 135 mm mm |
| Product Net Width | 82 mm mm |
| Gross Weight | 0.299 kg kg |
| Package Level 1 Depth / Length | 100 mm mm |
| Package Level 1 Height | 95 mm mm |
| Package Level 1 Width | 175 mm mm |
| Package Level 1 Units | 1 carton |
Certificates and Declarations
| Declaration of Conformity - CE | 3ADR980147 |
| REACH Date | 20241206 |
| REACH Declaration | 3ADR980139 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| SCIP | 7d8f1700-ec04-40de-a990-f3378a32b09f Germany |
| RoHS Declaration | 3ADR980147 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
Technical
| Function | Memory 4MB. 12 DI 24 VDC. 8DO 24 VDC 0.5A. 2 DC 24 VDC. Ethernet interface. 3 option slots |
| Number of Hardware Interfaces | Industrial Ethernet 1, Other 0, Parallel 0, RS-232 0, RS-422 0, RS-485 0, Serial TTY 0, USB 0, Wireless 0 |
| Memory Size | 7032 kB |
| Memory Type User Data | RAM |
| Controller Processing Time | 0.00002 ms |
| Number of Digital Inputs | 12 |
| Number of Digital Outputs | 8 |
| Number of Digital Configurable I/Os | 2 |
| Input Voltage Type | DC |
| Degree of Protection | IP20 |
| Rated Voltage (Ur) | 24 V DC V |
| Supply Voltage | 20.4 … 28.8 V DC V |
Additional Information
| Product Main Type | PM5052 |
| Product Name | Distributed Automation PLCs |
External Classifications and Standards
| eClass | 27-24-22-07 |
| ETIM 8 | EC000236 - PLC CPU-module |
| ETIM 9 | EC000236 - PLC CPU-module |
| ETIM 10 | EC000236 - PLC CPU-module |
| UNSPSC | 32151705 |
Environmental
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
