Available on request
1HP,3450RPM,1PH,60HZ,56C,3524L,TEFC
MPN: VFSWDL3509 · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Food Safe single phase motors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can VFSWDL3509 be shipped?
VFSWDL3509 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VFSWDL3509 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VFSWDL3509 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VFSWDL3509, subject to availability and destination.
Washdown Motor 1 Hp 115 V (VFSWDL3509)
Specifications
Ordering
| Catalog Number | VFSWDL3509 |
| Brand / Label | Baldor-Reliance |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015220 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Duty Time | 60 Min |
| Efficiency Level | Not Regulated / Exempt |
| Insulation Class | F |
| NEMA Design Code | N |
| Number of Phases | 1-phase |
| Number of Poles | 2P |
| Number of Speeds | Single Speed |
| Power Factor | 80 % |
| Rated Efficiency | 68 % |
| Service Factor | 1.25 |
| Type of Duty | Continuous |
| Starting of Motor | Direct On Line |
| Synchronous Speed (vsyn) | 3600 r/min |
| Output Power | 1 Hp |
Mechanical
| Drive End Flange Type | C-Face |
| Enclosure Type | TEFC |
| Frame Material | Stainless Steel |
| Motor Frame Size | 56C |
| Motor Base Type | No Mounting |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 13.123 in |
| Product Net Weight | 41 lb |
| Product Net Width | 13.75 in |
| Dimension Diagram | 35LYE4628 |
Certificates and Declarations
| Certification Agency | CURUS, WEEE |
| IDEA Granular Category Code (IGCC) | 1329 >> Single phase motor AC |
| ETIM 7 | EC001851 - Electric motor |
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
More ABB parts

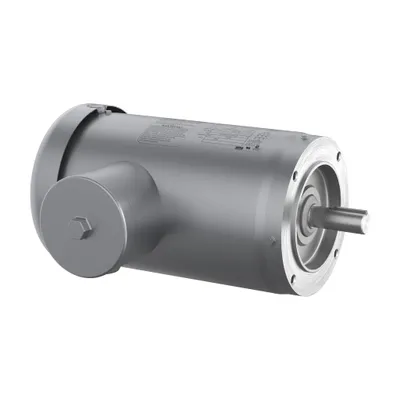

Available on request1HP,1770RPM,3PH,60HZ,143TC,3522M,TEMPN: VFSFWDM3546T-E · ABB
Price on request
Request a quote
Available on request.5HP,3480RPM,1PH,60HZ,56C,3516L,TEFMPN: VFSWDL3503 · ABB
Price on request
Request a quote
Available on request.5HP,1750RPM,1PH,60HZ,56C,3520L,TEFMPN: VFSWDL3504 · ABB
Price on request
Request a quote
Available on request.75HP,3450RPM,1PH,60HZ,56C,3516L,TEMPN: VFSWDL3506 · ABB
Price on request
Request a quote
Available on request1HP,1725RPM,1PH,60HZ,56C,3538L,TEFCMPN: VFSWDL3510 · ABB
Price on request
Request a quote
Available on request.5HP,3500RPM,3PH,60HZ,56C,3516M,TENMPN: VFSWDM3537-E · ABB
Price on request
Request a quote
Available on request.5HP,1770RPM,3PH,60HZ,56C,3512M,TENMPN: VFSWDM3538-5E · ABB
Price on request
Request a quote

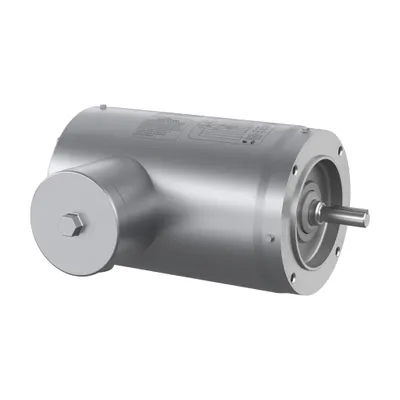

Available on request.5HP,1770RPM,3PH,60HZ,56C,3512M,TENMPN: VFSWDM3538-E · ABB
