Available on request
ABB EM3546T-BG – 1HP,1760RPM,3PH,60HZ,143T,3520M,TEF
MPN: EM3546T-BG · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Shaft grounded |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can EM3546T-BG be shipped?
EM3546T-BG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up EM3546T-BG in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for EM3546T-BG and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EM3546T-BG, subject to availability and destination.
HVAC Motors 1 Hp 230 V (EM3546T-BG)
Specifications
Ordering
| Catalog Number | EM3546T-BG |
| Brand / Label | Baldor-Reliance |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015100 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Efficiency Level | Premium Efficiency (NEMA 12-12) |
| Insulation Class | H |
| NEMA Design Code | B |
| Number of Phases | 3-phase |
| Number of Poles | 4P |
| Number of Speeds | Single Speed |
| Power Factor | 71 % |
| Rated Efficiency | 85.50 % |
| Service Factor | 1.15 |
| Type of Duty | Continuous |
| Starting of Motor | Direct On Line |
| Synchronous Speed (vsyn) | 1800 r/min |
| Output Power | 1 Hp |
Mechanical
| Drive End Flange Type | Standard |
| Enclosure Type | TEFC |
| Frame Material | Steel |
| Motor Frame Size | 143T |
| Motor Base Type | Rigid |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 13.123 in |
| Product Net Weight | 38 lb |
| Product Net Width | 13.75 in |
| Dimension Diagram | 35LYE2208 |
Certificates and Declarations
| Certification Agency | CSA, CSA EEV, UR |
| IDEA Granular Category Code (IGCC) | 1318 >> Heating and cooling system motor AC |
| ETIM 7 | EC001851 - Electric motor |
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
More ABB parts
Available on request1HP,1774RPM,3PH,60HZ,143T,3522M,TEFMPN: EM3546T-5 · ABB
Price on request
Request a quote

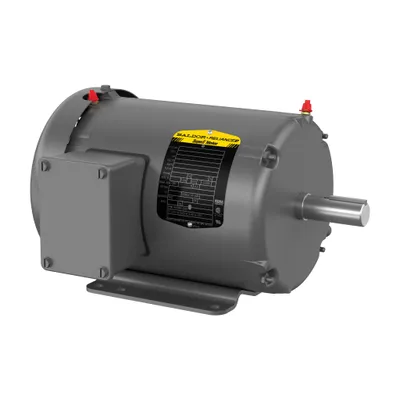

Available on request1/.75KWHP,1470RPM,3PH,50HZ,143T,352MPN: EM3546T-57 · ABB
Price on request
Request a quote
Available on request1HP,1774RPM,3PH,60HZ,143T,3522M,TEFMPN: EM3546T-5G · ABB
Price on request
Request a quote
Available on request1HP,1775RPM,3PH,60HZ,143T,3520M,TEFMPN: EM3546T-8 · ABB
Price on request
Request a quote
Available on request1HP,1760RPM,3PH,60HZ,143T,3520M,TEFMPN: EM3546T-G · ABB
Price on request
Request a quote
Available on request1.5HP,3500RPM,3PH,60HZ,56,3520M,TEFMPN: EM3550 · ABB
Price on request
Request a quote

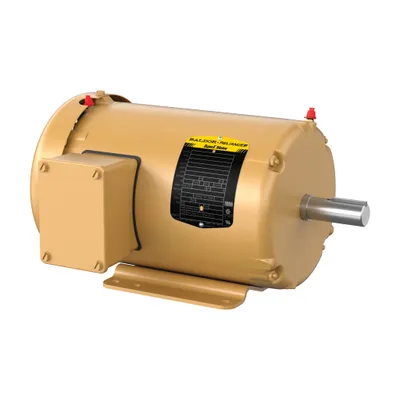

Available on request1.5HP,3500RPM,3PH,60HZ,3520M,143T,NMPN: EM3550T · ABB
