Available on request
1/.75KWHP,1770//1470RPM,3PH,60//50H
MPN: GNEM3546 · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Three phase enclosed motor |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can GNEM3546 be shipped?
GNEM3546 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up GNEM3546 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for GNEM3546 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GNEM3546, subject to availability and destination.

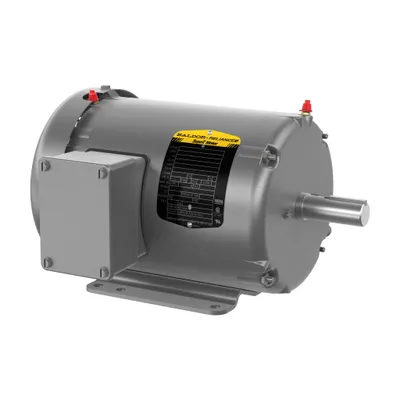

General Purpose Motor .75 kW 190 V (GNEM3546)
Specifications
Ordering
| Catalog Number | GNEM3546 |
| Brand / Label | Baldor-Reliance® |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015100 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Efficiency Level | IE3, Premium Efficiency (NEMA 12-12) |
| Insulation Class | F |
| NEMA Design Code | B |
| Number of Phases | 3-phase |
| Number of Poles | 4P |
| Number of Speeds | single_speed |
| Power Factor | 66 % |
| Rated Efficiency | 85.5 % |
| Service Factor | 1.15 |
| Type of Duty | Continuous |
| Starting of Motor | Direct on line |
| Synchronous Speed (vsyn) | 1500 r/min, 1800 r/min |
| Output Power | .75 kW, 1 Hp kW |
Mechanical
| Drive End Flange Type | Standard |
| Enclosure Type | TEFC |
| Frame Material | Steel |
| Motor Frame Size | 56 |
| Motor Base Type | Foot Mounted |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 0 in |
| Product Net Weight | 37 lb |
| Product Net Width | 0 in |
Certificates and Declarations
| Certification Agency | CE, CURUSEEV, IE3, NEMA_PREMIUM, UKCA, WEEE |
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
More ABB parts

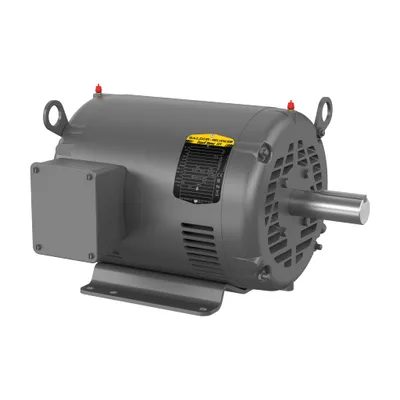

Available on request7.5HP,1770//1460RPM,3PH,60//50HZ,21MPN: GNEM3311T · ABB
Price on request
Request a quote
Available on request7.5HP,1770//1460RPM,3PH,60//50HZ,21MPN: GNEM3311T-G · ABB
Price on request
Request a quote
Available on request10HP//7.5KW,1770//1470 1/MINRPM,3PHMPN: GNEM3313T · ABB
Price on request
Request a quote
Available on request10HP//7.5KW,1770//1470 1/MINRPM,3PHMPN: GNEM3313T-G · ABB
Price on request
Request a quote
Available on request1/.75KWHP,1770//1470RPM,3PH,60//50HMPN: GNEM3546-G · ABB
Price on request
Request a quote

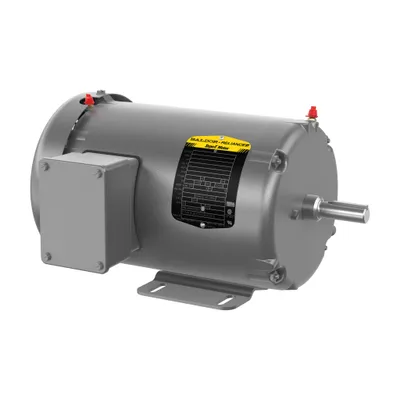

Available on request1/.75KWHP,1770//1470RPM,3PH,60//50HMPN: GNEM3546T · ABB
Price on request
Request a quote
Available on request1/.75KWHP,1770//1470RPM,3PH,60//50HMPN: GNEM3546T-G · ABB
Price on request
Request a quote

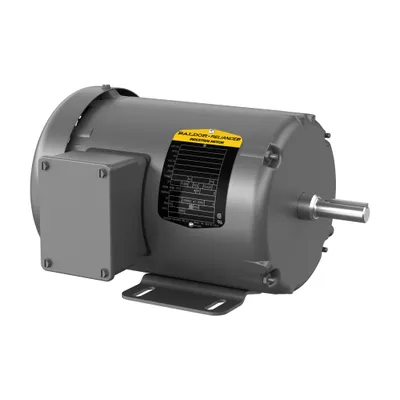

Available on request1.5/1.1KWHP,1755//1445RPM,3PH,60//5MPN: GNEM3554 · ABB
