Available on request
1.5HP,3500RPM,3PH,60HZ,143T,3520M,O
MPN: SPM3120T · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Three phase open motors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can SPM3120T be shipped?
SPM3120T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up SPM3120T in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for SPM3120T and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SPM3120T, subject to availability and destination.

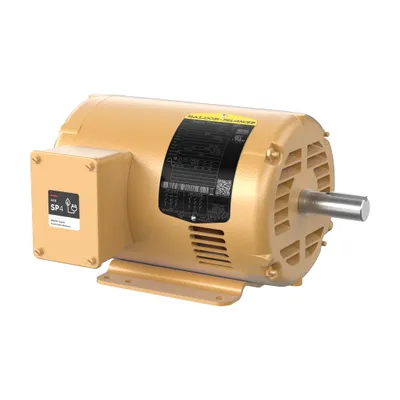

General Purpose Motor 1.5 Hp 230 V (SPM3120T)
Specifications
Ordering
| Catalog Number | SPM3120T |
| Brand / Label | Baldor-Reliance® |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015220 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Efficiency Level | IE4 |
| Insulation Class | F |
| NEMA Design Code | B |
| Number of Phases | 3-phase |
| Number of Poles | 2P |
| Number of Speeds | single_speed |
| Power Factor | 81 % |
| Rated Efficiency | 85.50 % |
| Service Factor | 1.15 |
| Type of Duty | Continuous |
| Starting of Motor | Direct on line |
| Synchronous Speed (vsyn) | 3600 r/min |
| Output Power | 1.5 Hp |
Mechanical
| Drive End Flange Type | Standard |
| Enclosure Type | OPSB |
| Frame Material | Steel |
| Motor Frame Size | 143T |
| Motor Base Type | Foot Mounted |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 0 in |
| Product Net Weight | 38 lb |
| Product Net Width | 0 in |
Certificates and Declarations
| Certification Agency | CURUSEEV, NEMA_PREMIUM, WEEE |
