Available on request

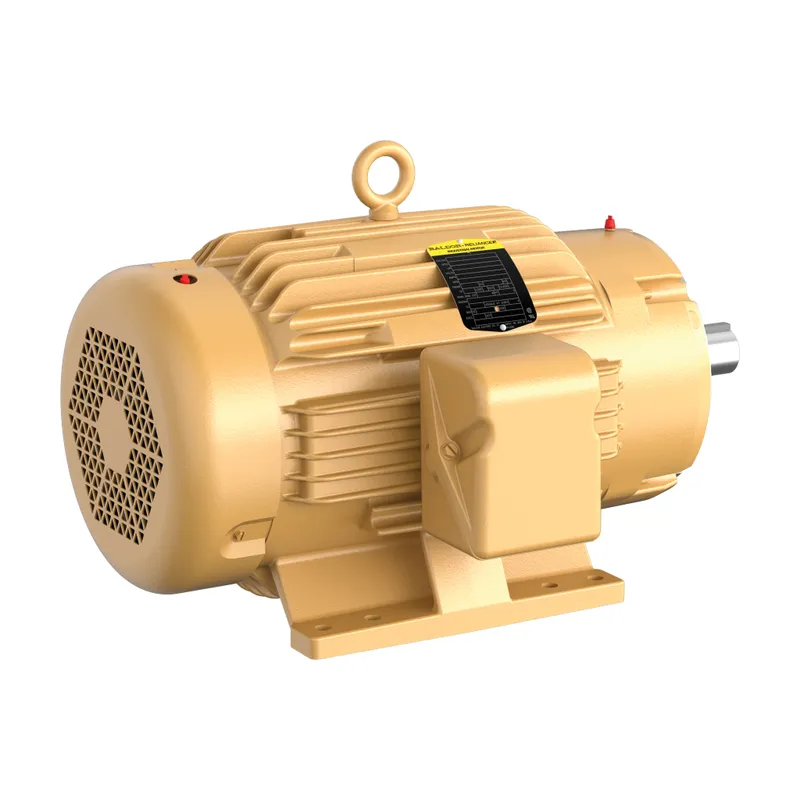

15HP,1460RPM,3PH,50HZ,254TC,0760M,T
MPN: CM2333T-58 · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Three phase enclosed motor |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can CM2333T-58 be shipped?
CM2333T-58 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CM2333T-58 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CM2333T-58 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CM2333T-58, subject to availability and destination.
General Purpose Motor 15 Hp 380 V (CM2333T-58)
Specifications
Ordering
| Catalog Number | CM2333T-58 |
| Brand / Label | Baldor-Reliance |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015220 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Efficiency Level | IE2 |
| Insulation Class | F |
| NEMA Design Code | A A |
| Number of Phases | 3-phase |
| Number of Poles | 4P |
| Number of Speeds | Single Speed |
| Power Factor | 82 % |
| Rated Efficiency | 90.20 % |
| Service Factor | 1.00 |
| Type of Duty | Continuous |
| Starting of Motor | Y-Start/Delta Run |
| Synchronous Speed (vsyn) | 1500 r/min |
| Output Power | 15 Hp |
Mechanical
| Drive End Flange Type | C-Face |
| Enclosure Type | TEFC |
| Frame Material | Iron |
| Motor Frame Size | 254TC |
| Motor Base Type | Foot Mounted |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 17.625 in |
| Product Net Weight | 236 lb |
| Product Net Width | 18.125 in |
| Dimension Diagram | 07LYK349 |
Certificates and Declarations
| Certification Agency | CSA, UR |
| ETIM 7 | EC001851 - Electric motor |
