Available on request
15HP//11KW,1180//980RPM,3PH,60//50H
MPN: GNEM2524T · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Three phase open motors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can GNEM2524T be shipped?
GNEM2524T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up GNEM2524T in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for GNEM2524T and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GNEM2524T, subject to availability and destination.
General Purpose Motor 11 kW 190 V (GNEM2524T)
Specifications
Ordering
| Catalog Number | GNEM2524T |
| Brand / Label | Baldor-Reliance® |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015220 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Efficiency Level | IE3, Premium Efficiency (NEMA 12-12) |
| Insulation Class | F |
| NEMA Design Code | A A |
| Number of Phases | 3-phase |
| Number of Poles | 6P |
| Number of Speeds | single_speed |
| Power Factor | 75 % |
| Rated Efficiency | 91.7 % |
| Service Factor | 1.15 |
| Type of Duty | Continuous |
| Starting of Motor | Direct on line |
| Synchronous Speed (vsyn) | 1000 r/min, 1200 r/min |
| Output Power | 11 kW, 15 Hp kW |
Mechanical
| Drive End Flange Type | Standard |
| Enclosure Type | OPSB |
| Frame Material | Steel |
| Motor Frame Size | 284T |
| Motor Base Type | Foot Mounted |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 0 in |
| Product Net Weight | 369 lb |
| Product Net Width | 0 in |
Certificates and Declarations
| Certification Agency | C UR US, CE, IE3, NEMA_PREMIUM, UKCA, WEEE |
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
More ABB parts
Available on request15HP//11KW,1770//1470 1/MINRPM,3PH,MPN: GNEM2513T-G · ABB
Price on request
Request a quote
Available on request20HP//15KW,1775//1470RPM,3PH,60//50MPN: GNEM2515T · ABB
Price on request
Request a quote
Available on request20HP//15KW,1775//1465RPM,3PH,60//50MPN: GNEM2515T-CI · ABB
Price on request
Request a quote
Available on request20HP//15KW,1775//1470RPM,3PH,60//50MPN: GNEM2515T-G · ABB
Price on request
Request a quote
Available on request15HP//11KW,1180//980RPM,3PH,60//50HMPN: GNEM2524T-G · ABB
Price on request
Request a quote
Available on request20HP//15KW,1180//980RPM,3PH,60//50HMPN: GNEM2528T · ABB
Price on request
Request a quote
Available on request20HP//15KW,1180//980RPM,3PH,60//50HMPN: GNEM2528T-G · ABB
Price on request
Request a quote

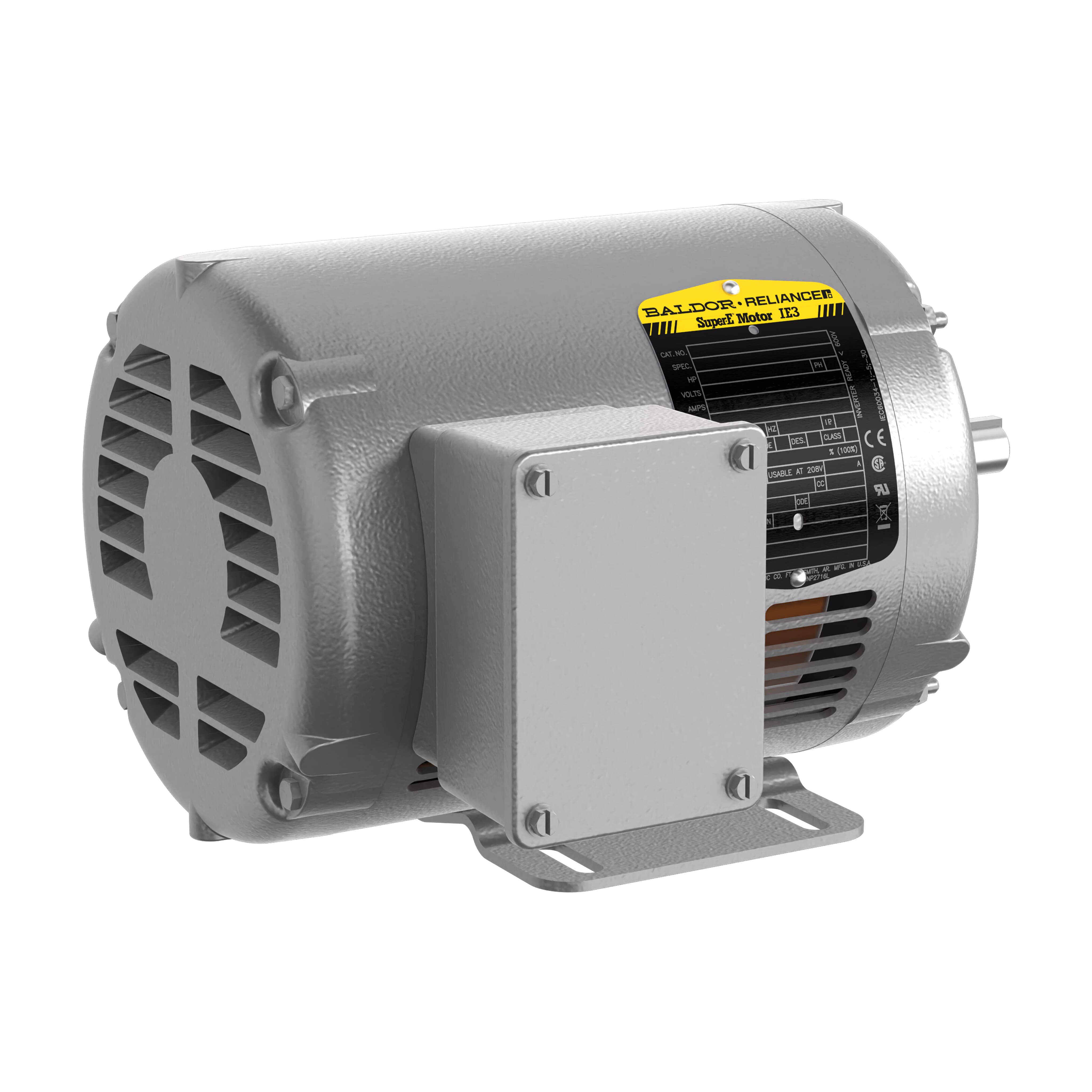

Available on request1//.75KWHP,1770//1470RPM,3PH,60//50MPN: GNEM31116 · ABB
