Available on request
1.5HP//1.1KW,1170//960RPM,3PH,60//5
MPN: GNEM3207T-G · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Shaft grounded |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can GNEM3207T-G be shipped?
GNEM3207T-G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up GNEM3207T-G in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for GNEM3207T-G and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GNEM3207T-G, subject to availability and destination.

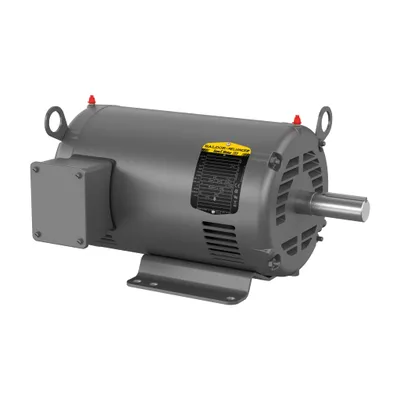

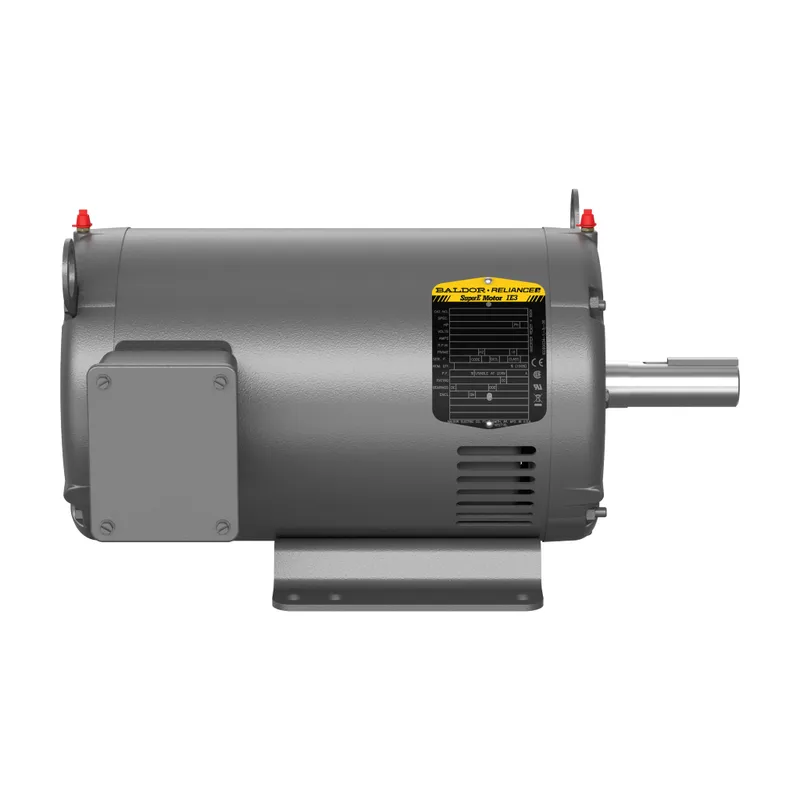

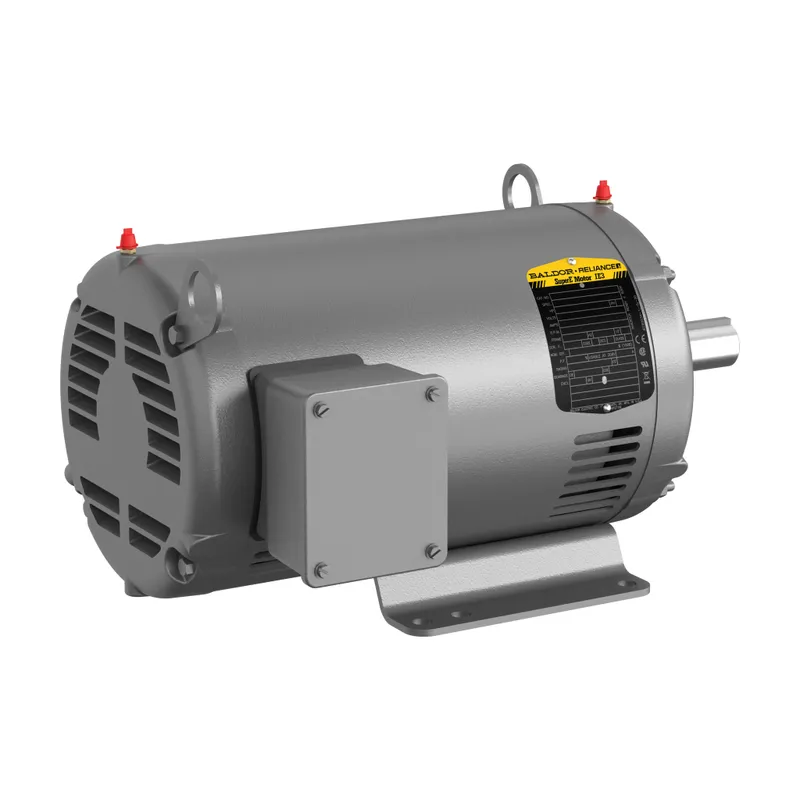

Shaft Ground Motors 1.1 kW 190 V (GNEM3207T-G)
Specifications
Ordering
| Catalog Number | GNEM3207T-G G |
| Brand / Label | Baldor-Reliance® |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015220 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Efficiency Level | IE3, Premium Efficiency (NEMA 12-12) |
| Insulation Class | F |
| NEMA Design Code | B |
| Number of Phases | 3-phase |
| Number of Poles | 6P |
| Number of Speeds | single_speed |
| Power Factor | 64 % |
| Rated Efficiency | 86.5 % |
| Service Factor | 1.15 |
| Type of Duty | Continuous |
| Starting of Motor | Direct on line |
| Synchronous Speed (vsyn) | 1000 r/min, 1200 r/min |
| Output Power | 1.1 kW, 1.5 Hp kW |
Mechanical
| Drive End Flange Type | Standard |
| Enclosure Type | OPSB |
| Frame Material | Steel |
| Motor Frame Size | 182T |
| Motor Base Type | Foot Mounted |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 0 in |
| Product Net Weight | 68 lb |
| Product Net Width | 0 in |
Certificates and Declarations
| Certification Agency | CE, CURUSEEV, IE3, NEMA_PREMIUM, UKCA, WEEE |
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
More ABB parts
Available on request1/.75KWHP,1770//1470RPM,3PH,60//50HMPN: GNEM3116T-G · ABB
Price on request
Request a quote
Available on request1.5/1.1KWHP,1755//1445RPM,3PH,60//5MPN: GNEM3154T · ABB
Price on request
Request a quote
Available on request1HP//.75KW,1170//965RPM,3PH,60//50HMPN: GNEM3156T-G · ABB
Price on request
Request a quote
Available on request1.5HP/1.1KW,1170//960RPM,3PH,60//50MPN: GNEM3207T · ABB
Price on request
Request a quote

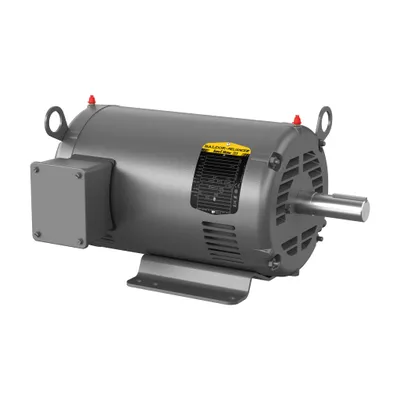

Available on request3HP,1760//1460RPM,3PH,60//50HZ,182TMPN: GNEM3211T-G · ABB
